| Price | USD 110 PIECE/PIECES |
| MOQ | 10 |
| Delivery Time | 3-5 DAYS |
| Brand | DWYER |
| Place of Origin | USA |
| Certification | CE |
| Model Number | 616kd-b-06 |
| Packaging Details | CARTON |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
| Place of Origin | USA | Packaging Details | CARTON |
| Stability: | ±1% FS/year. | Model Number | 616kd-b-06 |
| Pressure Limits: | 2 psig (ranges 5" w.c. or lower) | Supply Ability | 1000 |
| Certification | CE | Brand Name | DWYER |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Price | USD 110 PIECE/PIECES |
| Delivery Time | 3-5 DAYS | Minimum Order Quantity | 10 |
| Compensated Temperature Range: | 20 to 122°F (-6.67 to 50°C) | warranty | 1 year |
| Accuracy:616KD-A: | ±0.25% FS | Temperature Limits: | 0 to 140°F |

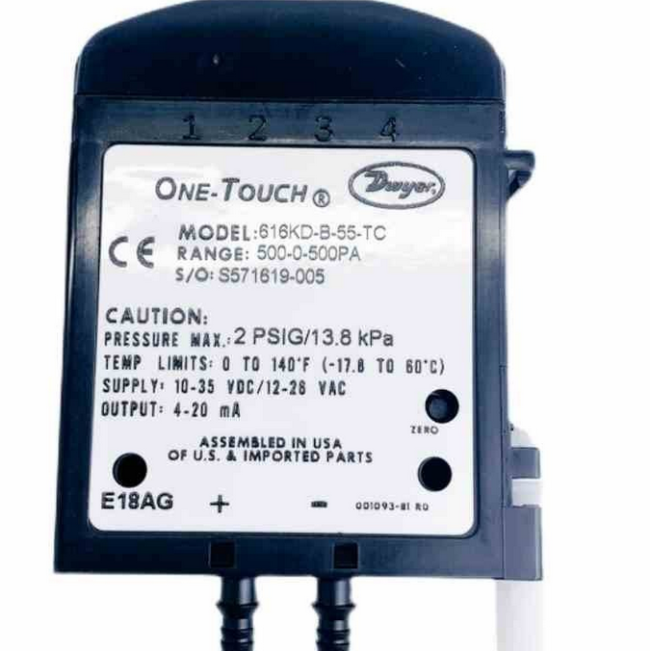

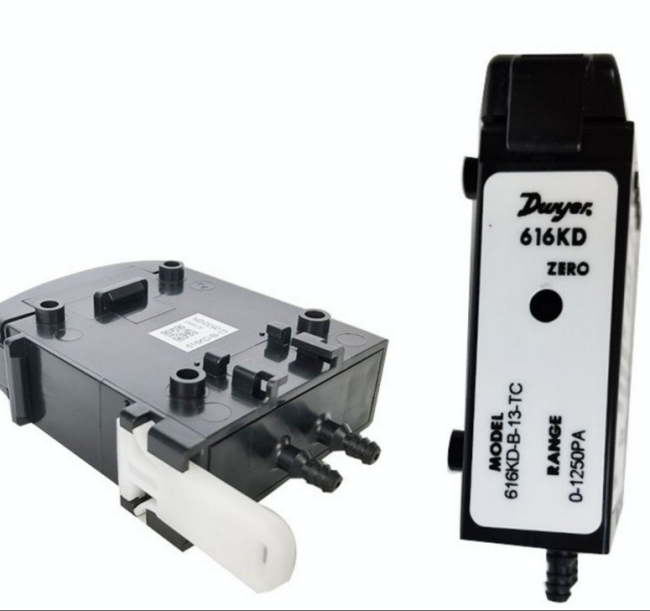

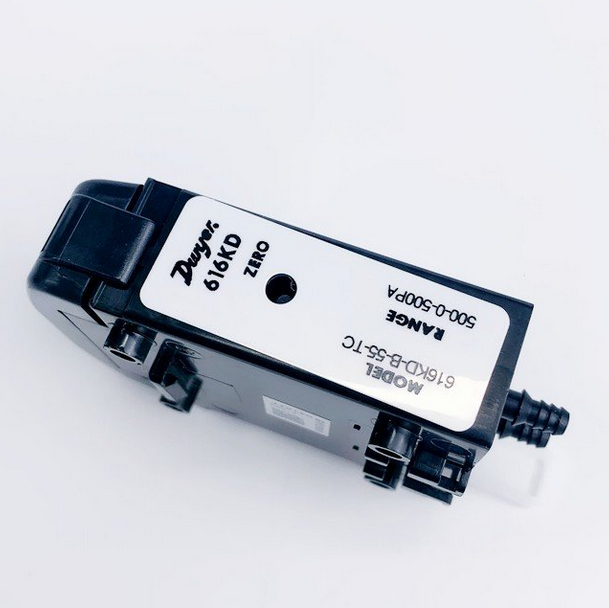

Dwyer 0 to 140°F 4 to 20 mA ±0.25% FS pressure level transmitter 616kd-b-06 100% ORIGINAL
The Series 616KD Differential Pressure Transmitters with One-Touch® Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.
NIST CALIBRATION available in Product Configurator.
Specification
| Service | Air and non-combustible, compatible gases |
| Wetted Materials | Consult factory |
| Accuracy | 616KD-A: ±0.25% FS; 616KD-B: ±1% FS, 616KD: ±2% FS |
| Stability | ±1% FS/year |
| Temperature Limits | 0 to 140°F (-17.8 to 60°C). |
| Compensated Temperature Range | 20 to 122°F (-6.67 to 50°C) |
APPLICATIONS
• Air handlers
• Duct pressure
• Variable air volume
• Filter monitoring
DESCRIPTION
The Series 616KD Differential Pressure Transmitters ±0.25, ±1 or 2% Accuracy are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.
INSTALLATION
1. Location Select a clean, dry mounting location free from excess vibration where the temperature will remain between 20 and 122°F (-6.7 and 50°C). The tubing supplying pressure to the instrument can be practically any length required, but long lengths will increase response time slightly.
2. Position A vertical position, with pressure connections pointing down, is recommended. That is the position in which all standard models are calibrated at the factory. Consult factory for other position orientations.
3. Pressure Connections Two integral barbed tubing connections are provided. They are dual-sized to fit both 1/8 and 3/16˝ (3.12 and 4.76 mm) I.D. tubing. Be sure the pressure rating of the tubing exceeds that of the operating ranges.
