600VAC 10A Heavy Duty Limit Switch Side Rotary Silver Plated

Price	USD$148/pc
MOQ	1
Delivery Time	3-5 work days
Brand	honeywell
Place of Origin	USA
Certification	ccc
Model Number	LSA1A
Packaging Details	original packing
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	1000/pieces per months

Product Details

Product Specification

Operating Temperature	-20 to 121 °C	Place of Origin	USA
Warranty	1 year	Packaging Details	original packing
Current Rating	10 A	Material	Zinc Die-Cast (Housing)
Model Number	LSA1A	Supply Ability	1000/pieces per months
Certification	ccc	Brand Name	honeywell
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Price	USD$148/pc
Delivery Time	3-5 work days	IP Rating	IP65 ; IP66 ; IP67
Minimum Order Quantity	1	Head Type	Side Rotary Head

Product Description

High quality Honeywell HDLS Series Heavy Duty Limit Switch LSA1A 600VAC, 10A

Introduction

Specification

Rated operational current (Ie)	1.2 A, 0.1 A
Rated thermal current	10 A, 2.5 A
Rated insulation voltage	600 V
Pollution degree	3
Certifications	UL, CE, CSA, CCC
Housing type	HDLS Plug-in, HDLS Non-Plug-in

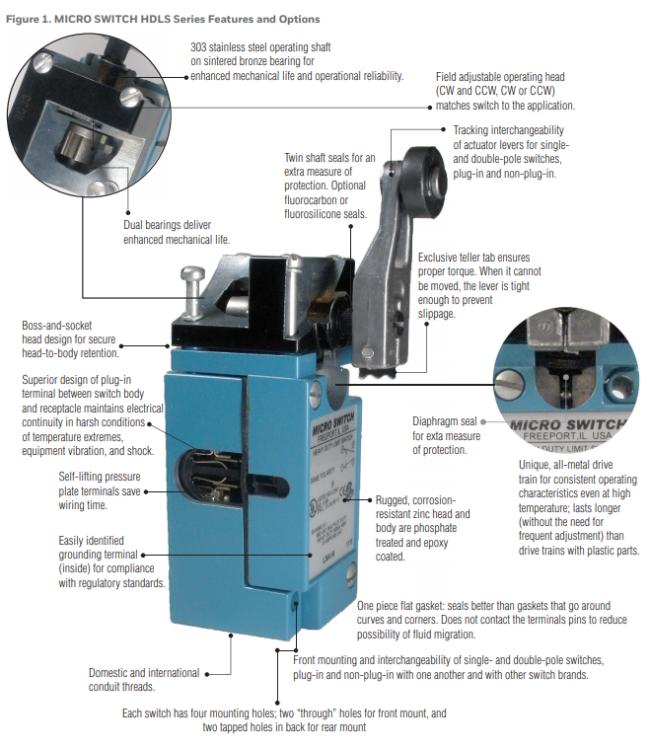

Features

NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 and IP65/66/67 environmental sealing

• NEMA/IP sealing features twin shaft seals for an extra measure of protection

• Rugged, corrosion-resistant zinc head and body are phosphate treated and epoxy coated

• Diaphragm seal between head and body provides an extra measure of protection

• Multiple connectivity options for international applications

• Fluorosilicone seals available for low temperature applications, and fluorocarbon seals available for chemically harsh environments and higher temperature applications

• Secure head-to-body retention with the head in any one of four positions 90° apar

t • Self-lifting pressure plate terminals saves wiring time

• Wide variety of actuators, switch options, and head styles

• Rotary actuated heads are field adjustable for CW actuation, CCW actuation, or both

• Silver or gold-plated contacts

• Plug-in and non plug-in bodies have identical operating characteristics and are dimensionally interchangeable

Performance characteristic

Honeywell’s MICRO SWITCH heavy-duty limit switches’ modular construction allows for a wide variety of actuator styles, operating heads, and electrical circuitry options. The plug-in versions greatly reduce downtime on production lines with high actuation rates as replacement of the switch is accomplished in seconds. The base receptacle contains all the wiring and conduit connection while the switching component with operating head easily assembles to the base and is attached with two screws. They are ideal for many applications with demanding indoor and/or outdoor environments, where they may be subjected to shock or vibration from equipment, temperature extremes, dust, splashing water, coolant, and/or hose-directed water.

Construction
