IP66 Digital Pressure Gauge Aluminum Housing DPG-105 NEMA 4X Electronic Pressure Gauge

Price	$168-$330/PCS
MOQ	1
Delivery Time	14 work days
Brand	dwyer
Place of Origin	USA
Certification	CCC CE ISO
Model Number	DPG-006
Packaging Details	100% original package
Payment Terms	L/C, D/P, T/T, Western Union
Supply Ability	3000Piece/Pieces per Month

Product Details

Product Specification

Place of Origin	USA	Warranty	1 year
Packaging Details	100% original package	Model Number	DPG-006
Supply Ability	3000Piece/Pieces per Month	Certification	CCC CE ISO
Brand Name	dwyer	Payment Terms	L/C, D/P, T/T, Western Union
Price	$168-$330/PCS	Delivery Time	14 work days
Minimum Order Quantity	1	Enclosure Rating:	Designed to meet NEMA 4/4X (IP66
Accuracy:	DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C)	Pressure Limit:	2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range
Power Requirements:	(2) AAA alkaline batteries, included, user replaceable	Wetted Materials:	Type 316L SS.

Product Description

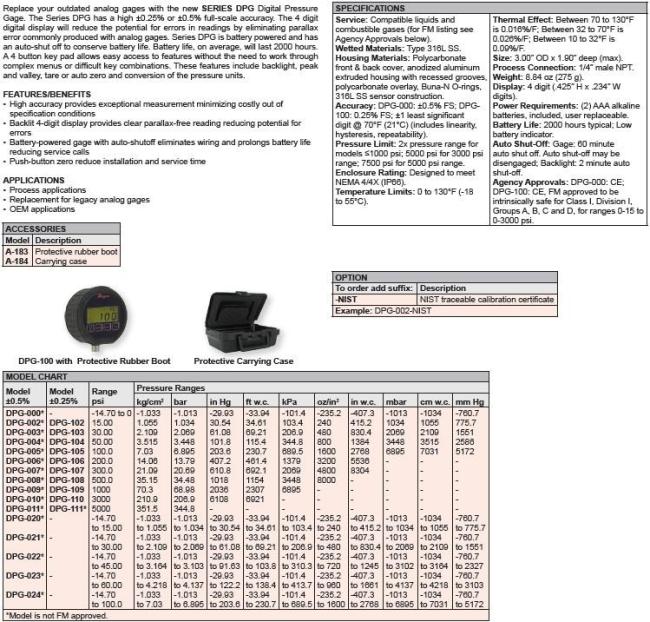

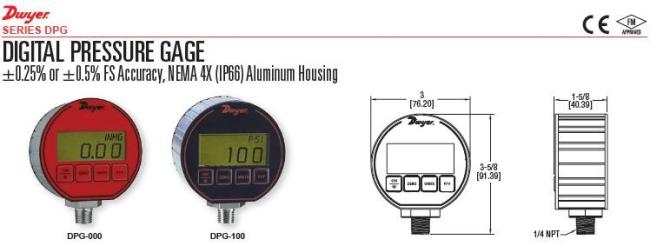

SERIES DPG DIGITAL PRESSURE GAGE

±0.25% or ±0.5% F.S. Accuracy, NEMA 4X (IP66) Aluminum Housing

Replace your outdated analog gages with the new Series DPG Digital Pressure Gage. The Series DPG has a high ±0.25% or ±0.5% full-scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.

Model	Description
DPG-000	Digital pressure gage, selectable engineering units: -14.70-0 psi, -1.033 kg/cm², -1.013 bar, -29.93" Hg, -33.94 ft w.c., -101.4 kPa, -235.2 oz/in², -407.3" w.c., -1013 mbar, -1034 cm w.c., -760.7 mm Hg.
DPG-002	Digital pressure gage, selectable engineering units: 15.00 psi, 1.055 kg/cm², 1.034 bar, 30.54" Hg, 34.61 ft w.c., 103.4 kPa, 240 oz/in², 415.2" w.c., 1034 mbar, 1055 cm w.c., 775.7 mm Hg.
DPG-003	Digital pressure gage, selectable engineering units: 30.00 psi, 2.109 kg/cm², 2.069 bar, 61.08" Hg, 69.21 ft w.c., 206.9 kPa, 480 oz/in², 830.4" w.c., 2069 mbar, 2109 cm w.c., 1551 mm Hg.
DPG-004	Digital pressure gage, selectable engineering units: 50.00 psi, 3.515 kg/cm², 3.448 bar, 101.8" Hg, 115.4 ft w.c., 344.8 kPa, 800 oz/in², 1384" w.c., 3448 mbar, 3515 cm w.c., 2586 mm Hg.
DPG-005	Digital pressure gage, selectable engineering units: 100.0 psi, 7.03 kg/cm², 6.895 bar, 203.6" Hg, 230.7 ft w.c., 689.5 kPa, 1600 oz/in², 2768" w.c., 6895 mbar, 7031 cm w.c., 5172 mm Hg.
DPG-006	Digital pressure gage, selectable engineering units: 200.0 psi, 14.06 kg/cm², 13.79 bar, 407.2" Hg, 461.4 ft w.c., 1379 kPa, 3200 oz/in², 5536" w.c.
DPG-007	Digital pressure gage, selectable engineering units: 300.0 psi, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 2069 kPa, 4800 oz/in², 8304" w.c.
DPG-008	Digital pressure gage, selectable engineering units: 500.0 psi, 35.15 kg/cm², 34.48 bar, 1018" Hg, 1154 ft w.c., 3448 kPa, 8000 oz/in².
DPG-009	Digital pressure gage, selectable engineering units: 1000 psi, 70.3 kg/cm², 68.98 bar, 2036" Hg, 2307 ft w.c., 6895 kPa.
DPG-010	Digital pressure gage, selectable engineering units: 3000 psi, 210.9 kg/cm², 206.9 bar, 6108" Hg, 6921 ft w.c.
DPG-011	Digital pressure gage, selectable engineering units: 5000 psi, 351.5 kg/cm², 344.8 bar.
DPG-020	Digital pressure gage, range 30" Hg-0-15 psi.
DPG-102	Digital pressure gage, selectable engineering units: 15.00 psi, 1.055 kg/cm², 1.034 bar, 30.54" Hg, 34.61 ft w.c., 103.4 kPa, 240 oz/in², 415.2" w.c., 1034 mbar, 1055 cm w.c., 775.7 mm Hg, CE and FM approved.
DPG-103	Digital pressure gage, selectable engineering units: 30.00 psi, 2.109 kg/cm², 2.069 bar, 61.08" Hg, 69.21 ft w.c., 206.9 kPa, 480 oz/in², 830.4" w.c., 2069 mbar, 2109 cm w.c., 1551 mm Hg, CE and FM approved.
DPG-104	Digital pressure gage, selectable engineering units: 50.00 psi, 3.515 kg/cm², 3.448 bar, 101.8" Hg, 115.4 ft w.c., 344.8 kPa, 800 oz/in², 1384" w.c., 3448 mbar, 3515 cm w.c., 2586 mm Hg, CE and FM approved.
DPG-105	Digital pressure gage, selectable engineering units: 100.0 psi, 7.03 kg/cm², 6.895 bar, 203.6" Hg, 230.7 ft w.c., 689.5 kPa, 1600 oz/in², 2768" w.c., 6895 mbar, 7031 cm w.c., 5172 mm Hg, CE and FM approved.
DPG-106	Digital pressure gage, selectable engineering units: 200.0 psi, 14.06 kg/cm², 13.79 bar, 407.2" Hg, 461.4 ft w.c., 1379 kPa, 3200 oz/in², 5536" w.c., CE and FM approved.
DPG-107	Digital pressure gage, selectable engineering units: 300.0 psi, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 2069 kPa, 4800 oz/in², 8304" w.c., not CE and FM approved.
DPG-108	Digital pressure gage, selectable engineering units: 500.0 psi, 35.15 kg/cm², 34.48 bar, 1018" Hg, 1154 ft w.c., 3448 kPa, 8000 oz/in², CE and FM approved.
DPG-109	Digital pressure gage, selectable engineering units: 1000 psi, 70.3 kg/cm², 68.98 bar, 2036" Hg, 2307 ft w.c., 6895 kPa, CE and FM approved.
DPG-110	Digital pressure gage, selectable engineering units: 3000 psi, 210.9 kg/cm², 206.9 bar, 6108" Hg, 6921 ft w.c., CE and FM approved
DPG-111	Digital pressure gage, selectable engineering units: 5000 psi, 351.5 kg/cm², 344.8 bar, not CE and FM approved.

Service: Compatible liquids and combustible gases (for FM listing see Agency Approvals below).
Wetted Materials: Type 316L SS.
Housing Materials: Polycarbonate front and back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction.
Accuracy: DPG-000: 0.5% FS; DPG-100: ±0.25% FS; ±1 least significant digit @ 70°F (21°C) (includes linearity, hysteresis, repeatability).
Pressure Limit: 2x pressure range for models ≤1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Enclosure Rating: Designed to meet NEMA 4/4X (IP66).
Temperature Limits: 0 to 130°F (-18 to 55°C).
Thermal Effect: Between 70 to 130°F is 0.016%/F. Between 32 to 70°F is 0.026%/F. Between 10 to 32°F is 0.09%/F. Between 0 to 10°F is 0.50%/F.
Size: 3.00" OD x 1.90" deep (max).
Process Connection: 1/4" male NPT.
Weight: 8.84 oz (275 g).
Display: 4 digit (.425" H x .234" W digits).
Power Requirements: (2) AAA alkaline batteries, included, user replaceable.
Battery Life: 2000 hours typical; Low battery indicator. (60 hours in continuous use).
Auto Shut-Off: Gage: 60 minute auto shut-off. Auto shut-off may be disengaged. Backlight: 2 minute auto shut-off.
Agency Approvals: DPG-000: CE; DPG-100: CE, FM approved to be intrinsically safe for Class I, Division 1, Groups A, B, C and D, for ranges 0-5 to 0-3000 psi.

FEATURES

High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
