25mm garden submersible water pump For farm irrigation 220V 50Hz

Price	$38- $78/pc
MOQ	10
Delivery Time	10 work days
Brand	MC
Place of Origin	CHINA
Certification	CCC ISO
Model Number	QDX
Packaging Details	100% original package
Payment Terms	L/C, T/T, Western Union
Supply Ability	500 Piece/Pieces per Month

Product Details

Product Specification

Outlet Size	25cm-76cm	Place of Origin	CHINA
Size	25mm	Packaging Details	100% original package
Maximum Flow Rate	1.5m3/h	Model Number	QDX
Supply Ability	500 Piece/Pieces per Month	Pressure	220V/50Hz, High Pressure
Certification	CCC ISO	Brand Name	MC
Payment Terms	L/C, T/T, Western Union	Type	submersible pump
Price	$38- $78/pc	Delivery Time	10 work days
Product name	submersible water pumps	Minimum Order Quantity	10
Maximum Head:	17m32m25m	Application	Irrigation and Agriculture, water

Product Description

china best brands watering garden submersible diving water pumps used farm irrigation

Application

For water supply from wells or reservoirs.

For domestic use ,for civil and industrial applications.

For garden use and irrigation.

Working ConditionsMax.medium temperature:+40º C
Max.ambient temperature:+40º C
Max.working pressure: 5bar
Medium free from granules or anything that may damage the pump.
Power voltage: single-phase AC 220V,
Frequency: 50Hz
60Hz and three phases AC 380V, frequency 50Hz. 10 percent more or less voltage fluctuation from the rated value is allowed.

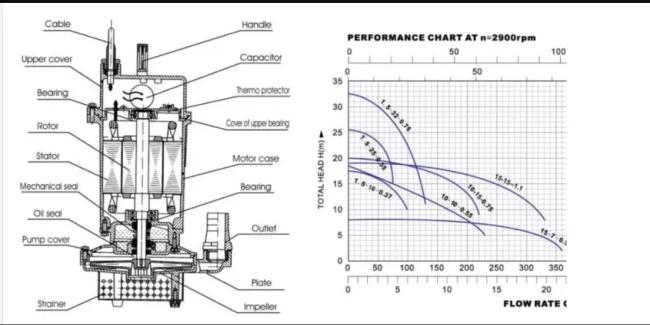

Key parts and materialsPump body: Cast Aluminum or Cast Iron
Mechanical Seal: Ceramic-Graphite, Silicon
Stator sheet:DR510 or 470
Motor bracket: Cast Aluminum or Cast iron
Carbide-Carbide Alloy
Motor Shaft: CS45# or SS
Impeller: Cast Aluminum

			Model

			Q.rat (m3/h)

			H.rat(m)

			Power (Kw/Hp)

			Speed
(r/min)

			Voltage (V/Hz)

			Current (A)

			Size
(mm)

			Head range
(m)

			QDX1.5-12-0.25

			1.5

			12

			0.25

			2860

			220/50

			2.1

			25

			6-12

			QDX1.5-17-0.37

			1.5

			17

			0.37

			2860

			220/50

			2.87

			25

			8-17

			QDX1.5-25-0.55

			1.5

			25

			0.55

			2860

			220/50

			4.07

			25

			15-25

			QDX3-18-0.55

			3

			18

			0.55

			2860

			220/50

			4.07

			32

			9-18

			QDX10-12-0.55

			10

			12

			0.55

			2860

			220/50

			4.07

			.38

			4-12

			QDX15-7-0.55

			15

			7

			0.55

			2860

			220/50

			4.07

			51

			0-7

			QDX1.5-32-0.75

			1.5

			32

			0.75

			2860

			220/50

			5.24

			25

			20-32

			QDX3-24-0.75

			3

			24

			0.75

			2860

			220/50

			5.24

			32

			15-24

			QDX8-18-0.75

			8

			18

			0.75

			2860

			220/50

			5.24

			38

			10-18

			QDX10-16-0.75

			10

			16

			0.75

			2860

			220/50

			5.24

			51

			8-16

			QDX15-10-0.75

			15

			10

			0.75

			2860

			220/50

			5.24

			64

			2-10

			QDX30-6-0.75

			30

			6

			0.75

			2860

			220/50

			5.24

			76

			0-6

			QDX3-35-1.1

			3

			35

			1.1

			2860

			220/50

			6.2

			25

			25-35

			QX3-35-1.1

			3

			35

			1.1

			2860

			380/50

			2.77

			25

			25-35

			QDX6-26-1.1

			6

			26

			1.1

			2860

			220/50

			6.2

			38

			16-26

			QX6-26-1.1

			6

			26

			1.1

			2860

			380/50

			2.77

			38

			16-26

			QDX10-20-1.1

			10

			20

			1.1

			2860

			220/50

			6.2

			51

			10-20

			QX10-20-1.1

			10

			20

			1.1

			2860

			380/50

			2.77

			51

			10-20

			QDX15-15-1.1

			15

			15

			1.1

			2860

			220/50

			6.2

			64

			7-15

			QX15-15-1.1

			15

			15

			1.1

			2860

			380/50

			2.77

			64

			7-15

			QDX30-9-1.1

			30

			9

			1.1

			2860

			220/50

			6.2

			76

			2-9

			QX30-9-1.1

			30

			9

			1.1

			2860

			380/50

			2.77

			76

			2-9

			QDX3-38-1.5

			3

			38

			1.5

			2860

			220/50

			9.44

			25

			25-38

			QX3-38-1.5

			3

			38

			1.5

			2860

			380/50

			3.58

			25

			25-38

			QDX10-25-1.5

			10

			25

			1.5

			2860

			220/50

			9.44

			51

			20-25

25mm garden submersible water pump For farm irrigation 220V 50Hz

Product Details

Product Specification

Product Description

china best brands watering garden submersible diving water pumps used farm irrigation

Application

You May Also Like

Get Latest Price

Mengchuan Instrument Co,Ltd.

Model	Q.rat (m3/h)	H.rat(m)	Power (Kw/Hp)	Speed (r/min)	Voltage (V/Hz)	Current (A)	Size (mm)	Head range (m)
QDX1.5-12-0.25	1.5	12	0.25	2860	220/50	2.1	25	6-12
QDX1.5-17-0.37	1.5	17	0.37	2860	220/50	2.87	25	8-17
QDX1.5-25-0.55	1.5	25	0.55	2860	220/50	4.07	25	15-25
QDX3-18-0.55	3	18	0.55	2860	220/50	4.07	32	9-18
QDX10-12-0.55	10	12	0.55	2860	220/50	4.07	.38	4-12
QDX15-7-0.55	15	7	0.55	2860	220/50	4.07	51	0-7
QDX1.5-32-0.75	1.5	32	0.75	2860	220/50	5.24	25	20-32
QDX3-24-0.75	3	24	0.75	2860	220/50	5.24	32	15-24
QDX8-18-0.75	8	18	0.75	2860	220/50	5.24	38	10-18
QDX10-16-0.75	10	16	0.75	2860	220/50	5.24	51	8-16
QDX15-10-0.75	15	10	0.75	2860	220/50	5.24	64	2-10
QDX30-6-0.75	30	6	0.75	2860	220/50	5.24	76	0-6
QDX3-35-1.1	3	35	1.1	2860	220/50	6.2	25	25-35
QX3-35-1.1	3	35	1.1	2860	380/50	2.77	25	25-35
QDX6-26-1.1	6	26	1.1	2860	220/50	6.2	38	16-26
QX6-26-1.1	6	26	1.1	2860	380/50	2.77	38	16-26
QDX10-20-1.1	10	20	1.1	2860	220/50	6.2	51	10-20
QX10-20-1.1	10	20	1.1	2860	380/50	2.77	51	10-20
QDX15-15-1.1	15	15	1.1	2860	220/50	6.2	64	7-15
QX15-15-1.1	15	15	1.1	2860	380/50	2.77	64	7-15
QDX30-9-1.1	30	9	1.1	2860	220/50	6.2	76	2-9
QX30-9-1.1	30	9	1.1	2860	380/50	2.77	76	2-9
QDX3-38-1.5	3	38	1.5	2860	220/50	9.44	25	25-38
QX3-38-1.5	3	38	1.5	2860	380/50	3.58	25	25-38
QDX10-25-1.5	10	25	1.5	2860	220/50	9.44	51	20-25
