| Price | $1000~$2000 / set |
| MOQ | 1 set |
| Delivery Time | 7 working days |
| Brand | RUNNING |
| Place of Origin | QINGDAO CHINA |
| Certification | ISO9001 CE |
| Model Number | Universal |
| Packaging Details | Plywood case |
| Payment Terms | T/T, L/C |
| Supply Ability | 200sets/month |
| Place of Origin | QINGDAO CHINA | Applied Machine Size | 1000mm Or Customized |
| Packaging Details | Plywood case | Color | Black |
| Specification | As Equipment Size | Material | Rubber |
| Model Number | Universal | Supply Ability | 200sets/month |
| Pressure | 2.5Mpa | Certification | ISO9001 CE |
| Max. Pressure | 2.5 Mpa | Brand Name | RUNNING |
| Payment Terms | T/T, L/C | Price | $1000~$2000 / set |
| Delivery Time | 7 working days | Applicatin | Conveyor Belt Splicing and Joint |
| Minimum Order Quantity | 1 set | Structure | Horizontal |
Rubber Pressurized Water Bag For Conveyor Belt Vulcanizer Press
Product Advantages
Our pressure water bag is made of rubber towards molding vulcanization.
Compared with original metal pressure board, it has the following advantages:
1. Light weight.
2. More balanced pressure.
3. Greater expension rate.
4. Lower rust risk.
5. Lower leakage rate.
6. Longer service life.
Matters Needing Attention
If vulcanizing machine pressure beam is separated, want to place a piece of the same specification on both sides pressure bag big board, protect the pressure water bag.
Technical Parameter
|
Model (mm)
|
Dimension for 18° (mm)
|
Dimension for 90° (mm)
|
Pressure (Mpa)
|
Weight (kg)
|
Expansive degree (mm)
|
|
1000*830
|
1220*830*20
|
1160*830*20
|
2.0-3.0
|
20
|
10-40
|
|
1200*830
|
1420*830*20
|
1360*830*20
|
2.0-3.0
|
23
|
10-40
|
|
1400*830
|
1620*830*20
|
1560*830*20
|
2.0-3.0
|
26
|
10-40
|
|
1600*830
|
1820*830*20
|
1760*830*20
|
2.0-3.0
|
29
|
10-40
|
|
1800*830
|
2020*830*20
|
1960*830*20
|
2.0-3.0
|
32
|
10-40
|
|
Model(mm)
|
Dimension for 18° (mm)
|
Dimension for 90° (mm)
|
Pressure (Mpa)
|
Weight (kg)
|
Expansive degree (mm)
|
|
1000*1000
|
1220*1000*20
|
1160*1000*20
|
2.0-3.0
|
20
|
10-40
|
|
1200*1000
|
1420*1000*20
|
1360*1000*20
|
2.0-3.0
|
23
|
10-40
|
|
1400*1000
|
1620*1000*20
|
1560*1000*20
|
2.0-3.0
|
26
|
10-40
|
|
1600*1000
|
1820*1000*20
|
1760*1000*20
|
2.0-3.0
|
29
|
10-40
|
|
1800*1000
|
2020*1000*20
|
1960*1000*20
|
2.0-3.0
|
32
|
10-40
|

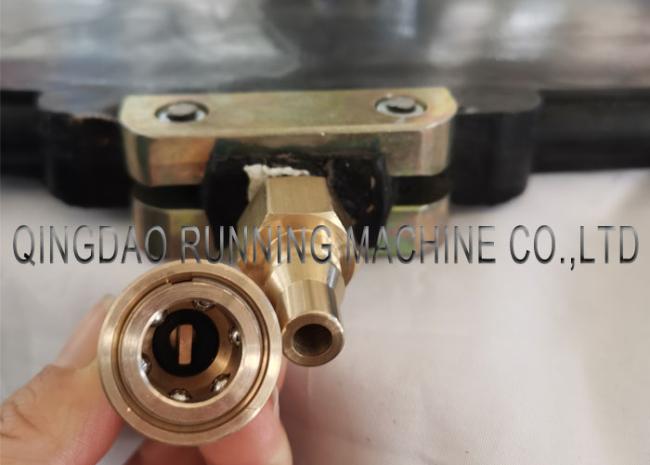

It is equipped quick connector for connecting pressure water pipe, very convenient for operation.
For more details, please feel free to contact us!
