| Price | USD2700/SET |
| MOQ | 1 SET |
| Delivery Time | 7 working days |
| Brand | RUNNING |
| Place of Origin | QINGDAO CHINA |
| Certification | ISO9001 CE |
| Model Number | ZLJ-600 |
| Packaging Details | Plywood case (Fumigation free) |
| Payment Terms | T/T, L/C |
| Supply Ability | 50sets/month |
| Condition | New | Heating method | Electrical |
| Place of Origin | QINGDAO CHINA | Cooling method | Water cooling |
| Warranty | 2 years | Packaging Details | Plywood case (Fumigation free) |
| After-sales Service Provided | Engineers available to service machinery overseas | Key word | Conveyor Belt Splicing Machine |
| Model Number | ZLJ-600 | Supply Ability | 50sets/month |
| Certification | ISO9001 CE | Brand Name | RUNNING |
| Payment Terms | T/T, L/C | Beam | Lightweight aluminum alloy |
| Price | USD2700/SET | Delivery Time | 7 working days |
| Minimum Order Quantity | 1 SET | Application | Rubber conveyor belt splicing |
Conveyor Belt Hot Vulcanizing Machine For Rubber Steel Cord Belt
Main Parts of conveyor belt vulcanizing machine
ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:
|
Name
|
Amount |
|
Host machine
|
1 set |
|
Ratchet wrench
|
2 piece |
|
Clamping device
|
1 set |
|
Electric control box
|
1 set |
|
Power cable
|
1 root |
|
Control cable
|
2 root |
|
Thermal resistance
|
2 pieces |
|
QL electric water pump
|
1 set |
|
SD Hand pressure pump (Optional)
|
1 set |
|
Pressure pipe
|
2 root |
| Water cooling system (Optional) | 1 set |
Our Advantages:

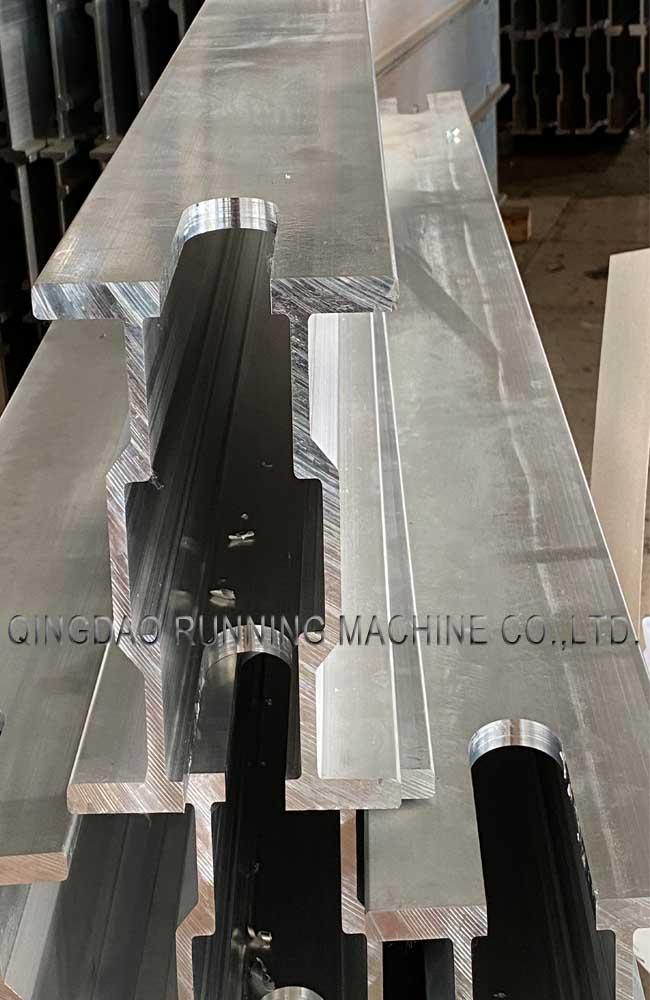

1. Lightweight aluminum alloy frame
2.Tension bolt
• Tension bolts made of high-strength steel, however,
• 2 kg less apiece than conventional steel tension bolts
• Tension bolt threads protected against damage
• Tension bolts sealed up and protected against pollution

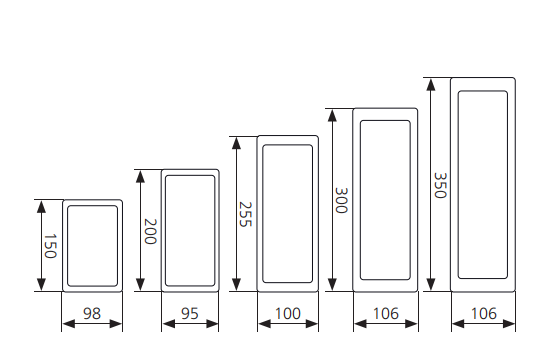

AVAILABLE CROSSBEAM SIZES
3. Lightweight aluminum platens use new rapid cooling system within platens.
4. Custom sizes, rectangular configurations and multiple platen arrangements are also available on request.

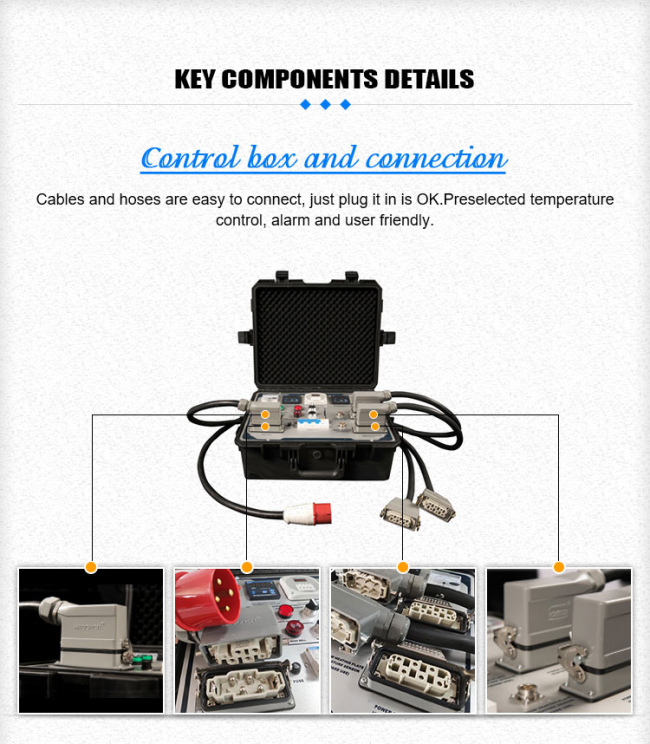

5. ELECTRONICS CONTROL CABINET
6． Pressure bag system, can used for both water and air, one time molding, without metal frame, light weight, testing pressure out of our factory is 2.5MPA (old design pressure bag fixed with metal frame and bolts, heavy weight)
7.Pressure System of Mining Flameproof Light Weight Conveyor Belt Jointing Splicing Machine 1600mm
A. Automatic pressure pump with pressure gauge, allows easy application of pressure up to 200PSI. For steel-cord belting, standard will be auto pressure pump. After use new cooling system in the heating platen, now also use pressure pump for cooling.
B. Cooling pump , when work with air compressor, air pressure, no pressure pump, such cooling pump can used for cooling. (Pls note that, if have any special requirements of the cooling pump working voltage, pls inform us before order, standard voltage is 220V single phase)
C. Manual Pump: Manual water pressure
Package of Conveyor Belt Splicing Tools:
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
