| Price | USD 3900.00/set |
| MOQ | 1 SET |
| Delivery Time | 7 working days |
| Brand | RUNNING |
| Place of Origin | QINGDAO CHINA |
| Certification | ISO9001 CE |
| Model Number | PA600 |
| Packaging Details | FCL/LCL |
| Payment Terms | T/T, L/C |
| Supply Ability | 5000 sets/year |
| Place of Origin | QINGDAO CHINA | Cooling method | Air cooling |
| Warranty | 2 years | Packaging Details | FCL/LCL |
| Material | Aluminum Alloy | After-sales Service | Overseas Service Center |
| Model Number | PA600 | Supply Ability | 5000 sets/year |
| Certification | ISO9001 CE | Brand Name | RUNNING |
| Payment Terms | T/T, L/C | Price | USD 3900.00/set |
| Delivery Time | 7 working days | Transport Package | Standard Wood Case |
| Minimum Order Quantity | 1 SET | Voltage | 220V 380V Or Customized |
| Application | PVC/PU conveyor belt jointing | Heating method | Electricity heating |

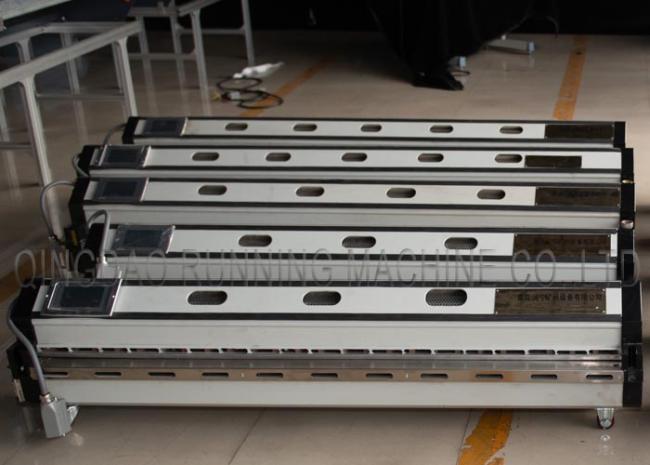

PU Conveyor Belt Jointing Machine Hot Vulcanizing Splice Press
Specifications of PU belt jointing machine:
| Model | 300 | 600 | 900 | 1200 | 1500 | 1800 | 2100 |
| Effective length | 305mm/12" | 610mm/24" | 914mm/36" | 1219mm/48" | 1524mm/60" | 1829mm/72" | 2360mm/90" |
| Effective width | 130mm/4.7" | 130mm/4.7" | 130mm/4.7" | 130mm/4.7" | 130mm/4.7" | 130mm/5.8" | 130mm/5.8" |
| Weight lower part | 11kgs | 13kgs | 18kgs | 25.5kgs | 32kgs | 63.5kgs | 73kgs |
| Weight upper part | 10kgs | 16kgs | 20kgs | 28.5kgs | 30kgs | 47.5kgs | 67kgs |
| Total weight | 21kgs | 29kgs | 38kgs | 54kgs | 62kgs | 121kgs | 142kgs |
| Overall height(mm) | 220mm | 225mm | 225mm | 225mm | 225mm | 255mm | 255mm |
|
MAX PRESSURE |
2 Bar | 2 Bar | 2 Bar | 2 Bar | 2 Bar | 2 Bar | 2 Bar |
|
PACKAGING DIMENSION (mm) |
790*430*420 | 1090*430*420 | 1390*430*420 | 1720*450*430 | 2030*470*410 | 2212*352*280 | 2567*352*300 |
| GROSS WEIGHT | 46kgs | 72kgs | 89kgs | 112kgs | 134kgs | 158kgs |
184kgs |
Features of PU belt jointing machine:
•
RUNNING
PA series
air
cooled
press,have
different
models
from
300mm
to
2100mm.
•
Used
for
PVC/PU/PVK
Belt
and
thermoplastic
belt
materials
etc.
•
Portable
splice
press,light
weight
and
with
flight
case
as
standard
packing,easily
removed
to
anywhere
for
on-site
joint
work.
•
Fast
Splicing:Heating
and
cooling
time:no
more
than
12mins.
•
All-in-one
design:Integrated
air
cooling
system
and
also
air
compressor
inside.To
ensure
that
belt
is
quickly
cooled
down
and
auto
press
on,without
water
pump
or
additional
air
compressor.The
air
compressor
made
in
Germany.
•
Reliable
and
automatic
temperature
control
with
time
controlling(in
one
meter,also
you
can
sent
by
yourself).High
quality
Euro
thermistor.The
temperature
controller
from
Eurothern,made
in
UK.
•
Air
pressure
controller
(set
the
air
pressure
and
display
the
current
pressure),High
quality
SMC
Controller.
Application of PU belt jointing machine:
The PVC/PU belt joint press machine is used for welding&jointing PVC/PU belt into endless belt, which can be used directly in factory.
Our advantages:
1.
Short
cycle
time,
approx.
10
minutes
or
less
depending
on
belt
type
2.
Lightweight
components
3.
No
water
or
forced
air
cooling
necessary
4.
Less
production
downtime
5.
Easy
transport
around
the
plant
Delivery:
We
will
use
film
to
wrap
the
machine.
then
put
into
wooden
box.
The
normal
package
is
wooden
box.(Fumigation
treatment).
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
