| Price | 14,000.00 USD/SET |
| MOQ | 1 set |
| Delivery Time | 7 DAYS |
| Brand | RUNNING |
| Place of Origin | CHINA |
| Certification | CE UL |
| Model Number | ZLJ-2000 |
| Packaging Details | wooden package |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 50 STES / M |
| Usage | Rubber conveyor belt system | Place of Origin | CHINA |
| Warranty | 2 years | Packaging Details | wooden package |
| HS Code | 84778000 | Material | Aluminum |
| After-sales Service | Commissioning And Training | Model Number | ZLJ-2000 |
| Supply Ability | 50 STES / M | Certification | CE UL |
| Brand Name | RUNNING | Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Price | 14,000.00 USD/SET | Delivery Time | 7 DAYS |
| Product name | Conveyor belt splicer | Heating Type | Electricity Heating |
| Minimum Order Quantity | 1 set | Cooling system | Water cooling |

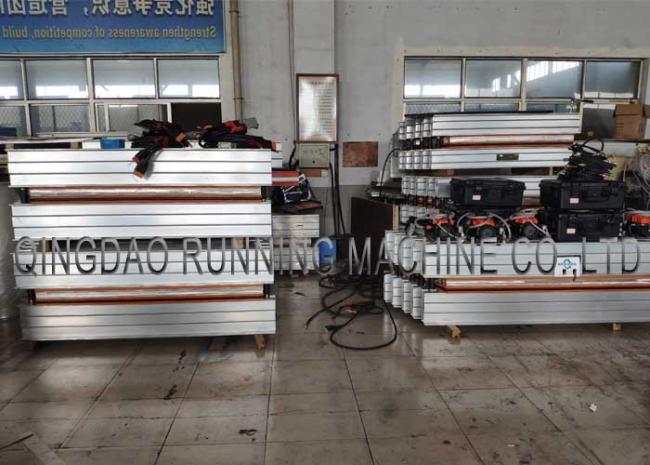

Specification
of Conveyor
Belt
Splicing
Joint
Hot
Vulcanizing
Machine
(Model:
ZLJ-2000×830mm)
| No. | Description | B=2000mm | Remarks |
| 1 | Rubber Conveyor Belt Splicing Joint Hot Vulcanizing Machine | 1 set | |
| 2 | Model | ZLJ-2000x830mm | |
| 3 | Belt Width | 2000mm | |
| 4 | Working Pressure Range of Vulcanizing (Mpa) | 1.0-3.0 Mpa(adjustable) | |
| 5 | Working Temperature | 145ºC | |
| 6 | Temperature Difference of Platen Surface (ºC) | ±2ºC | |
| 7 | Temperature Rising Time (Normal temperature to 145ºC) | ≤20min | |
| 8 | Temperature Adjustable Range (ºC) | 0-200ºC | |
| 9 | Timing Adjustable Range | 0-99min | |
| 10 | Appearance Size | 2600x830x950mm | |
| 11 | Single-machine Weight | 1860kg | |
| 12 | Voltage | 220V or as per customer's request | |
| 13 | Working Pressure | 0---1.8 MPa | |
| 14 | Power | 25.6kw | |
| 15 | Optional Accessories | With belt clamping device | |
| 16 | Beam | 10 groups of 250mm beam |
How to select your Splicer?
C - The platen length (C) is calculated by adding to the belt manufacturer’s recommended splice length.
D - The platen width (D) is determined by adding to the belt width.
F - Width of the platen along the belt on bias. To figure this multiply by:
Dimensions C and D represent the outside platen dimensions. Custom sizes, rectangular configurations and multiple platen arrangements are also available upon request.

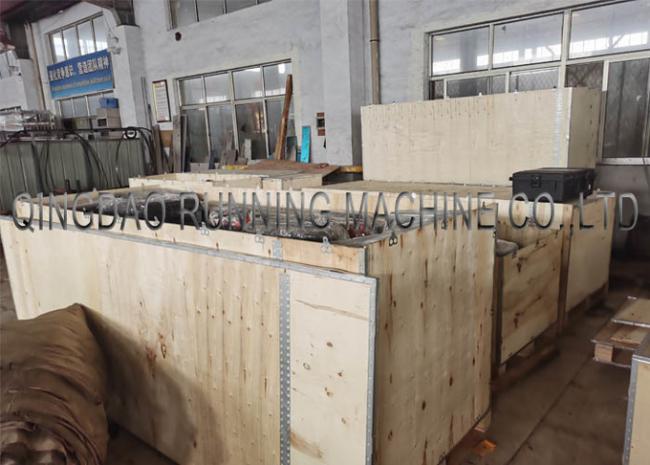

Package of Conveyor Belt Splicing Joint Hot Vulcanizing Machine
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
Our Services
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
