| Price | $6000 ~ $7000 / set |
| MOQ | 1 set |
| Delivery Time | 7 work days |
| Brand | RUNNING |
| Place of Origin | QINGDAO CHINA |
| Certification | CE ISO |
| Model Number | ZLJ-1000*830 |
| Packaging Details | Plywood case (Fumigation free) |
| Payment Terms | T/T, L/C |
| Supply Ability | 50 sets/month |
| Condition | New | Usage | Rubber Belt jointing |
| Place of Origin | QINGDAO CHINA | Warranty | 2 Years |
| Packaging Details | Plywood case (Fumigation free) | Material | Aluminum Alloy |
| Model Number | ZLJ-1000*830 | Supply Ability | 50 sets/month |
| Certification | CE ISO | Brand Name | RUNNING |
| Payment Terms | T/T, L/C | Cooling Type | Water fast cooling |
| Price | $6000 ~ $7000 / set | Delivery Time | 7 work days |
| Heating Type | Electrical | Minimum Order Quantity | 1 set |
| Machine weight | 700kg | Applied belt width | 1000mm or customized |
Explosion Proof Rubber Belt Vulcanizing Machine With Auto-Control Box
ZLJ factory direct sale high quality conveyor belt vulcanizing machine (hereinafter referred to as vulcanizer) is an electrothermal type vulcanizing device used for on-site bonding of conveyor belts. With the advantages of advanced technology, compact structure and convenient usage, it’s used for the vulcanized bonding of the belts mixed with canvas, nylon, steel cord, etc., and it’s also suitable for the flame retarded, corrosion proof and other special belts. The application area of this kind of vulcanizer is very wide, it can be used in metallurgy, mining, power plant, port and wharf, building material factory, chemical factory and so on. In a word, as long as the place is without explosive and corrosive gas, the vulcanizer can be used there.
1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.
2.
It
is
designed
to
use
as
an
inter-core
cord
rubber
replacement
material
in
splicing
steel
cord
conveyor
belts
or
a
tie
gum
in
fabric
belts.
3.
The
material
is
designed
to
bond
to
cured
intercore
rubber
and
wire
cords
in
all
standard
grade
steel
cord
conveyor
belts,
as
well
as
fabric
belt
cured
skim
rubber
and
general
bond
improvement
material
for
general
grade
fabric
conveyor
belts.
The
ZLJ
sectional
has
uniform
pressure
bag
and
aluminum/steel
bolt
and
high
grade
aluminum
platens
and
beams
with
restraining
system
set
as
standard.
Such
belt
splicing
system
designed
to
be
portable
and
easy
to
set-up
and
remove
from
the
site.
We
can
manufacture
to
all
sizes
and
pressure
up
to
200
psi
required
for
different
fabric
belts
and
steelcord
belts.

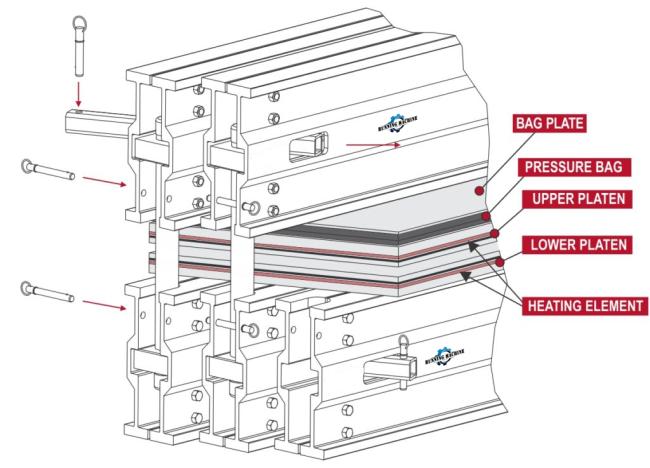

Structural composition
Specification of rubber conveyor belt splicing vulcanizing machine
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
There are two ways to splice conveyor belts: vulcanization and mechanical splicing. Vulcanization is mainly used to splice conveyor belts through heating or chemical treatment, The most common is to use a professional conveyor belt joint machine vulcanization head, this joint method is being adopted by various joint service companies all over the world.
The hot splicing vulcanizing is equivalent to 60%-80% of the strength of the conveyor belt itself. ( Jointing with cold viscose is equivalent to 40%-55% of the strength of the conveyor belt itself; The buckle (mechanical joint) connection is only 28%-45%). So we recommend you to choose hot splicing vulcanizing to achieve better jointing result.
Our ZLJ series rubber conveyor belt splicing vulcanizing machine has fast heating speed and cooling speed (Heating to 180℃, about 15~20 min; 180℃ cooling down to 60℃ needs about 3~5min according to different size press), which will save a lot of time for splicing process. For heating, we used rubber coated resistance heating wire, which has faster heating speed and lower electric leakage risk.

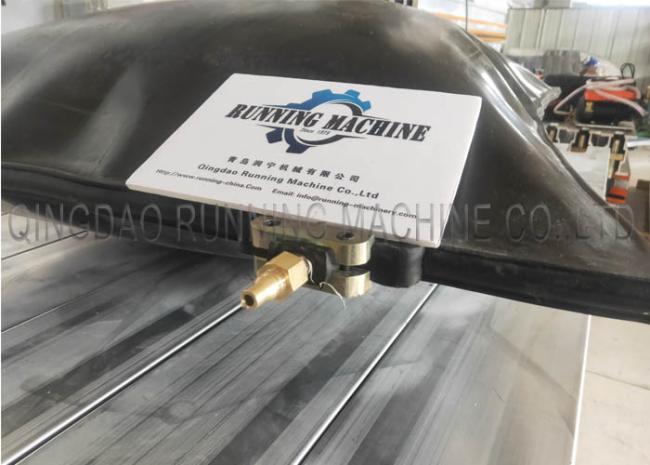

Our conveyor belt splicing vulcanizing machine use water pressure bladder which is made of rubber, it has the advantages of more balanced pressure, better scalling, no rusting risk and lower leakage risk and longer service life.
There are some other machines for you choice, please let us know if you need more machine details.
