| Price | Negotiable |
| MOQ | 1 SET |
| Delivery Time | 7 working days |
| Brand | RUNNING |
| Place of Origin | QINGDAO CHINA |
| Certification | ISO9001 CE |
| Model Number | ZLJ-800*830 |
| Packaging Details | Plywood case (Fumigation free) |
| Payment Terms | T/T, L/C |
| Supply Ability | 50sets/month |
| Heating method | Electrical | Place of Origin | QINGDAO CHINA |
| Cooling method | Water cooling | Warranty | 2 years |
| After-sales service provided | Overseas third-party support available | Packaging Details | Plywood case (Fumigation free) |
| Belt width | 800mm or customized | Model Number | ZLJ-800*830 |
| Supply Ability | 50sets/month | Certification | ISO9001 CE |
| Brand Name | RUNNING | Payment Terms | T/T, L/C |
| Beam | Lightweight aluminum alloy | Delivery Time | 7 working days |
| Price | Negotiable | Minimum Order Quantity | 1 SET |
| Machine weight | 650kgs | Application | conveyor belt splicing |

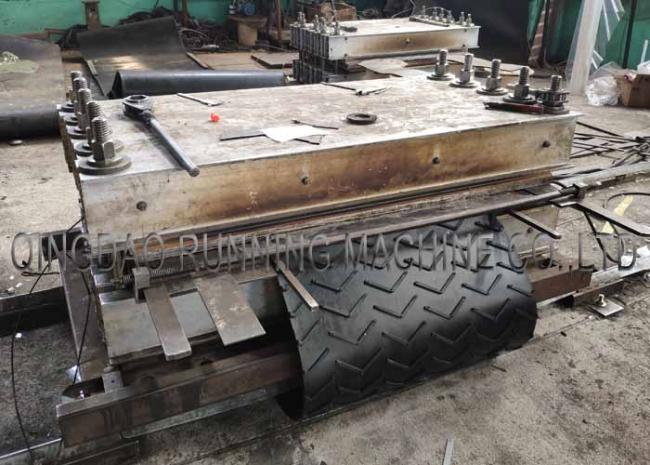

Frame Style Electrical Heating Steel Cord Conveyor Belt Splicing Machine
Why Hot Vulcanizing Is A Better Method for Splicing Your Conveyor Belt?
Conveyer
belt
repairs
can
drive
down
productivity
by
taking
your
operation
offline.
If
you
are
unprepared
for
a
breakdown,
the
race
to
repair
can
be
hectic
and
stressful.
More
importantly,
a
quality
and
lasting
repair
is
critical
to
stop
further
issues.
Hot
vulcanizing
is
an
excellent
option
for
belt
splicing
and
can
be
used
in
a
variety
of
fixes
or
new
installations.
Its
benefits
include
bond
strength,
longevity,
and
durability.
Method and Procedure of Conveyor Belt Splicing Machine
Hot vulcanizing is a method of repair that uses both heat and pressure to join repair materials with compromised sections of the belt. The belt must be cleaned and free of all oily, greasy substances before starting.
Typically, the damaged portion of the belt is removed or trimmed down, and a new section is bonded in its place using an adhesive like glue or cement. Often, technicians will overuse the adhesive, subscribing to an “if a little is good, then a lot is better” approach, but that isn’t necessarily true. The belt is then cured to bond the materials.
The hot vulcanizing method is ideal for cuts or tears, holes or breakdowns between steel cords and fabric. It can be executed in dusty environments and is suitable for all types of belts with varying widths and thickness.
Machine specification of Conveyor Belt Splicing Tools:
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Packing list of Conveyor Belt Splicing Tools:
| Name | Amount |
| Host machine | 1 set |
| Ratchet wrench | 2 piece |
| Clamping device | 1 set |
| Electric control box | 1 set |
| Power cable | 1 root |
| Control cable | 2 root |
| Thermal resistance | 2 pieces |
| QL electric water pump | 1 set |
| SD Hand pressure pump (Optional) | 1 set |
| Pressure pipe | 2 root |
| Water cooling system (Optional) | 1 set |
Package of Conveyor Belt Splicing Tools:
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
