Two Pieces Frame Combined Portable Conveyor Belt Vulcanizer Lightweight

Lightweight Durable Two Pieces Frame Combined Conveyor Belt Vulcanizer

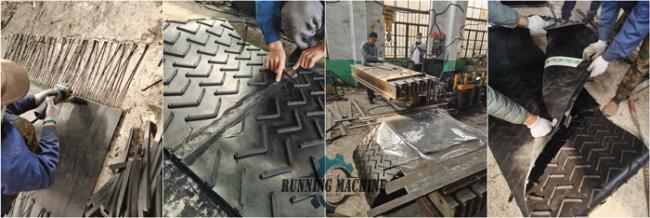

1. What is conveyor belt splicing ?

•  hot splicing
• cold splicing

• Need to know belt width
• Belt material (rubber , pvc ,pu  )
• Type of belt  (Fabric Ply  OR Steelcord )

Once you have understood the above information, you can contact us - Qingdao Running Machinery Co. We not only provide conveyor belt jointing machines, but also provide conveyor belt jointing services.

1.Design Features

• Lightweight compact design for easy transport
• Thick copper pipe, can be water rapid cooling, save joint time.
• All electrical systems are CE, CSA and UL approved
• Durable for use in harshest of environments
• Pressure bolts pass through the cross beam profile for a high level of safety
• Exact temperature regulation via an electronic control box
• Even pressure distribution across the splice area.
• Vulcanizing temperature is uniform and accurate.
• Automatic features for setting the temperature and curing time
• Standard sizes are available (custom size upon request)

2.Spare Parts for Vulcanizing Presses

• Control Box – The VUL-CON Switchgear Box is the most advanced control system in the world. Incorporating controls for 2 platens. Splice data can be stored and recalled through the built-in data logger.
• Heating Element – Silicone Rubber heaters with wire-wound elements provide excellent physical strength capable of withstanding repeated flexing without compromising the life and performance of the heater.
• Robust Rubber Pressure Bag – with aramid reinforcement distributes uniform pressure and is available in 22° bias and can be custom made upon request.
• Platen--Each sectional press is constructed with aluminum flexible platens that contour to the conveyor belt surface during splicing
  Platens are individually designed and include extruded plank,silicone heating elements (up to 163 °C/325 °F), and durable
  composite insulating packaging Sturdy electrical connectors and moisture-proof latch enhance press durability
• Platen Cables – Connects to the temperature controller and vulcanizing platens.

3.Basic Equipments

4.Product Model
