| Price | Usd599 ~ Usd1099 / Sqm ( price is negotiable ) |
| MOQ | 1 Sqm |
| Delivery Time | 15 - 18 days |
| Brand | Longda LED |
| Place of Origin | ShenZhen |
| Certification | CE / RoHs / FCC / CCC / ISO9001 / ISO14001 |
| Model Number | P6 |
| Packaging Details | Flight case packing or Plywood case packing |
| Payment Terms | L / C , T / T , Western Union , MoneyGram |
| Supply Ability | 5000sqm per month |
| Panel size | 192 x 192mm | Place of Origin | ShenZhen |
| Packaging Details | Flight case packing or Plywood case packing | Power supply | Meanwell |
| Scan mode | 16s Constant Current | Model Number | P6 |
| Supply Ability | 5000sqm per month | Certification | CE / RoHs / FCC / CCC / ISO9001 / ISO14001 |
| Brand Name | Longda LED | Payment Terms | L / C , T / T , Western Union , MoneyGram |
| Refresh rate | 3840hz | Price | Usd599 ~ Usd1099 / Sqm ( price is negotiable ) |
| Delivery Time | 15 - 18 days | Minimum Order Quantity | 1 Sqm |
| Pitch | 6mm | Cabinet size | 960 * 960mm |

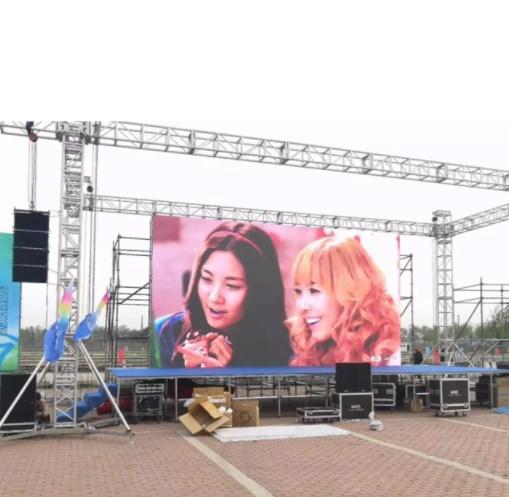

Wedding Led Screen High Quality LED TV Wall Outdoor P6 LED Screen Rental
Advantages :
1 . It is extremely easy to calculate the area of LED screen because it is consist of 960 * 960mm cabinet ;
2 . The appearance is very elegant , it looks very high end , quality is very stable ;
3 . With iron cabinet waterproof IP65 , very strong and rock solid , tolerance can be controlled
in 0.1mm so the surface is very smooth , almost no gap between cabinets .
Technical parameters :
|
Outdoor P6 LED Screen |
||||
|
Item |
Specification |
|||
|
Pixel Pitch |
6mm |
|||
|
Module Resolution |
W32×H32dots |
|||
|
Module Size |
192*192mm |
|||
|
Led Packing |
3535 |
3528 |
||
|
IP Rate |
65 |
|||
|
IC |
Constant current IC |
5124 |
||
|
LED composition |
1R1G1B |
|||
|
Cabinet Size |
576*576mm |
960*960mm |
||
|
Module Qty |
W3X H3 =9PCS |
W5X H5 =25PCS |
||
|
Physical Resolution |
W96×H96dots |
W160×H160dots |
||
|
Power Consumption(MAX.) |
600 W/m2 |
|||
|
Power Consumption(AVE.) |
230 W/m2 |
300 W/m2 |
||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Physical Density |
27777 dots/m2 |
|||
|
Net Weight |
7.5Kg |
7.7Kg |
||
|
Brightness |
5500cd/m2 |
1000cd/m2 |
||
|
Colors |
16.7 trillion |
|||
|
Brightness Control |
Software 256 level adjustable |
|||
|
Gray Level |
14 |
|||
|
View Distance |
6 ~ 50m |
6 ~ 150m |
||
|
Refresh Rate |
≥ 1200 ~ 1920Hz |
≥ 960Hz |
||
|
Drive Mode |
1/8s |
1/16s |
||
|
Life Span |
100000h |
|||
|
MTBF |
1000h |
|||
|
Control mode |
Synchronous control or Asynchronous control |
|||
|
Frame Frequency |
≥ 60Hz |
|||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
|
Operation Temperature |
-20 ℃ ~ +45 ℃ |
|||
|
Operation Humidity |
10% ~ 95% |
|||
FAQ :
1 : What is the warranty of your led display ?
A : We offer 5 years warranty and more than 100000 hours screen life span .
2 : what is your payment term ? How long it takes to delivery ?
A : We usually accapt the T / T or L / C , both of them will at least 30 % deposit in advance , and the rest of
70 % will paid before delivery , the lead time is usually 20 day .
3 : What is your pre-sale and post-sale service ?
A : For pre - sale service , we have professional sales team and technical team , who are willing to answer
your question within 24 hours .
For post - sale service , we will instruct you how toinstallation , how to use , how to change the broken
moudles , and we can also send the technicals to your country , in general , our led display will not have a
big problem , you can rest assured to buy .
