| Price | Usd899 ~ Usd1399 / Sqm ( price is negotiable ) |
| MOQ | 1 Sqm |
| Delivery Time | 15 - 18 days |
| Brand | Longda LED |
| Place of Origin | ShenZhen , China |
| Certification | CE / RoHs / FCC / CCC / ISO9001 / ISO14001 |
| Model Number | P6 |
| Packaging Details | Flight case packing or Plywood case packing |
| Payment Terms | L / C , T / T , Western Union , MoneyGram |
| Supply Ability | 5000sqm per month |
| Place of Origin | ShenZhen , China | Packaging Details | Flight case packing or Plywood case packing |
| Physical Density | 27777 dots / m² | Model Number | P6 |
| Supply Ability | 5000sqm per month | Certification | CE / RoHs / FCC / CCC / ISO9001 / ISO14001 |
| MTBF | 1000h | Brand Name | Longda LED |
| Payment Terms | L / C , T / T , Western Union , MoneyGram | Pixel Pitch | 6mm |
| Price | Usd899 ~ Usd1399 / Sqm ( price is negotiable ) | Delivery Time | 15 - 18 days |
| Minimum Order Quantity | 1 Sqm | Net Weight | 7.7Kg |
| Module resolution | 32 x 32 dots | Cabinet size | 960 x 960mm |
Outdoor Led Video Walls Waterproof P6 960x960mm Full Color LED Screen Panel Board Display
Product Introduction
1 . Iron waterproof IP65 cabinet structure : rock solid , not easy to deform .
2 . Seamless splicing : give you a better visual experience .

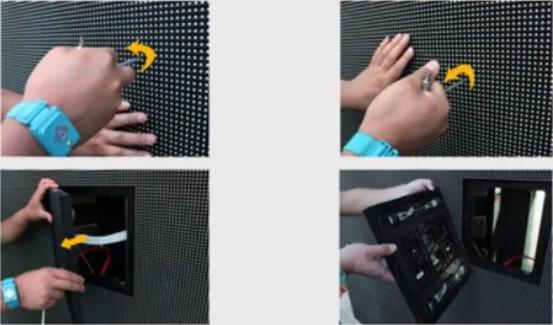

3 . Quick lock system , easy installation : quick installation , complete the installation in a few seconds .
Specifications
|
Outdoor P6 LED Screen |
||||
|
Part I Technicial Parameters |
||||
|
Led Module Specification |
||||
|
Item |
Specification |
|||
|
Pixel Pitch |
6mm |
|||
|
Module Resolution |
W32×H32dots |
|||
|
Module Size |
192*192mm |
|||
|
Led Packing |
3535 |
3528 |
||
|
IP Rate |
65 |
|||
|
IC |
Constant current IC |
5124 |
||
|
LED composition |
1R1G1B |
|||
|
Cabinet Specification |
||||
|
Cabinet Size |
576*576mm |
960*960mm |
||
|
Module Qty |
W3X H3 =9PCS |
W5X H5 =25PCS |
||
|
Physical Resolution |
W96×H96dots |
W160×H160dots |
||
|
Power Consumption(MAX.) |
600 W/m2 |
|||
|
Power Consumption(AVE.) |
230 W/m2 |
300 W/m2 |
||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Physical Density |
27777 dots/m2 |
|||
|
Net Weight |
7.5Kg |
7.7Kg |
||
|
Screen Specification |
||||
|
Brightness |
5500cd/m2 |
1000cd/m2 |
||
|
Colors |
16.7 trillion |
|||
|
Brightness Control |
Software 256 level adjustable |
|||
|
Gray Level |
14 |
|||
|
View Distance |
6～50m |
6~150m |
||
|
Refresh Rate |
≥1200~1920Hz |
≥960Hz |
||
|
Drive Mode |
1/8s |
1/16s |
||
|
Life Span |
100,000h |
|||
|
MTBF |
1000h |
|||
|
Control mode |
Synchronous control or Asynchronous control |
|||
|
Frame Frequency |
≥60Hz |
|||
|
Certification |
CE/ROHS/FCC/CCC/ISO9001/ISO14001 |
|||
|
Operation Temperature |
-20℃ ～ +45℃ |
|||
|
Operation Humidity |
10%～95% |
|||
Our Services & Strength
1 . Your inquiry about our products or the price will be replied within 24 hours !
2 . We provide 2 years for warranty and lifelong maintaining , you will appreciate our warm after - sale service .
3 . We will delivery goods as you demand , you can choose the cheaper and more convenient way !
4 . Apart from the outdoor led display , we also can offer you rental & fixed Led screen video wall,
transparent led display , led flexible display , indoor & outdoor led signs , led poster and led ads , etc .
