R38L Self-Drilling Anchor Bolt for Constructional Engineering
As a tension member deep in the stratum, one end of the bolt is connected with the engineering structure, and the other end is deep in the stratum. The whole bolt is divided into a free section and an anchoring section. The free section transmits tension from the bolt head to the anchor solid, while the anchoring section binds the prestressed reinforcement to the soil layer, increasing friction and bearing capacity.
Product Specifications
| Item |
Inner diameter (mm) |
Ultimate load strength (KN) |
Yield strength (KN) |
Weight (kg) |
| R25N |
14 |
200 |
150 |
2.3 |
| R32N |
21 |
280 |
230 |
3.1 |
| R32N |
18.5 |
280 |
230 |
3.4 |
| R32S |
16 |
360 |
280 |
3.6 |
| R32SS |
15 |
405 |
350 |
4.1 |
| R38N |
21 |
500 |
400 |
4.8 |
| R38N |
19 |
500 |
400 |
5.5 |
| R51L |
36 |
550 |
450 |
7 |
| R51N |
33 |
550 |
630 |
8.4 |
| T30 |
11 |
320 |
260 |
3.41 |
| T30 |
14 |
275 |
220 |
2.87 |
| T30 |
16 |
245 |
190 |
2.7 |
| T40 |
16 |
660 |
525 |
7 |
| T40 |
20 |
540 |
425 |
5.6 |
| T52 |
26 |
925 |
730 |
9.87 |
| T73 |
53 |
1160 |
970 |
14.1 |
| T73 |
56 |
1035 |
830 |
10.75 |
| T76N |
52 |
1600 |
1200 |
15 |
| T76S |
45 |
1900 |
1500 |
19.7 |
| T103 |
51 |
3660 |
2670 |
44.6 |
| T130 |
60 |
7940 |
5250 |
75 |
Product Features
- Made from high-strength alloy strip steel
- Simple installation process
- No resin cartridges required
- High friction force between bolt and rock mass
- Excellent shear resistance and tensile strength
- Includes high-strength plate for even force distribution

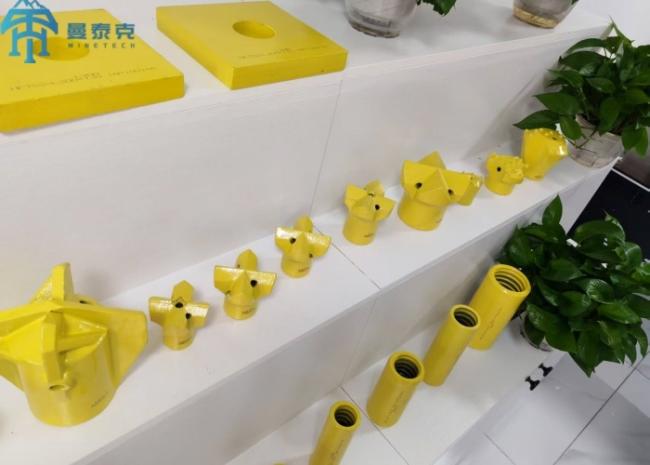

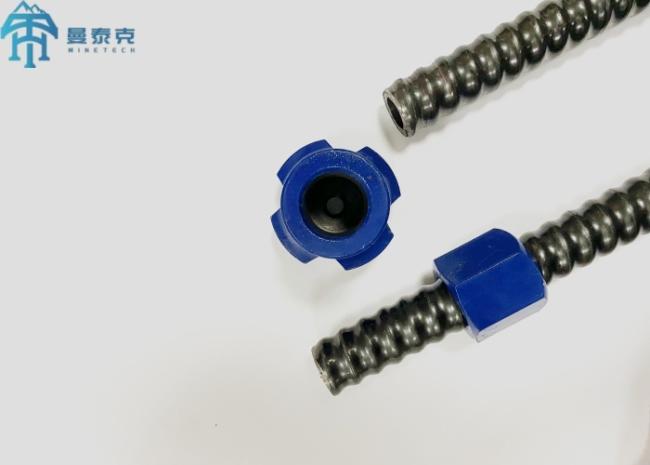

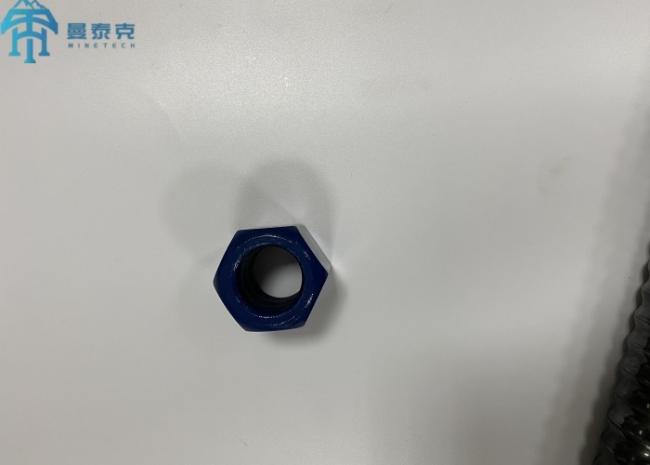

Product Images
About Hebei Minetech Machinery Technology Co, Ltd.
Located in Hebei province of China, we are a professional manufacturer and exporter of tapered and thread rods, chisels, button bits, and other mining drilling tools. With over a decade of experience and a team of professional engineers, we provide complete solutions for mining machinery.
Order Information
- Payment Methods: T/T (Telegraphic Transfer), Western Union, or L/C at sight
- Handling Time: Within 10 days for stock items
- Shipping Options:
Sample orders: Courier express (DHL/UPS/TNT/FEDEX) or by air
Bulk orders: By air or by sea
- Quality Control: Strict inspection and testing before shipping
- After-Sales Service:
- 24-hour response to inquiries (excluding holidays)
- Available technical support
- Free replacements for confirmed quality issues
