| Price | negotiate |
| MOQ | 1pairs |
| Delivery Time | 3-6working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE,FCC,RoSH |
| Model Number | LNK-HF201KM-10 |
| Packaging Details | HDMI Fiber Extender Standard Export Packages |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pairs/month |
| Place of Origin | China | Maximum data rate | 18Gbps |
| Packaging Details | HDMI Fiber Extender Standard Export Packages | Maximum pixel clock | 600MHz |
| Power supply | The power adapter: DC 5V | Model Number | LNK-HF201KM-10 |
| Supply Ability | 5000pairs/month | Certification | CE,FCC,RoSH |
| Brand Name | E-link | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Price | negotiate | Delivery Time | 3-6working days |
| Minimum Order Quantity | 1pairs | Impedance | 100Ω |
| Interface | SFP model – LC connector | Fiber type | Single-mode or Multimode |
Fiber Extender 4K HDMI 5W 10km Over SMF 300m Over OM3 MMF
4K HDMI Fiber Extender Advantages
►Transmits 4K HDMI2.0 video signals up to 10km over SMF, 300 meters over OM3 MMF
►Support keyboard and mouse signal transmission
►Uncompressed HDMI 2.0 video transmission up to 4K@60Hz 4:4:4 8-bit
►Supports HDCP 2.2
►Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse,
fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
►Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse),
fiber optic connector (LC-female), and 5 VDC power connector (DC-jack-female)
►Simple to install, plug and play
Overview
LNK-HF201KM KVM Video Signal Extender HDMI 2.0, USB (keyboard / mouse). It consists of two
modules that are interconnected by means of single-mode or multimode fiber optic cable. It allows
working at a maximum resolution of 4K HDMI video. The maximum cable distance can be up to 10 km
via Single Mode Fiber or 300 meters via OM3 Multimode Fiber.
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI 2.0 and HDCP 2.2 |
| Maximum pixel clock | 600MHz | |
| Maximum data rate | 18Gbps | |
Resolution range |
800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, 4096 x 2160P | |
| K/M | Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode or Multimode | |
| Wavelength | Single-mode 1310nm, Multimode 850nm | |
| c | 18Gbps | |
| Transmission distance |
OM3 Multimode fiber: 300M Single mode fiber: 10KM |
|

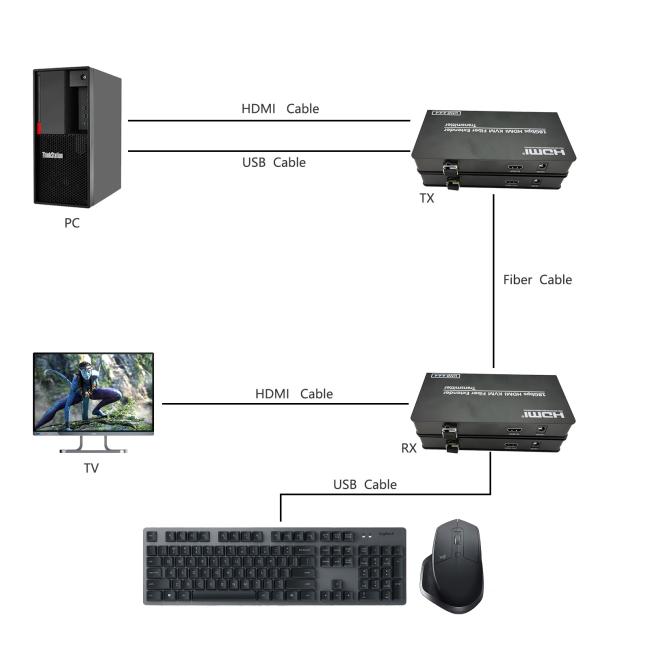

Application
Ordering Information
| Model | Description |
| LNK-HF201KM-M | 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3 Multimode Fiber, 300 meters |
| LNK-HF201KM-10 | 4K HDMI 2.0 KVM USB over Fiber Optic Extender, Single-mode Fiber, 10km |
