| Price | USD29.9/PCS |
| MOQ | 1pcs |
| Delivery Time | 3-5 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE |
| Model Number | LNK-IMC104G-SFP |
| Packaging Details | Mini Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability | 1000000PCS/Month |
| Connector | 4 x RJ45 | Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Place of Origin | China | Input Power | 12~48VDC (Terminal Block) |
| Packaging Details | Mini Industrial PoE Switch Standard Carton Packaging | Standard | IEEE802.3af/at |
| Model Number | LNK-IMC104G-SFP | Power Pin Assignment | 4/5(+), 7/8(-) |
| Supply Ability | 1000000PCS/Month | Certification | CE |
| Brand Name | E-link | Payment Terms | L/C, T/T, Western Union, MoneyGram, PayPal |
| Price | USD29.9/PCS | Delivery Time | 3-5 working days |
| Minimum Order Quantity | 1pcs | Optical Port | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |

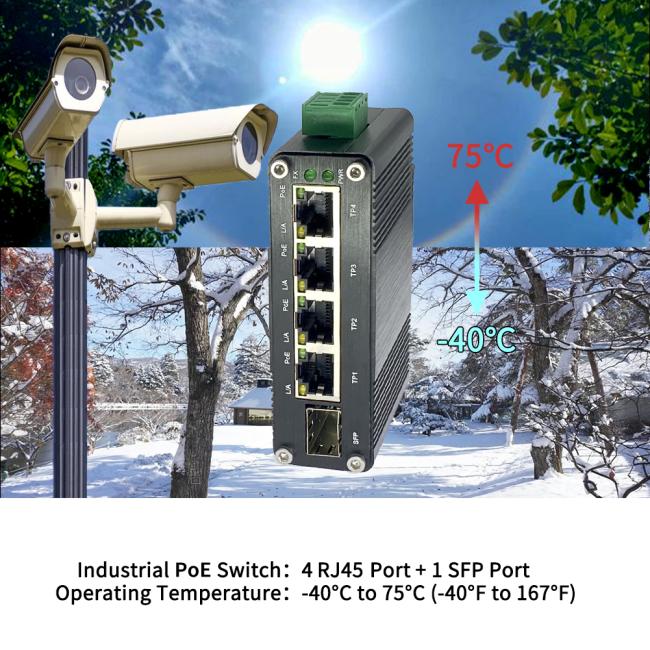

Mini Industrial Gigabit 4-Port 802.3at PoE + 1-Port SFP Ethernet Switch
Mini Industrial PoE Switch Advantages:
100/1000BASE-X SFP slots for SFP type auto detection
4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
12~48VDC wide range power input with power booster function
Supports 802.3x Flow control
Supports DIN-Rail and Wall-mount installation
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Industry standard design, dustproof and close design IP40, rugged high-strength metal case
-40°C to 80°C (-40°F to 176°F) operating temperature
Mini Industrial PoE Switch Technical Indexes
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29m |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
Mini Industrial PoE Switch Overview
LNK-IMC104GP-SFP Series is a Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet
Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match
the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature
range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100%
burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution
for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC104G-SFP |
Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster |
