| Price | negotiation |
| MOQ | 1 pcs |
| Delivery Time | 5-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE |
| Model Number | LNK-2400G |
| Packaging Details | Ethernet Switch Standard Export Package |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability | 1000 pcs/month |
| Place of Origin | China | Keyword | 6 ports ethernet switch |
| Packaging Details | Ethernet Switch Standard Export Package | Power supply | DC5V 3A (external) |
| Model Number | LNK-2400G | Supply Ability | 1000 pcs/month |
| Certification | ROHS,FCC,CE | Wavelength | 850nm/1310nm/1550nm |
| MTBF | 100,000 hours | Brand Name | E-link |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal | Price | negotiation |
| Delivery Time | 5-12 working days | Minimum Order Quantity | 1 pcs |
| Access mode | 10/100/1000Mbps | Operating temperature | -10~55ºC |

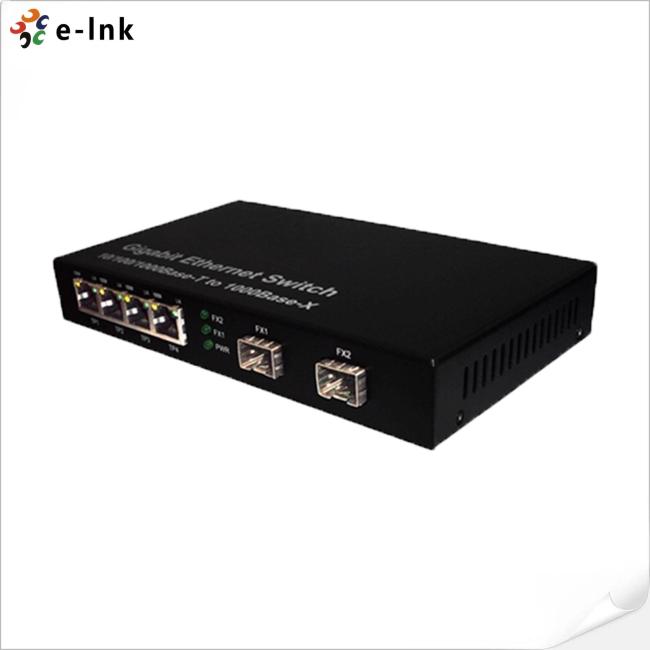

Ethernet Switch 10/100/1000M Media Converter 2-TX + 2-FX SFP Port Fiber Switch
Ethernet Switch Hub Advantages
► Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)
► Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
► 1000M Fiber port supports 1000M and Full Duplex mode.
► Supports flow control and broadcast storm protection.
Technical Indexes
|
Standard |
IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX |
|
Transmission distance |
Fiber Optic: Multimode Fiber:50/125,62.5/125μm Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km) Category-5 twisted pairs: 100m |
|
Port |
4*RJ45 ports: Connecting with STP/UTP category-5 twisted pairs 2*SC socket |
|
Conversion means |
Media conversion, store-and-forward |
|
Flow control |
Full duplex: flow control; half duplex: back pressure |
|
Error rate |
<10-9 |
|
MTBF |
100,000 hours |
|
MAC address table |
1K |
|
Power consumption |
4W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
Overview

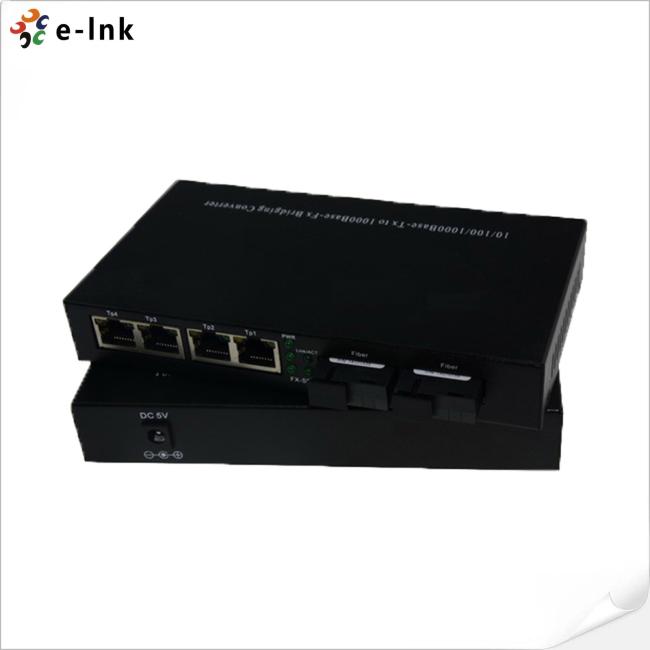

LNK-2400G is 4 port Gigabit Ethernet Switch with four 10/100/1000M UTP ports and two 1000M SC sockets, which converting the 2 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Ordering Information
|
Item |
Description |
|
LNK-2400G |
10/100/1000Base-T to 1000Base-F, 2 Fx Port + 4 RJ-45 Ports, Multi-mode, 550m, 1310nm, SC, standalone, external power adaptor |
|
LNK-2400GS-20 |
10/100/1000Base-T to 1000Base-F, 2 Fx Port + 4 RJ-45 Ports, Single Mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
LNK-2400G-20 |
10/100/1000Base-T to 1000Base-F, 2 Fx Port + 4 RJ-45 Ports, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
