| Price | To be negotiated |
| MOQ | 1 pair |
| Delivery Time | 5-15working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | RoHS,CE,FCC |
| Model Number | LNK-MHA4K |
| Packaging Details | HDMI Fiber Extender Standard Export Package |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 500 Pair/month |
| Place of Origin | China | Packaging Details | HDMI Fiber Extender Standard Export Package |
| Dimension | 73x44x17mm | Model Number | LNK-MHA4K |
| Supply Ability | 500 Pair/month | Certification | RoHS,CE,FCC |
| Weight | 60g | Power Supply | 5~12V DC |
| Brand Name | E-link | Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Audio Interface | 3.5MM external stereo audio | Price | To be negotiated |
| Delivery Time | 5-15working days | Minimum Order Quantity | 1 pair |

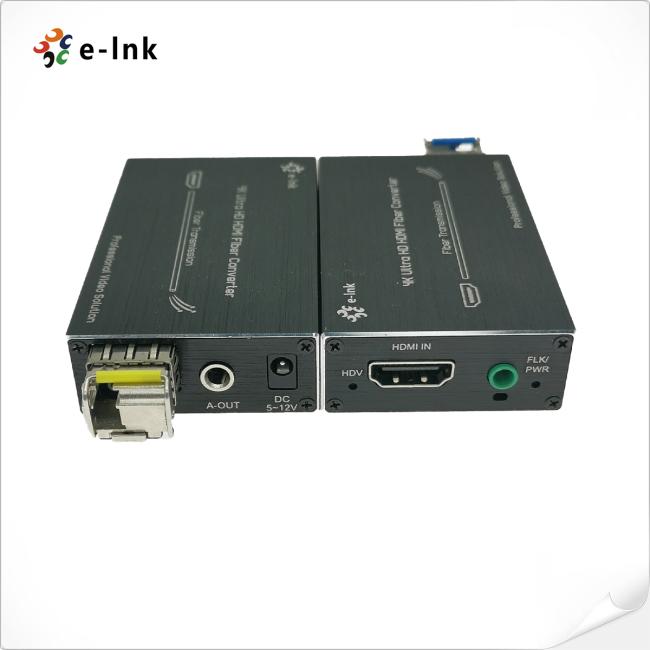

HDMI Fiber Extender Micro Mini 4K HDMI To Fiber Converter 10.3Gbps
HDMI Fiber Extender Advantages
► HDMI 1.4a and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Data rate up to 10.3Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to 4K*2K@30Hz Resolution
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Connector | Female HDMI type A |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Chroma Subsampling | Color space, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Audio Interface | 3.5MM external stereo audio |
| MTBF | 100,000 hours |
| Dimension (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) |
| Weight | 60g / 0.13 lb |
| Power Supply | 5~12V DC |
| Power dissipation | <5W |
| Safety Approvals | CE, FCC, Rohs |
Overview
The LNK-MHA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal and stereo audio over optical fiber up to distances of 80km, at a resolution of 4Kx2K.
Ordering Information
| Model | Description |
| LNK-MHA4K-MM | Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S20 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S40 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-80 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
| LNK- MHA4K-S80 | Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input |
