Managed And Unmanaged Fiber Industrial Ethernet Switch 24 Port 10Base-T 100Base-T

Price negotiation
MOQ 1 unit
Delivery Time 5-10 working days
Brand E-link
Place of Origin China
Certification ISO9001
Model Number LNK-GYM7024G
Packaging Details Fiber Media Converter Standard Package
Payment Terms T/T, Western Union, MoneyGram,PayPal
Supply Ability 10000pcs/Month

Product Details

Product Specification

Installation DIN Rail/Wall-mountable Place of Origin China
Packaging Details Fiber Media Converter Standard Package Dimension 160mm x 130mm x 70mm (L x W x H)
Model Number LNK-GYM7024G Supply Ability 10000pcs/Month
Certification ISO9001 Protection grade IP40 aluminum case
Brand Name E-link Payment Terms T/T, Western Union, MoneyGram,PayPal
Price negotiation Delivery Time 5-10 working days
Minimum Order Quantity 1 unit Power access mode Phoenix terminal, DC seat
Power input DC 9-57V RJ45 24x10/100/1000Base-TX

Product Description

Managed Industrial Ethernet Switch 24 x 10/100/1000Base-T Gigabit RJ45 Ports​

Industrial Ethernet Switch Advantages

  • 24x10/100/1000Base-T Ethernet ports
  • Support IEEE802.3az energy efficient Ethernet technology
  • Power input polarity protection design, no worry about wrong operation

Specifications

Physical Port
RJ45 port and speed 24x10/100/1000Base-TX
Parameters
Ethernet standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x flow control and back pressure

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3ad port trunk with LACP

IEEE 802.3ah Configuring Ethernet OAM

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1x Port Authentication Network Control

IEEE 802.1Q VLAN tagging

IEEE 1588

Power Information
Power access mode Phoenix terminal, DC seat
Redundant power input DC 9-57V
Overload protection Yes
Power reverse Support
Power consumption Full-load<15W
Physical Property
Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 160mm x 130mm x 70mm (L x W x H)
Installation mode DIN Rail/Wall-mountable
Weight 1000g
Working Environment
Operating Temperature -40℃~80℃
Operating Humidity 5%~90% non-condensing
Storage Temperature -40℃~85℃

Overview

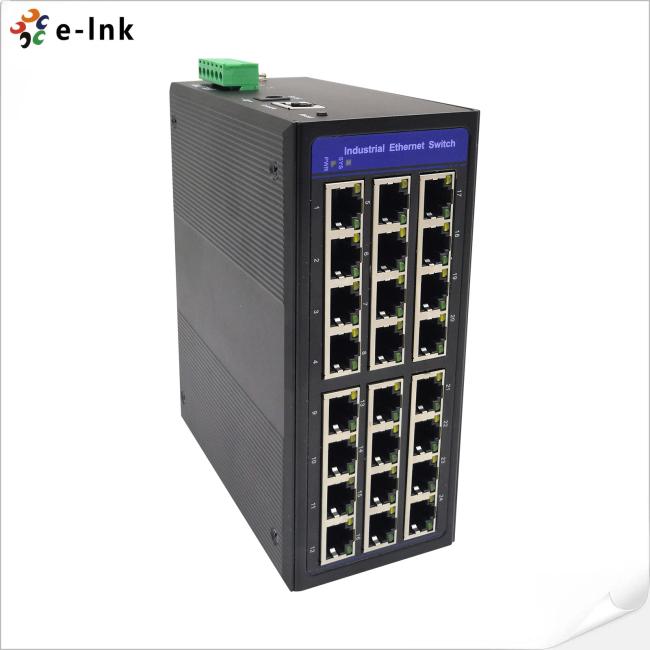

LNK-GYM7024G Series is a new generation industrial Managed Ethernet switch with 24-Port Ethernet ports that provide stable and reliable Ethernet transmission.

Order Information

Model Description
LNK-GYM7024G Managed Industrial 24-Port 10/100/1000Base-T Ethernet Switch

Mounting Options



► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
