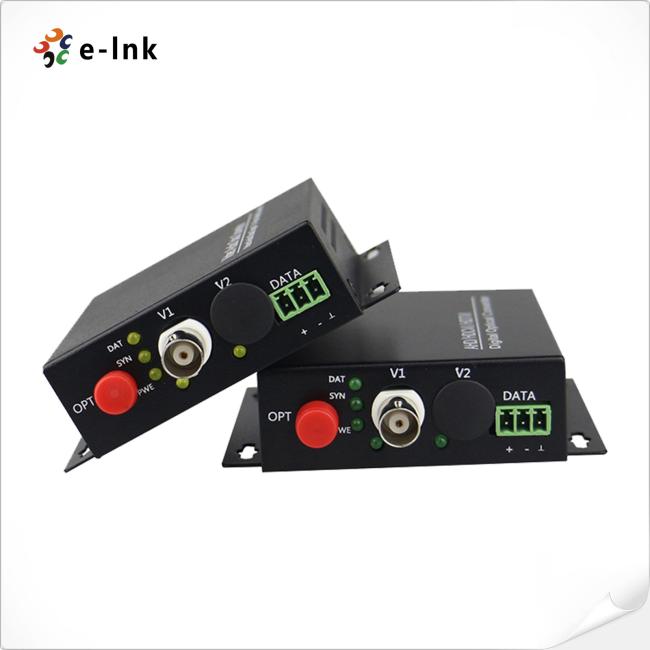

Fiber Converter 1-Channel HD-AHD/CVI/TVI/CVBS Video Over Fiber Optic Transceiver
Fiber Optic Video Converter Advantages
► Support HD-AHD/CVI/TVI highest resolution 720P, 1080P.
► 10-bit digital video encoding and uncompressed
► Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc
► Strictly selection material and quality control in order to ensure high quality and high reliability
Technical Indexes
|
Optical |
Fiber Type |
Single mode fiber LC |
|
Wavelength |
Transmitter |
|
|
|
Self-adaption cable equilibrium |
720p:75-5 coaxial cable,500m |
|
Input/Output Impedance |
75Ω |
|
|
|
Transmission Media |
Coaxial cable |
|
Baud Rate |
1200～9600bit/s |
|
|
Indicators |
SYN, PWR, DATA, VIDEO |
|
|
Mean time between failures (MTBF) |
＞100 000 hours |
|
|
Installation |
Wall-mounted |
Overview
E-link HD Video Converter can simultaneously transmit 1 channel HD-TVI/CVI/AHD over one multi-mode or single mode optical fiber.
Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.
Ordering Information
|
Item |
Description |
|
LNK-H1V-T/R |
1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-H1V1D-T/R |
1-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HD1V-T/R |
1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-HD1V1D-T/R |
1-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs |
