| Price | negotiation |
| MOQ | 1 unit |
| Delivery Time | 5-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | LNK-GYM7208G-SFP |
| Packaging Details | Fiber Media Converter Standard Package |
| Payment Terms | T/T, Western Union, MoneyGram,PayPal |
| Supply Ability | 10000pcs/Month |
| Place of Origin | China | RJ45 port and speed | 8x10/100/1000Base-TX |
| Packaging Details | Fiber Media Converter Standard Package | Dimensions | 138mm x 106mm x 41mm (L x W x H) |
| Redundant power input | DC 9-56V / DC 5V | Model Number | LNK-GYM7208G-SFP |
| Supply Ability | 10000pcs/Month | Certification | ISO9001 |
| Weight | 600g | Protection grade | IP40 aluminum case |
| Brand Name | E-link | Payment Terms | T/T, Western Union, MoneyGram,PayPal |
| Fiber port and speed | 2x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Price | negotiation |
| Delivery Time | 5-10 working days | Minimum Order Quantity | 1 unit |

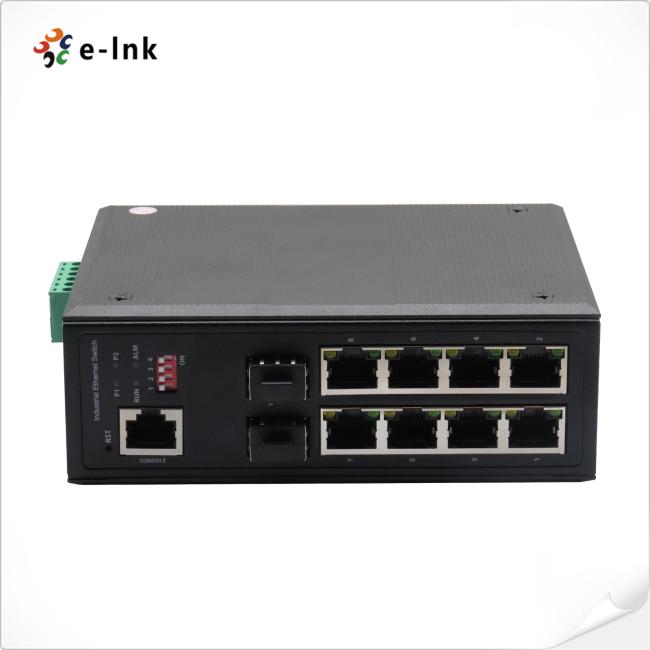

Industrial Ethernet Switch Managed Gigabit 8x10/100/1000M RJ45 + 2x100/1000M SFP
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Power input polarity protection design, no worry about wrong operation
► Installation method: DIN rail /Wall mounting.
Specifications
| Physical Port | |
| RJ45 port and speed | 8x10/100/1000Base-TX |
| Fiber port and speed | 2x1000Base-FX SFP (Dual Mode, Auto Detection) |
| Parameters | |
| Ethernet standards |
IEEE 802.1x authentication IEEE 802.1q-Tagging IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree IEEE 802.3ad Trunking IEEE 802.3x flow control IEEE 802.1D Spanning Tree IEEE802.1ab LLDP |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 9-56V / DC 5V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 138mm x 106mm x 41mm (L x W x H) |
| Installation mode | DIN trail/wall-mountable |
| Weight | 600g |
| Working Environment | |
| Operating Temperature | -40℃~80℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~80℃ |
Overview
LNK-GYM7208G-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-TX and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission.
Order Information
| Model | Description |
| LNK-GYM7208G-SFP | Managed 8-Port 10/100/1000Base-T + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
