| Price | USD77/PCS |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE |
| Model Number | LNK-IP1200A-2WP |
| Packaging Details | Accessories Standard Carton Packaging |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, PayPal |
| Supply Ability | 1000000PCS/Month |
| Place of Origin | China | Packaging Details | Accessories Standard Carton Packaging |
| Material | Metal | Ethernet Interface | RJ45 |
| Model Number | LNK-IP1200A-2WP | Supply Ability | 1000000PCS/Month |
| Certification | CE | Weight | 0.15KG |
| Without PoE | 1200m | Brand Name | E-link |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, PayPal | 2-Wire Connector | 2-Pin Terminal |
| Price | USD77/PCS | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Dimension (W×H×D) | 78mm×70mm×21mm |
| With PoE | 300m | Power | DC12V~80V (PoE: DC44V~58V) |
Accessories 1Ch Ethernet over 2-Wire Transceiver with PoE+ 300M
Accessories Advantages:
· Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m
· Transmission Media: 2-wire cable
· Input Voltage: DC12V~80V (POE: DC44V~58V)
· Support Power over 2-Wire & Power over Ethernet at same time
· Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient
· Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
· Advanced 128-bit AES encrypted transmission and PoE+ power technology
· Excellent Protection: Built-in transient protection; industrial temperature range.
· Excellent lightning protection and strongly Anti-interference, surge protection.
Technical Indexes
| Technology | Standard |
HomePlug AV IEEE802.3 10/100 Ethernet (100Mbps) IEEE802.3U Fast Ethernet |
| Encryption Algorithm | Algorithm | 128-bit AES |
| Power | Supply mode | Power adapter |
| Voltage range | DC12V~80V (PoE: DC44V~58V) | |
| Consumption | <2W | |
| Ethernet Interface | Port | RJ45 |
| Signal Type | 10/100Base-Tx | |
| Distance | 100M (Max) | |
| 2-Wire Connector | Port | 2-Pin Terminal |
| Transmission rate | 80Mbps TCP, 90Mbps UDP | |
| Distance | 1200M (Max) | |
| Transmission Distance | Without PoE | 1200m |
| With PoE | 300m | |
| Standard: IEC61000-4-2 | ||
| Mechanical | Dimension (W×H×D) | 78mm×70mm×21mm |
| Weight | 0.15KG | |
| Material | Metal | |
| Color | Black |
Overview

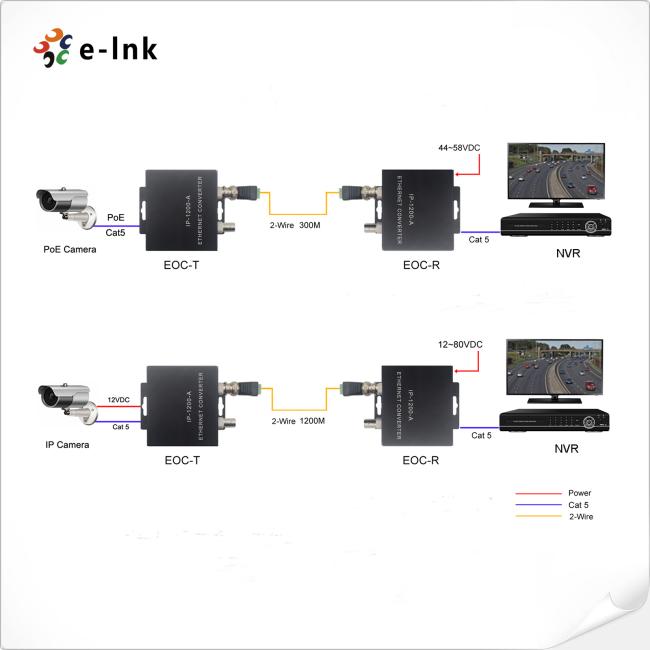

The LNK-IP1200A-2W Ethernet over 2-wire Transceiver is a new designed Ethernet Extender Device.
This Device is designed to extend Ethernet Network signal and Power over existing 2-wire cable, and able to live transmit
Power + Network date signal, the Max distance is up to 1200M(Power: 300M). These series products are widely used
in CCTV surveillance and remote network extension.
Ordering Information
| LNK-IP1200A-2W | Ethernet over 2-Wire Transceiver, 1200m transmission distance, including Master and Slave, not including power supply adapter |
| LNK-IP1200A-2WP | Ethernet over 2-Wire Transceiver with PoE+, 300m transmission distance, including Master and Slave, not including power supply adapter |
