| Price | Negotiation |
| MOQ | 1 pair |
| Delivery Time | 5-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE |
| Model Number | LNK-SDI-4V |
| Packaging Details | SDI Fiber Converter Standard Export Package |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability | 1000 pairs/month |
| Operating Temperature | -10℃～＋55℃ | Input number | 4 Channel BNC |
| Place of Origin | China | Keyword | HD-SDI to fiber converter |
| Packaging Details | SDI Fiber Converter Standard Export Package | Data | Max 57600bps for RS485 |
| Model Number | LNK-SDI-4V | Supply Ability | 1000 pairs/month |
| Certification | ROHS,FCC,CE | Brand Name | E-link |
| Payment Terms | L/C, T/T, Western Union, MoneyGram, Paypal | Price | Negotiation |
| Delivery Time | 5-12 working days | Minimum Order Quantity | 1 pair |
| Optics Channel | 1 Channel | BNC Connector | FC/PC（SC/PC optional） |

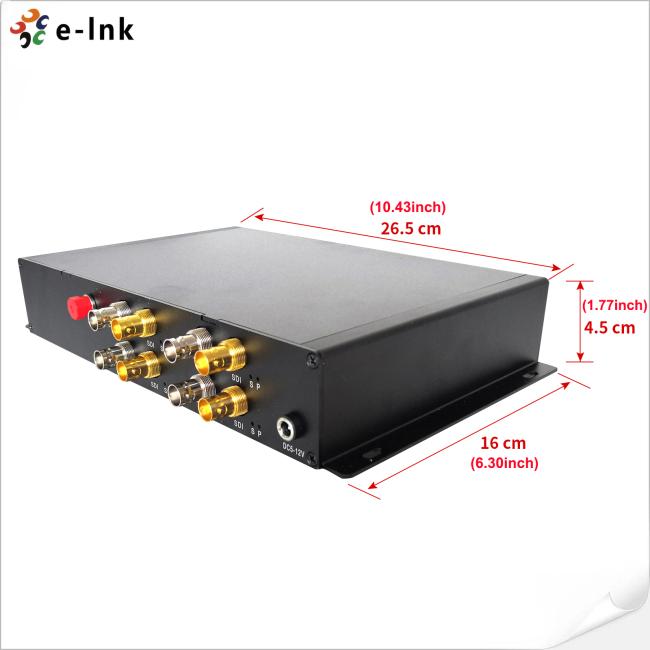

Fiber Transceiver 4 Channel HD SDI 1080P High-Definition Fiber Video Converter
HD-SDI Fiber Extender Advantages
►
4
channel
HD-SDI
video
transmission
over
optic
fiber
►
Automatic
cable
equalization
to
ensure
signal
integrity
►
Directly
compatible
with
HD-SDI
camera
systems
and
support
4Ch
Loop
output
►
Long
transmission
capability
at
least
10
km
(6.2miles)
,
up
to
100
km
Technical Indexes
|
Serial TV, BNC Input |
270Mbit/s - 1.48Gbit/s |
|
Input number: 4 |
|
|
Equilibrium: 0-150m @1.485Gb/s |
|
|
Optics |
Channel: 1 |
|
Type: single-mode |
|
|
Wavelength: 1310nm /1550nm |
|
|
Transmission distance (550m-100Km) |
|
|
Serial TV, BNC output (EO/OE) |
Output number:4 |
|
Signal level: 800mV nominal |
|
|
Rise/fall time: 200ps indication |
|
|
Analog audio |
Input/ output impedance: 600Ω equilibrium |
|
Max. input/output level: +15 dBu |
|
|
Power and environmental indication |
Operating temperature: -40℃～＋75℃ |
|
Pressure: 1A@12VDC |
|
|
Power: 12 W |
|
|
SDI video format supports |
625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30; 1080i 23/24/30; |
Overview
LNK-SDI-4V
Series
supports
4-channel
HD-SDI
standard
high-definition
video
signal
transmitted
via
single
fiber
optical
cable.
E-link
HD-SDI
Video
over
Fiber
Converters
includes
one
transmitter
and
one
receiver
for
1080P
HD-SDI
signal.
E-link
HD-SDI
Fiber
Converters
can
transmit
4-Ch
HD-SDI
Video
signal
through
a
single
optical
fiber.
The
video
quality
is
up
to
broadcast
standard.
Ordering
Information
|
LNK-SDI-4V |
4-Ch SDI Video, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-SDI-4V1R |
4-Ch SDI Video + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-SDI-4V1A |
4-Ch SDI Video + 1-Ch Forward Audio, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
