| Price | Negotiated |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, RoHS，ISO9001 |
| Model Number | LNK-LED108G |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) | Place of Origin | China |
| Packaging Details | standard export package | Dimensions | 150 x 115 x 50 mm |
| Model Number | LNK-LED108G | Supply Ability | 1000pcs/mouth |
| Certification | CE, FCC, RoHS，ISO9001 | Weight | 0.6Kg |
| Power Supply | 12~48VDC (Non PoE) 48~57VDC (PoE) | Brand Name | E-link |
| Payment Terms | T/T,PayPal | Price | Negotiated |
| Delivery Time | 5-12working days | Minimum Order Quantity | 1pcs |
| Distance | Depend on SFP+ modules used, 20km recommended. | Resolution | 1920*1080@60Hz |

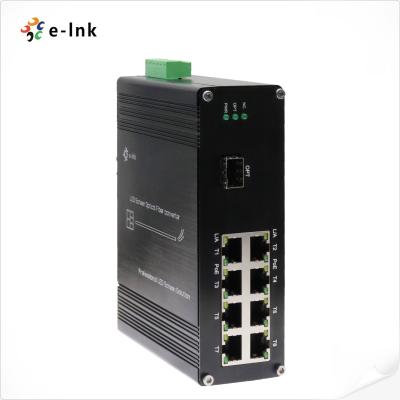

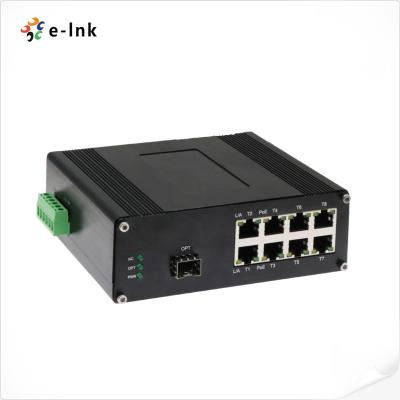

LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports Advantage
· 1 x 10G SFP+ fiber optical port
· 10 x Gigabit Ethernet ports, PoE optional
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

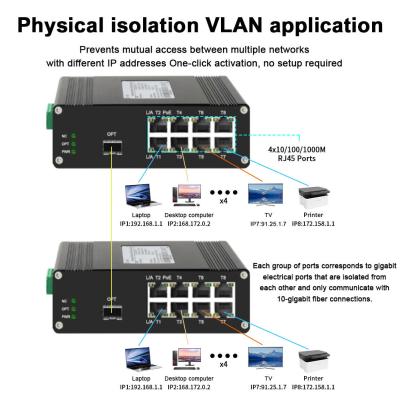

· Not support VLAN
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports Overview

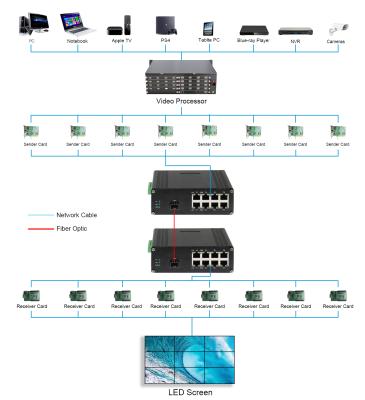

The E-link LNK-LED108G fiber converter offers a cost-effective way to convert optical signals to electrical signals,
or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex,
efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
|
Connector: |
8 x 10/100/1000M RJ45 |
|
Optical Port: |
1 x 10G SFP+ |
|
Distance |
Depend on SFP+ modules used, 20km recommended. |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Non PoE) 48~57VDC (PoE) Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
5W Max (PoE in use) 253W Max (PoE not in use) |
|
Resolution |
1920*1080@60Hz |
|
Compatible brand |
NovaStar, Colorlight |
|
Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
|
Dimensions (WxDxH): |
150 x 115 x 50 mm |
|
Weight: |
0.6Kg |
|
Casing: |
Aluminum Case |
|

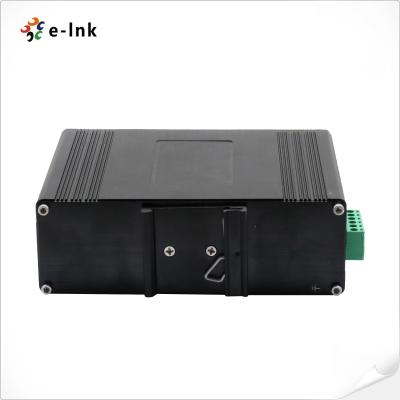

Mounting Options: |
DIN-Rail |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports Ordering Information
|
Model |
Description |
|
LNK-LED108G |
Industrial LED Screen Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports. |
|
LNK-LED108GP |
Industrial LED Screen PoE Fiber Converter with 1x10G SFP+ Port + 10/100/1000BASE-T 802.3at Ports. |
