| Price | Negotiated |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, RoHS，ISO9001 |
| Model Number | LNK-LED104G |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Operating Temperature | 0℃ ~ 55℃ | Place of Origin | China |
| Packaging Details | standard export package | Dimensions | 130 x 105 x 28mm |
| Model Number | LNK-LED104G | Supply Ability | 1000pcs/mouth |
| Certification | CE, FCC, RoHS，ISO9001 | Weight | 350g |
| Power Supply | Power input: 5-12V DC | Brand Name | E-link |
| Payment Terms | T/T,PayPal | Price | Negotiated |
| Delivery Time | 5-12working days | Minimum Order Quantity | 1pcs |
| Distance | Single mode fiber 10km | Resolution | 1920*1080@60Hz |

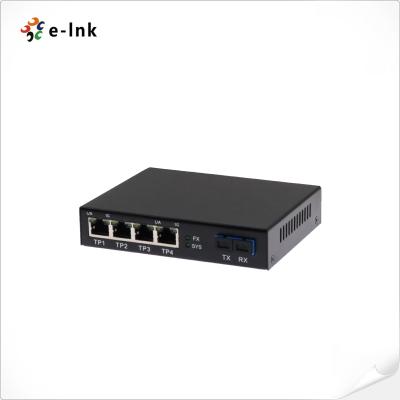

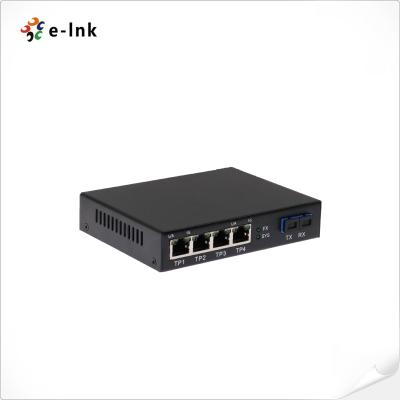

LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports Advantage
· 1 x 10G SC duplex optical port, single mode 10KM distance
· 4 x Gigabit Ethernet ports
· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
· Not support VLAN
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports Overview

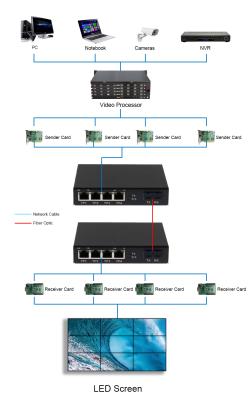

The E-link LNK-LED104G fiber converter offers a cost-effective way to convert optical signals to electrical signals,
or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex,
efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
|
Connector Type |
1 x 10G SC duplex port 4 x Gigabit Ethernet RJ45 ports |
|
Distance |
Single mode fiber 10km |
|
Resolution |
1920*1080@60Hz |
|
Compatible brand |
NovaStar, Colorlight |
|
Connection method |
Used in pairs, each ports must be connected accordingly, Such as Device A’s Port-1 must link to Device B’s Port-1 |
|

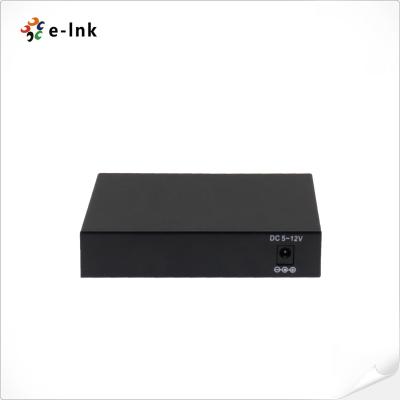

Power Supply |
Power input: 5-12V DC |
|
Working Environment |
Operating Temperature: 0℃ ~ 55℃; Storage Temperature: -40℃ ~ 75℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing |
|
MTBF |
100,000 hours |
|
Dimensions |
130 x 105 x 28mm |
|
Weight |
350g |
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports Ordering Information
|
Model |
Description |
|
LNK-LED104G |
LED Screen Fiber Converter with 1x10G SC Fiber Port + 4 x 10/100/1000M Ethernet RJ45 Ports, single mode fiber 10km. |
