| Price | $39-270 |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, RoHS |
| Model Number | LNK-MN-100MC-SFP |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Operating Temperature | 0~50ºC | Input voltage | DC 5V~12V |
| Place of Origin | China | Packaging Details | standard export package |

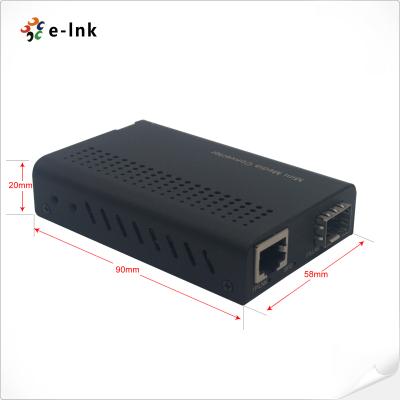

| Dimensions | 58mm (W)×20mm (H)×90 mm (L) | Model Number | LNK-MN-100MC-SFP |
| Supply Ability | 1000pcs/mouth | Certification | CE, FCC, RoHS |
| Wavelength | 850nm/1310nm/1550nm | Brand Name | E-link |
| Payment Terms | T/T,PayPal | Price | $39-270 |
| Delivery Time | 5-12working days | Power consume | <3W |
| Minimum Order Quantity | 1pcs | Access mode | 10/100Mbps |
Mini 10/100Base-TX to 100Base-SFP Media Converter Advantage
► 10/100Base-TX UTP to 100Base-FX fiber media converter
► Support IEEE802.3 & 802.3U Fast Ethernet Standards
► SFP Port
► DIP switch to set different configuration
► LFP (Link Fault Pass-through) support
► Support jumbo frame
► Compact package size
Mini 10/100Base-TX to 100Base-SFP Media Converter Overview
The mini 10/100Base-TX to 100Base-FX SFP media converter is fully compliant with IEEE 802.3 & 802.3u
Fast Ethernet Standards. The converter can support auto MDI-MDIX function, flow control for full and half
duplex operation, etc.

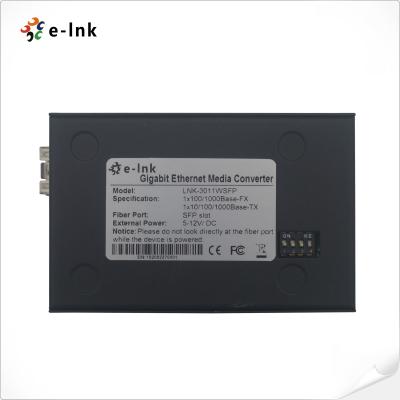

A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the
different operating mode (Force FX to 100M, pass through mode, etc).
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps |
|
Standard |
IEEE802.3, IEEE802.3u |
|
100Base-FX |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
Multi-mode:
|
|
single
mode:
|
|
|
Cat-5 twisted pairs: 100m |
|
|
|
Store and Forward mode or Cut-Through mode |
|
Flow control |
Full duplex: flow control; |
|
Half duplex: back pressure |
|
|
Input voltage |
DC 5V~12V |
|
Power consume |
<3W |
|
Operating temperature |
0~50ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
58 (W) x 20 (H) x 90 (L) (mm) |
Mini 10/100Base-TX to 100Base-SFP Media Converter Ordering Information
|
Item |
Description |
|
LNK-MN-100MC-SFP |
Mini 10/100Base-TX to 100BASE SFP Media Converter, excl. SFP modules, standalone, external power adaptor |
