| Price | $5-269 |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, RoHS |
| Model Number | LNK-R12-2-A |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Operating Temperature | -10~55ºC | Place of Origin | China |
| Packaging Details | standard export package | Dimensions | 45mm（H）x 485mm（W）x 270mm（D） |
| Model Number | LNK-R12-2-A | Supply Ability | 1000pcs/mouth |
| Certification | CE, FCC, RoHS | Brand Name | E-link |
| Payment Terms | T/T,PayPal | Power output | 36W maximum |
| Price | $5-269 | Delivery Time | 5-12working days |
| Output voltage | DC12V | Minimum Order Quantity | 1pcs |
| Number of slots | 12 | Structure | 1U rack |

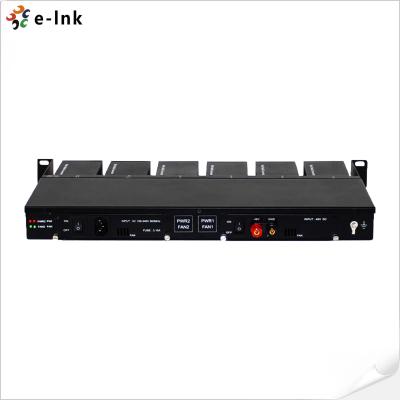

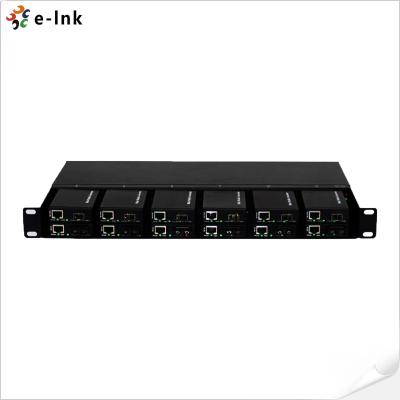

1U 12 Slots Mini Fiber Media Converter Rack Advantage
► Suitable for standard 19 inch rack
► 1U, maximum 12 slots capacity
► Supports redundant power supply modules
► Supports hot-swappable operating
► Two side LED indicators (front and rear)
1U 12 Slots Mini Fiber Media Converter Rack Overview
The 1U 12 slots Fiber media converter rack is specially designed for mini Fiber Media Converter.
The chassis can install up tp 12 mini media converters, which provides for space saving and easy
cabling. The chassis works with dual redundant power supply.
|
Parameter |
Specifications |
|
Number of slots |
12 |
|
Structure |
1U rack |
|
Dimension |
45mm(H)x 485mm(W)x 270mm(D) |
|
Power input |
AC Voltage: AC 85~265V; frequency: 50/60 Hz |
|
Output voltage |
DC12V |
|
Power output |
36W maximum |
|
Ripple |
≤20 mv |
|
Power configuration |
Single power supply, or dual power supply for warm backup mode |
|
LED indication |
POWER (power supply) |
|
Operating temperature |
-10~55ºC |
|
|
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
1U 12 Slots Mini Fiber Media Converter Rack Ordering Information
|
Item |
Description |
|
LNK-R12-2-A |
1U 12-Slot Mini Media Converter Rack, dual power supply AC220V |
