| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Model Number | LNK-FS4804HC-SI |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Place of Origin | China | Packaging Details | Carton Packaging |
| Storage temperature | -40°C～+70°C | Dimension | 438.48mm*473mm*43.4mm |
| Model Number | LNK-FS4804HC-SI | Working temperature | 0°C～50°C (0m～1800m) ; |
| Supply Ability | 1000 pcs/month | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal | Indicator light | Power indicator, system, connection/sending and receiving instructions |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Humidity | 5%RH～95%RH, Non-condensing. |
| Power | ≤230W |
Advantages
► With 1292Gbps backplane bandwidth, the industry the highest performance (1U TOR)
► The layer 3 switching hardware routing, wire speed packet rate reached 852.32Mpps, L2 / L3 forward full speed
► Extensible 48 biggest 10GE interface, the highest density (1U TOR), meet the demand of high-density 10G server access
► Extensible 4 high-performance 40G QSFP+ interface, 40G QSFP+ interface allows for 4 to 10GE interface; Provide flexible network capacity
► Extensible 8 10G electric ports, provide flexible network capacity
Technical Indexes
|
Model |
LNK-FS4804HC-SI |
|
Basic Feature |
|
|
Fixed port |
48*10GE SFP+ Ports, 4*40G QSFP+ Ports |
|
Console port |
1 |
|
OOB management port |
1 |
|
Backplane bandwidth |
1292Gbps |
|
Packet forwarding rate |
852.32Mpps |
|
Jumbo frames |
9216 bytes |
|
Chip |
BCM |
|
Layer |
L2 / L3(Available) |
|
Transfer mode |
Support store-forward mode and cut-through mode |
|
IPv4/IPv6 route |
6k/8k |
|
MAC address table |
128K |
|
Packet Buffer |
9MB |
|
VLAN ID |
4K |
|
Flash |
32MB |
|
Memory |
1GB DDR3 SDRAM |
|
CPU |
PPC Dual-core 800MHz |
|
Soft Specification |
|
|
Security feature |
IP+MAC+PORT+VLAN binding ARP inspection DOS prevention Port protection IP source port protection |
|
VLAN |
Port based VLAN 802.1Q VLAN IP based VLAN MAC based VLAN |
|
|
static MAC address table dynamic MAC address table |
|
Storm Control |
Broadcast suppression Multicast suppression DLF suppression Limiting rate |
|
Traffic Control |
Half-duplex control based on the back pressure type Full-duplex control based on the PAUSE frame |
|
Port Mirror |
Support port mirroring |
|
Port management |
General setting Port counting Configuring port Port trunking Port-isolation |
|
QoS |
IEEE 802.1Q Congestion mechanism Each port has 8 send queue mapping to 8 802.1p priority |
|
IP services |
Ping detection DHCP Snooping |
|
Spanning Tree Protocol |
MSTP(802.1s),STP,RSTP |
|
Multicast management |
IGMP Snooping frame |
|
System management |
Support SNMP v1/v2 Support Console Support TELNET Support WEB |
|
Remote Upgrade |
Support version upgrading via web Support version upgrading via local |
|
Physical Characteristics |
|
|
External Dimension |
438.48mm*473mm*43.4mm |
|
Power Supply Features |
AC:90V～290V DC:-38.4V～-72V |
|
Power |
≤230W |
|
Indicator light |
Power indicator, system, connection/sending and receiving instructions |
|
Environment temperature/humidity |
operating temperature:0°C～50°C(0m～1800m)storage temperature:-40°C～+70°C,relative humidity:5%RH～95%RH,Non-condensing |
Ordering Information
|
Item |
Description |
|

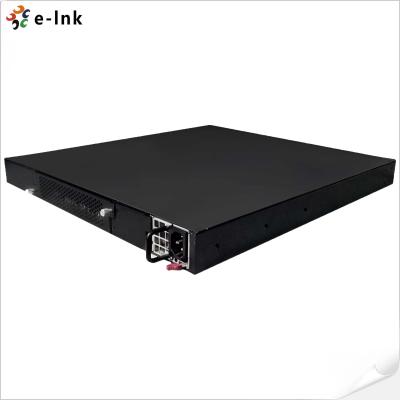

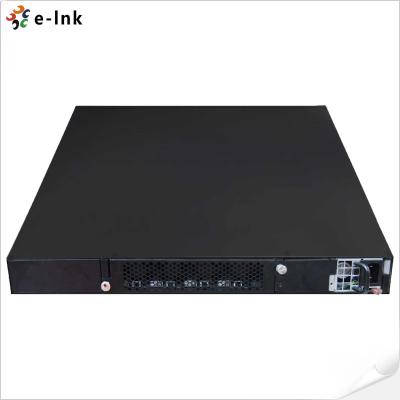

LNK-FS4804HC-SI |
L3 Managed Switch: 48-Port 10G SFP +4*40G QSFP+ Port |
