Gigabit Passive Poe Injector and Splitter Kit Works with all DC powered non-PoE devices

Price	US$8.9-US$9.9
MOQ	1pcs
Delivery Time	1-3 working days
Brand	E-link
Place of Origin	China
Certification	ISO9001, CE, ROHS, FCC
Model Number	LNK-POE2GP
Packaging Details	HDMI Fiber Splitter Standard Carton Packaging
Payment Terms	T/T,Western Union,MoneyGram,PayPal
Supply Ability	1000/Month

Product Details

Product Specification

Place of Origin	China	Packaging Details	HDMI Fiber Splitter Standard Carton Packaging
Dimensions	Length = 8 inches (20.3 cm)	Input Voltage	9 to 48VDC +/- 5%, Maximum 56VDC
LED	Green Indicating Voltage Present	Model Number	LNK-POE2GP
Supply Ability	1000/Month	Certification	ISO9001, CE, ROHS, FCC
Brand Name	E-link	Payment Terms	T/T,Western Union,MoneyGram,PayPal
Price	US$8.9-US$9.9	Delivery Time	1-3 working days
Minimum Order Quantity	1pcs	Ethernet Data Rate	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Ethernet Connectors	Shielded with Internal Drain Wire	Internal Wire Size	24 AWG Solid Copper

Product Description

Gigabit Passive Poe Injector and Splitter Kit

Model : LNK-POE2GP

Overview

The LNK-POE2GP is a high-performance Gigabit Passive Poe Injector and Splitter Kit, fully compliant

with IEEE 802.3af/at standards to ensure seamless compatibility with mainstream PoE-powered devices

(PDs) and power source equipment (PSE). As a dedicated Gigabit Passive Poe Injector and Splitter Kit, it

integrates both injection and separation functions in a streamlined design, enabling simultaneous transmission

of high-speed data and stable power via a single Ethernet cable—ideal for upgrading non-PoE setups to PoE

-enabled systems.

This Gigabit Passive Poe Injector and Splitter Kit is equipped with 5.5 x 2.1 mm size DC connectors, matching

the power input specifications of most network devices such as wireless APs, high-definition IP cameras, and

small IoT gateways—eliminating the need for additional adapter converters. In terms of data transmission, it

supports multi-rate adaptive operation: beyond gigabit (1000 Mbps) 1000BASE-T high-bandwidth transmission,

it also delivers superior performance for 10 Mbps 10BASE-T and 100 Mbps 100BASE-TX standards, ensuring

compatibility with both legacy and modern network infrastructures.

Engineered for reliability, the Gigabit Passive Poe Injector and Splitter Kit features internal wiring constructed with

solid copper 24 AWG wire—enhancing signal integrity and power transmission efficiency even over long cable runs.

It utilizes shielded connectors paired with an internal drain wire, effectively suppressing electromagnetic interference

(EMI) and radio frequency interference (RFI) common in industrial, office, or outdoor deployment environments. A

built-in green LED indicator provides intuitive status monitoring, lighting up to signal stable voltage presence and

alerting users to power supply conditions at a glance.

Whether deployed in small-scale security surveillance (powering and connecting IP cameras), office wireless network

expansion (supporting gigabit APs), or smart home device connectivity, this Gigabit Passive Poe Injector and Splitter

Kit combines standard compliance, multi-rate compatibility, and rugged construction. It offers a cost-effective, plug-

and-play solution for extending gigabit network reach while delivering reliable PoE power—eliminating the hassle

of separate data and power cabling.

Features

► 9~48V input. Plug Play, no configuration.

► IEEE 802.3at/at compliant.

► Includes Passive Injector & Splitter Sides

► Works with all DC powered non-PoE devices

► Support10/100/1000M BASE-TX.

► Ethernet Cable Data rate: 10/100/1000Mbps.

► Input Voltage: 9V~ 48V.

► Power Jack: 2.1x5mm male.

► Power Plug: DC 2.1X5.5mm female.

► Easy to install PoE Application for AP, CPE, IP Camera, IP Phone

► Use the Power Supply from Powered Device

► Works up to 150 feet (depending on cable used and power draw of device)

Technical Indexes

Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Input Voltage	9 to 48VDC +/- 5%, Maximum 56VDC
Power Pin Assignment	• Data provide over pairs 1/2(+) and 3/6(-)
Power Pin Assignment	• Power over spare pairs 4/5(+) and 7/8(-)
Ethernet Data Rate	10/100/1000 Mbps *1000 Mbps - 1 Gigabit
Maximum Output Current	1A
Over Current Protection	Yes
Ethernet Connectors	Shielded with Internal Drain Wire
Internal Wire Size	24 AWG Solid Copper
DC Connector Size	5.5 x 2.1 mm
LED	Green Indicating Voltage Present
Housing Material	ABS
Dimensions	Length = 8 inches (20.3 cm)
Weight:	96 grams (3.3 ounces)
Operating Temperature:	0°C to 45°C (-32°F to 113°F)
Storage Temperature:	-30°C to 70°C (-22°F to 158°F)
Relative Humidity:	5% to 90% non-condensing

Ordering Information

Model	Description
LNK-POE-2GP	Gigabit 10/100/1000 802.3af/at Passive Power-over-Ethernet (PoE) Injector - Splitter Mid-Span Kit with 5.5 mm x 2.1 mm Size DC Connectors

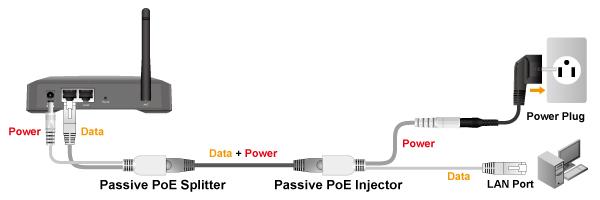

Application

Gigabit Passive Poe Injector and Splitter Kit Works with all DC powered non-PoE devices
