| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Model Number | LNK-HD-FE |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -5°C to 35°C(23°F to 95°F) | Storage Humidity | 5 to 90%RH (No Condensation) |
| Place of Origin | China | Packaging Details | Carton Packaging |
| Model Number | LNK-HD-FE | Supply Ability | 1000 pcs/month |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Operating Humidity | 10 to 90%RH (No Condensation) | Price | Negotiation |
| Delivery Time | 3-12 working days | Minimum Order Quantity | 1 pcs |
| Fiber Module | 1310nm Single Mode Transmitter & Receiver | Fiber Connector | SC Duplex Connector |
| Storage Temperature | -10°C to 70°C(14°F to 158°F) |
Advantages
► Automatically adapt range of input signal sampling frequency (32～100KHz)
► Provides high-resolution image quality.
► Plug-and-play operation - no programming or setup required.
► Extends 1080p HDMI signals up to 20km over a optic cable.
► Optical fiber use rules out any RF interference.
► Ethernet Pass-Through.
► Built in IR remote control.
Overview

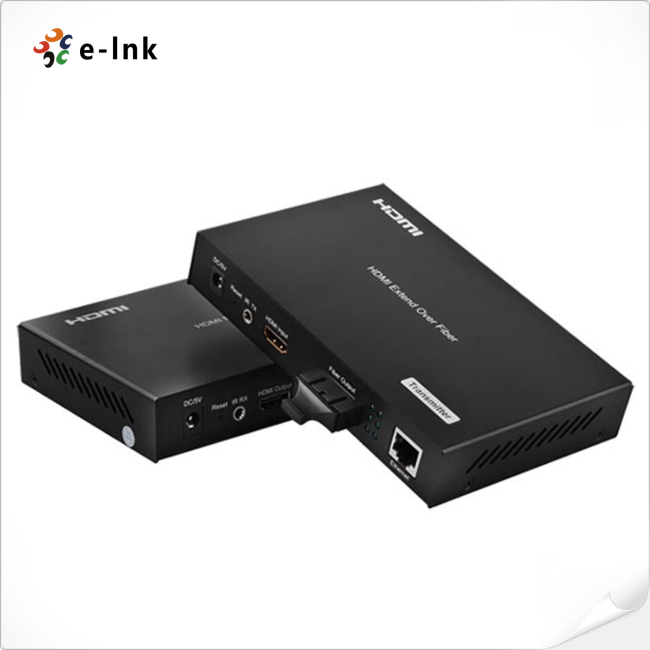

LNK-HD-FE HDMI over Fiber Extender is a high quality HDMI Extender product, extends 1080P HDMI Signal up to 20km over a single optical fiber cable, built in IR remote control, and with Ethernet pass through. It provides high resolution image quality; 1080p high definition video, let people can enjoy clear HD Video effects.
Technical Indexes
|
Operating Temperature |
-5°C to 35°C(23°F to 95°F) |
|
Storage Temperature |
-10°C to 70°C(14°F to 158°F) |
|
Operating Humidity |
10 to 90%RH (No Condensation) |
|
Storage Humidity |
5 to 90%RH (No Condensation) |
|
Fiber Module |
1310nm Single Mode Transmitter & Receiver |
|
Fiber Connector |
SC Duplex Connector |
|
Transmission Distance |
1080P 36bit @60Hz 20Km(Maximum) |
|
Power consumption |
TX:8watts; RX:8watts((Maximum) |
|
IR wavelength &frequency |
Wavelength:940nm,frequency 38kHz |
|
Dimension (L×W×H) |
TX & RX: 154x99.5x27mm |
|
Net Weight |
Transmitter:410g, Receiver:410g, |
|
LED Indicators |
Power, Link/Act and Speed |

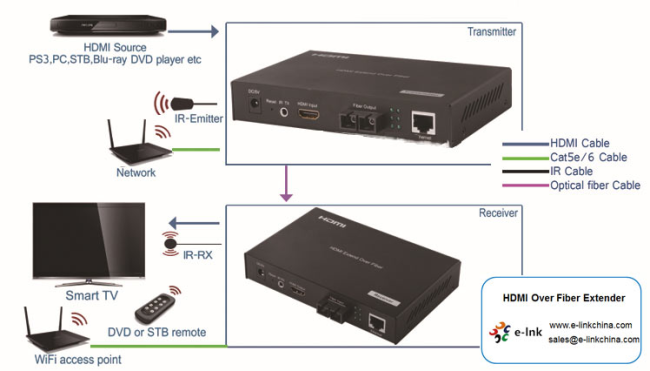

Application
