| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Model Number | LNK-1240KVM series |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -32° to +122° F. (-0° to +50° C) | Storage Humidity | 5% to 95% (non-condensing) |
| Place of Origin | China | Packaging Details | Carton Packaging |
| Model Number | LNK-1240KVM series | Supply Ability | 1000 pcs/month |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Operating Humidity | 5% to 80% (non-condensing) | Dimensions (L x W x H) | 89mm x 104 mm x 28.3 mm |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Net Weight | 200 g |
| Storage Temperature | -40° to +185° F. (-40° to +85° C) |
Advantages
► Real Time Transmission, HDCP 1.2 compliant
► Supports DVI 1.0 and HDMI v1.3
► Supports resolutions up to1920*1080/60P
► Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel
► Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total, CEC are NOT supported!
► Support 3D TV & EDID pass-through
► Support USB Keyboard and USB Mouse
► LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™
► Built-in EQ(Receiver), Plug and Play, Surface-mountable
► Up to 300m distance by OM3-300(Custom Available)
► Low RFI / EMI profile for sensitive applications
Overview

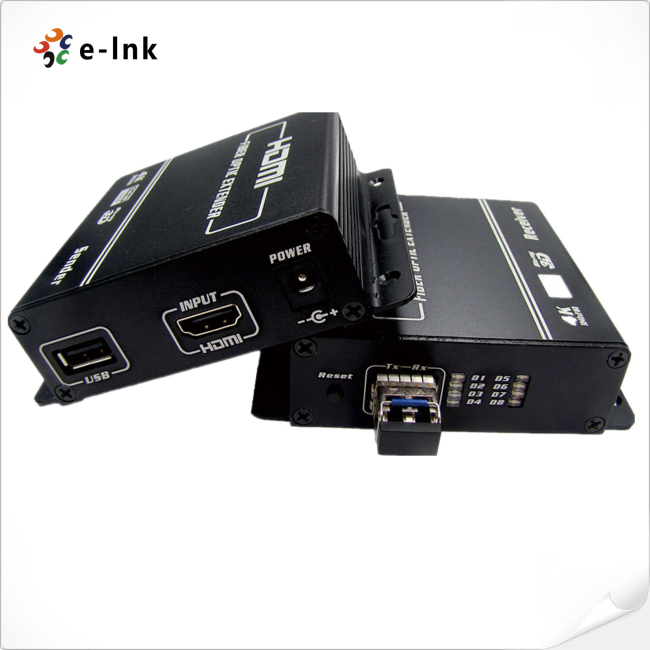

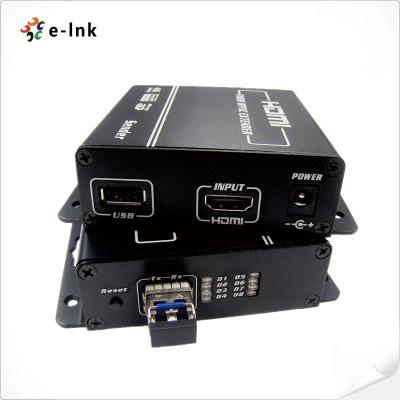

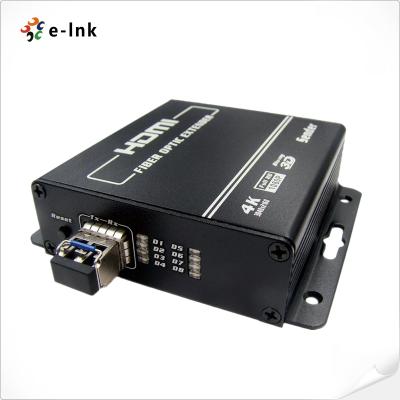

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).
Technical Indexes
|
Performance |
|
|
Compliance |
HDMI v1.3 |
|
Maximum Pixel Clock Frequency |
225 MHz |
|
Maximum Video Bit Rate |
2.25 Gbps |
|
Supported Color Depth |
24-bit |
|
Supported Resolutions |
1920x1080/60P |
|
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit audio capability |
|
Connections |
Description |
|

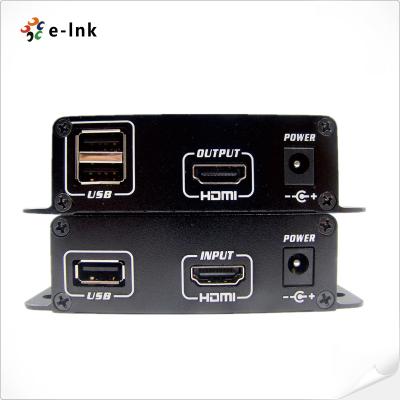

HDMI Input / Output |
1x HDMI Type-A Female connector |
|
Optical |
1x SFP+ port |
|
|
|
|
Fiber Cable Type / Max. Length |
50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) 9/125μ Single Mode Fiber: ≤ 10KM |
Ordering Information
|
Model |
Description |
|
LNK-1240KVM -T |
1080P HDMI KVM Fiber Optic Extender Transmitter |
|
LNK-1240KVM -R |
1080P HDMI KVM Fiber Optic Extender Receiver |

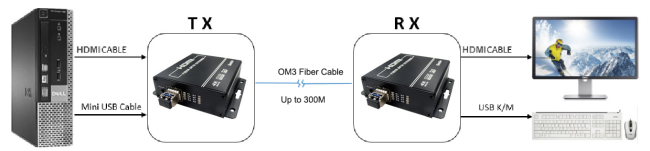

Application
