| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Model Number | LNK-4KDP12-1A1R |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -25 ℃ to +55 ℃ (typical value 25 ℃) | Input voltage | DC 5V |
| Place of Origin | China | Dimension (LxWxH) | 315mm x 290mm x 20mm (equipment size) 330mm x 295mm x 25mm (shipping dimensions) |
| Packaging Details | Carton Packaging | weight | 1.0kg (Equipment weight) 1.5kg (Transportation weight) |
| Model Number | LNK-4KDP12-1A1R | Supply Ability | 1000 pcs/month |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Operating Humidity | 20% to 90% | Price | Negotiation |
| Delivery Time | 3-12 working days | Minimum Order Quantity | 1 pcs |
| Maximum power | 10W |

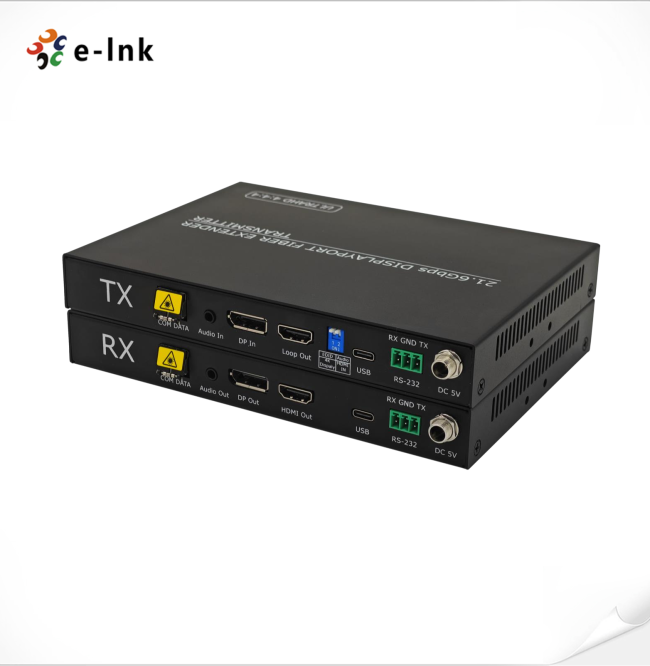

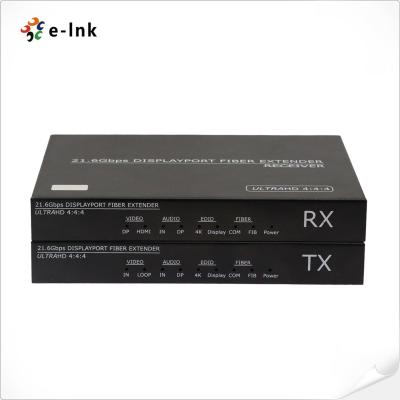

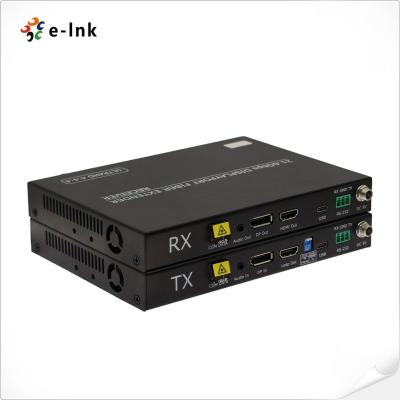

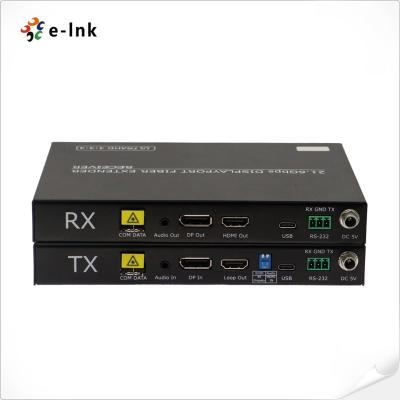

DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender
Advantages
► Support audio and video synchronization to extend output
► The transmitter has a loop output interface (sharing local signals) and external audio embedding function
► The receiver has a backup output interface and audio stripping output function
► Supports RS-232 transparent transmission and EDID management learning, with simple and convenient control
► Video resolution up to 4K2K@50 /60Hz; 7680* 2160@30Hz 4: 4:4 transmission
► HDMI audio format: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
► Compliant with HDMI 2.0b, HDCP 2.2 and DVI 1.0 specifications
Technical Indexes
|
Transmitter Interface |
standard |
1 × DP1.2 input (4K@60Hz) 1 x HDMI 2.0 loop out (4K@60Hz) 1 x Audio input 2 × LC optical fiber 1 × RS232 |
|
Receiver Interface |
standard |
1 × DP1.2 output (4K@60Hz ) 1 x HDMI 2.0 output (4K@60Hz) 1 x Audio output 2 × LC optical fiber 1 × RS232 |
|
Video Resolution
|
DP |
SMPTE: 720p | 1080p | 2160p VESA: 800x600|1024x768|1280x720|1280x800| 1280x960|1280x1024|1400x1050|1600x1200| 1920x1080 1920x1200| 2048x1152|2560x1600|3840x1080|3840x2160| 4096x2160|7680x2160|7680x1080|3840*2400 |7680*1200|2160*4096 Support custom non-standard resolution |
|
refresh rate |
23.98/24/25/29.97/30/50/59.94/60Hz |
|
|
Supported Standards
|
DP |
1.2,1.1 |
|
HDMI |
1.3,1.4,2.0 |
|
|
Input voltage |
DC 5V |
|
|
Maximum power |
10W |
|
|
Operating Temperature |
-25 ℃ to +55 ℃ (typical value 25 ℃) |
|
|
Operating Humidity |
20% to 90% |
|
|
Weigh |
1.0kg (Equipment weight) 1.5kg (Transportation weight) |
|
|
Dimensions (L x W x H) |
315mm x 290mm x 20mm (equipment size) 330mm x 295mm x 25mm (shipping dimensions) |
|
Order Information
|
Model |
Description |
|
LNK-4KDP12-1A1R |
DP1.2 4K@60Hz 4:4:4 Uncompressed Audio and Video Fiber Extender, Single mode Dual fiber, LC, 10KM |

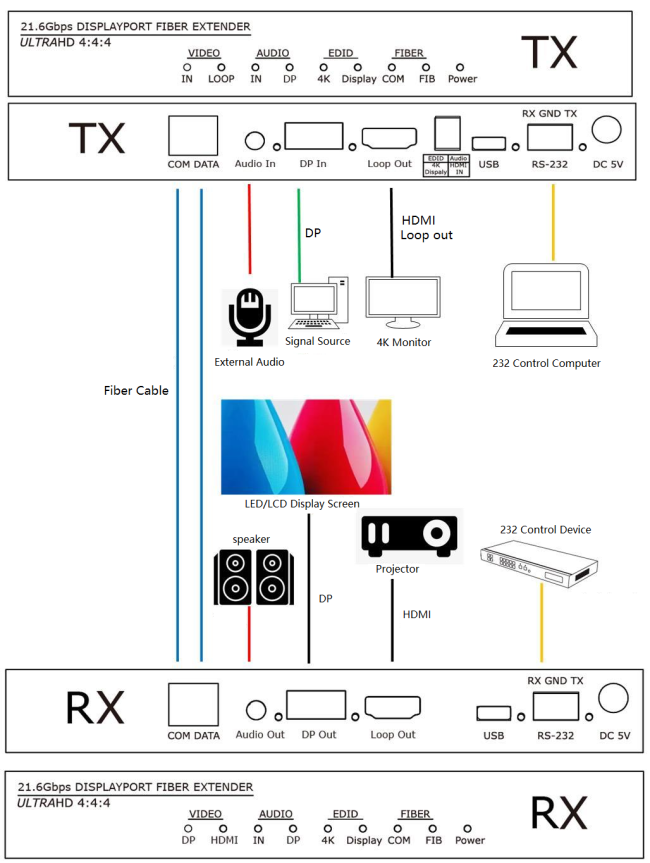

Application
