| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Model Number | LNK-4KH-1D1U1E1A1R |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Temperature | Operating: -25℃ ~ +55℃ Storage: -40℃ ~ +85℃ | Place of Origin | China |
| Dimension (LxWxH) | 148*115*28mm | Packaging Details | Carton Packaging |
| weight | 1kg | Model Number | LNK-4KH-1D1U1E1A1R |
| Supply Ability | 1000 pcs/month | Power Supply | DC 12V/1A |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Humidity | 20% ~ 90% |
| Power dissipation | MAX 10W |
Advantages
► Support HDMI video resolution up to 4096*2160P@60Hz
► Supports video resolutions up to 4K2K@50/60Hz with 4:4:4 chromatic sampling
► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards
► Support HDMI video loop out
► Support KVM
► Support RS232 or RS485
► Support 10/100M TCP/IP
► Support Bidi IR
► Support DIP Switch with Audio Separation and EDID function
Overview

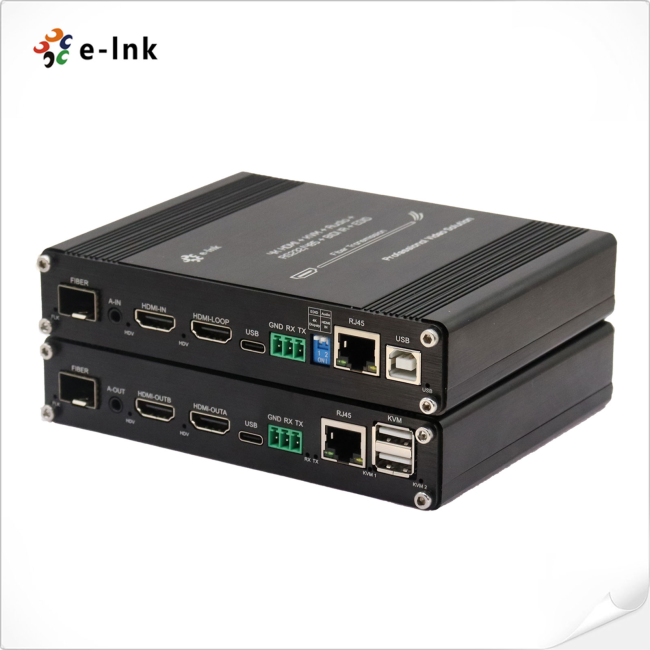

The LNK-4KH-1D1U1E1A1R Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 4K60Hz HDMI, and with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
|
Description |
|
|
Transmitter Interfaces |
Standards |
1 x HDMI 2.0 Input (4K@60Hz) 1 x HDMI 2.0 Loop-out (4K@60Hz) 1 x Audio Input 1 x SFP 1 x RS232/RS485 2 x IR 1 x RJ45(10/100M, TCP/ IP) 1 x USB-B |
|
Receiver Interfaces |
Standards |
2 x HDMI 2.0 Output (4K@60Hz) 1 x Audio Output 1 x SFP 1 × RS232/RS485 2 × IR 1 x RJ45(10/100M, TCP/ IP) 2 x USB-A |
|
Video Resolution |
HDMI |
SMPTE:720p|1080p12160p VESA:800x600|1024x768|1280x720|1280x800| 1280x960|1280x1024|1400x1050|1600x1200| 1920x10801920x1200|2048x1152|2560x1600| 3840x1080|3840x2160|4096x2160 |
|
|
Refresh Rate |
23.98/24/25/29.97/30/50/59.94/60Hz |
|
Supported Standards |
HDMI |
1.3,1.4,2.0 |
|
|
DVI |
1.0 |
|
Audio |
Interface |
3.5mm Audio Interface |
|
|
Signal type |
Operate via DIP switch, Up for HDMI Internal Audio Down for External Audio |
|
KVM |
Interface |
TX: 1 x USB-B RX: 2 x USB-A |
|
|
latency |
Minimum latency |
|
RS232/RS485 |
Interface |
Industrial terminal |
|
|
Signal direction |
RS232 default, RS485 optional |
|
|
Baud rate |
600~115200bps, 8bit, 1 stop bit, no check. |
|
|
Data bits |
8 |
Order Information
|
Model |
Description |
|
LNK-4KH-1D1U1E1A1R |
Multifunctional 4K60Hz HDMI Fiber Extender, with KVM, Audio, RS232 or RS485, 10/100M TCP/IP, IR, EDID function, MMF 330M or SMF 20/40/60/80KM, LC or SC. |

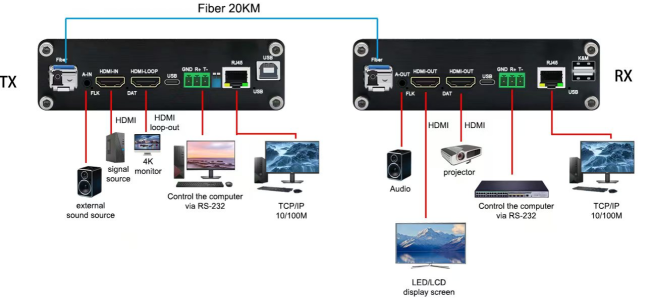

Application
