| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, RoHS, FCC, ISO9001 |
| Model Number | LNK-HC100 |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Dimension | 87.5(L)x33(W)x22(H)mm | Model Number | LNK-HC100 |
| Supply Ability | 100000PCS/Month | Certification | CE, RoHS, FCC, ISO9001 |
| Weight | 160g | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal | Power consumption | DC12V/1W |
| Price | negotiation | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Housing Material / Net Weight(each) | Aluminum/61g |
| Operating Temperature: | -10º~50º C | Power Input | DC12V/0.07A |
Product Advantages
· Support resolution of 1280 x 720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps) ·Support data width of 20-bit(Non-multiplexed) or 10-bit(Multiplexed)
· Support transmission ratio of 2.97Gbps, 1.485Gbps, and 270Mbps
· Embedded surge protection cables
· Light Aluminum Housing, Easy to carry and install
Overview

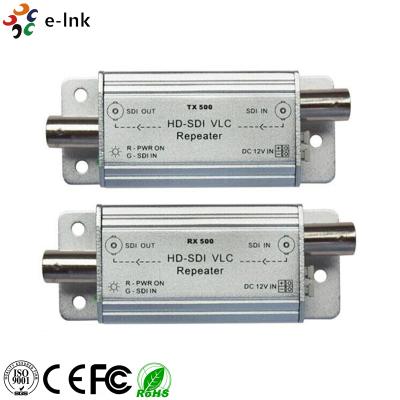

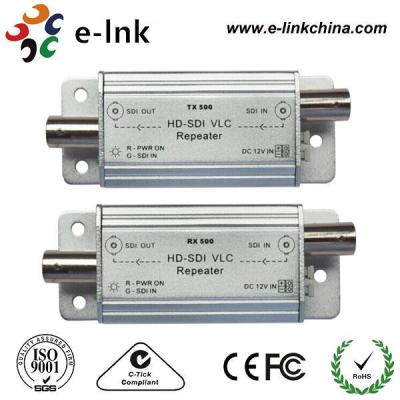

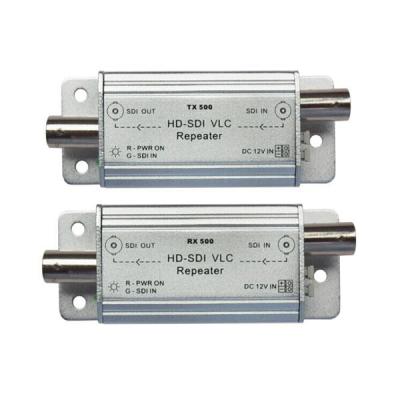

E-link LNK-TX500 is to apply for signal transmitting terminal. LNK-Rx500 is to apply for receiving terminal. LNK-TX500 & LNK-TX500 repeaters is a equipment of HD-SDI signal data transmission, which can support transmitting HD-SDI signal data for 500 meters.
Technical Indexes
|
Model No. |
LNK-SDI-TX500 & LNK-RX500 |
|
Input / Output Signal Type |
HD-SDI |
|
Power Consumption |
DC12V/1W |
|
Power Input |
DC12V/0.07A |
|
Max Distance of Each Pair |
RG-6(Belden 1694A)-400m(Full SD:270M) |
|
Connect Info |
SDI
Signal
Joint
BNC-F(75Ω) |
|
LED Instruction |
Green OFF: HD-SDI input Red ON: Power input |
|
Operation Temperature / Humidity |
-10-50 |
|
Housing Material / Net Weight(each) |
Aluminum/61g |
|
Gross Weight(pair) |
160g |
|
Dimension(MM) |
87.5(L)x33(W)x22(H)mm 121(L)x54(W)x36(H)mm(Sale package) |
HD-SDI Signal Standards
|
SD-SDI |
HD-SDI |
3G-SDI |
|
(SMPTE 259M) |
(SMPTE 292M) |
(SMPTE 424M) |
|
525i |
1280x720P, 24/25/30/50/60HZ |
1920x1080P, 50/60HZ |
|
|
|
|
|
625i |
1920x1080i, 50/60HZ |
|
|
|
|
|
|
|
1920x1080P, 24/25/30HZ |
|
|
|
|
|

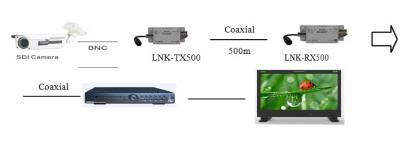

3. Product Components with connect Diagram
1) LNK-TX500 SDI Input: Input 1.5Gbps HD-SDI signal; RX500 SDI Input: Input 270Mbps SD-SDI signal
2) LNK-TX500 SDI Output: Output 270Mbps SD-SDI signal via encoder RX500 SDI Output: Output SDI signal data of 1.5Gbps via decoder
3) Power & HD-SDI input with LED instruction (Green, Red)
4) DC female connector: connect with power adaptor of 12V-/-10%
|
LED Color |
LED Status |
Conditions |
|
Green |
ON |
No HD-SDI signal input |
|
Red |
ON |
Power is connected |
