| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, RoHS, FCC, ISO9001 |
| Model Number | LNK-HC100 |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Power supply | 1A@5VDC (2 adapters) (2.1mm plug) | Dimension | 80 x 41 x 25 mm |
| Model Number | LNK-HC100 | Supply Ability | 100000PCS/Month |
| Certification | CE, RoHS, FCC, ISO9001 | Weight | 150g |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| PCB stack-up | 4 layouts | Power consumption | 2 watts |
| Price | negotiation | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Operating Temperature: | 32º~104º F (0º~40º C) |
Product Advantages
· HDMI Extender Over Coaxial Cable With IR Remote Control
· Send HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away
· Compliant with HDMI 1.3, HDCP 1.1standards
· Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and 48KHz,LPCM Digital audio
· Equalizes and recovers incoming TMDS data before re-transmitting it in high quality, regardless of the incoming signal quality
· Super IR control system, IR transport channel can be forward or backward.
Overview

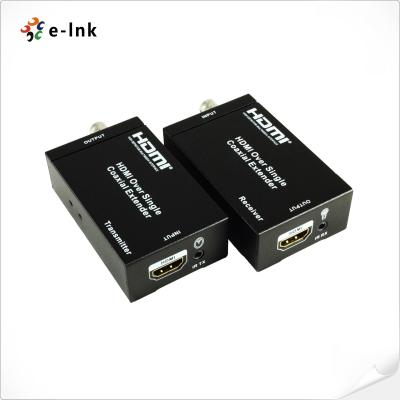

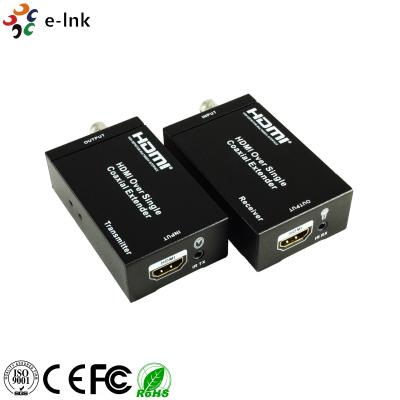

E-link HDMI Extender over Coaxial 100M BNC 75ohm RG-6U Coax Cable Balun is used for DVR, DVD, CCTV Camera and Home Theater. The Transmitter and Receiver sends HDMI + IR signals over one 75ohm Coaxial cable up to 100M (328ft) away. The HDMI + IR Over Single Coax Extender supports HDMI 1.2 and HDMI 1.3 with features such as Deep Color and 1080p. By using standard and widely available 75ohm RG-6U cables, the HDMI Over Single Coax Extender makes extending your HDMI + IR signal easier than using heavy and expensive copper cable and more robust than using optical fiber cable.
Technical Indexes
|
Input |
(TX) 1xHDMI; (RX) 1xBNC + 1x3.5mm |
|
Output |
(TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI |
|
HDMI connector |
Type A 19 pin female |
|
BNC connector |
BNC Jack |
|
3.5mm connector |
(TX and RX) IR Receiver/IR Blaster |
|
HDCP Compliance |
Yes |
|
Video Bandwidth |
Single-link 225Mhz [3Gbps] |
|
Video Support |
720p/1080i/1080p @60 |
|
Audio Support |
PCM (up to 7.1 ch) 48KHz |
|
Transmission Range |
HD [1080p 36-bit color] – up to 100m [328ft] |
|
Coaxial Cable |
RG6 |
|
Maximum Input Cable Length |
24AWG (15m), 26AWG (10m), 28AWG (5m) |
|
Maximum Output Cable Length |
24AWG (15m), 26AWG (10m), 28AWG (5m) |
|
HDMI Equalization |
Auto |
|
Input TMDS Signal |
3.3 volts |
|
Input DDC Signal |
5.0 volts/P-P |
|
Power Supply |
1A@5VDC (2 adapters) (2.1mm plug) |
|
Power consumption |
2 watts |
|
ESD Protection (Human Body Model) |
±8kV (air-gap discharge), ±4kV (contact discharge) |
|
PCB stack-up |
4 layouts |
|
Housing |
Metal enclosure |
|
Operating Temperature |
32º~104º F (0º~40º C) |
|
Operating Humidity |
20~90% RH (no condensation) |
|
Dimensions |
80 x 41 x 25 mm |
|
Weight |
150g |
Ordering Information
|
Model |
Description |
|
LNK-HC100 |
HDMI Extenders over Single RG6 Coaxial Cable up to 100m/328ft Support IR Remote Control |
