| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, RoHS, FCC, ISO9001 |
| Model Number | SDI to HDMI converter |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Power supply | DC5V/1A | Dimension | 98.5 x 85 x 31mm |
| Model Number | SDI to HDMI converter | Supply Ability | 100000PCS/Month |
| Certification | CE, RoHS, FCC, ISO9001 | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal | Price | negotiation |
| Delivery Time | 7-10 working days | Minimum Order Quantity | 1pcs |
| Power dissipation | MAX 4W | Operating Temperature: | -40℃ to +70℃ |

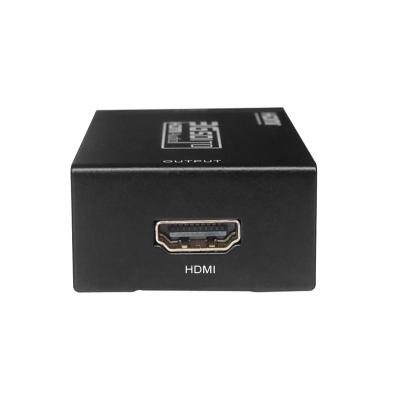

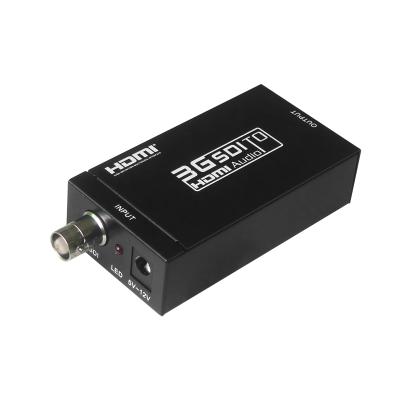

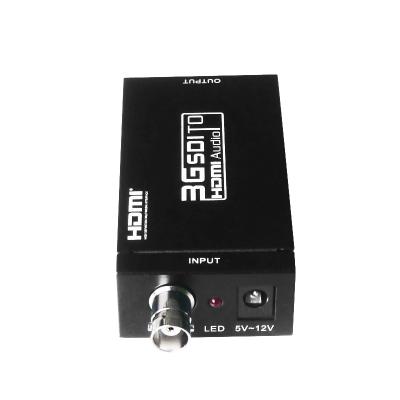

3G-SDI to HDMI Converter
Product Advantages
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Equalized and re-clocked loop output• Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
Overview

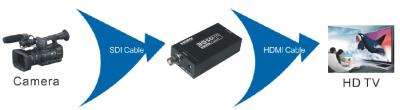

The SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.
Technical Indexes
|
Parameter |
Specifications |
|
Input Port |
1 x BNC (SDI/HD-SDI/3G-SDI) |
|
Output Port |
1 x HDMI |
|
SMPTE Standard |
425M Level A & B, 424M, 292M, 259M-C |
|
SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
|
In/Output Resolution |
480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60 1080p@23.98/24/25/29.97/30/50/59.94/60 1080PsF@23.98/24/25/29.97/30 |
|
HDMI input/output connect |
HDMI type A 19Pin |
|
Link Connector |
BNC Shielded |
|
Power Adapter |
DC5V/1A |
|
Operating temperature range |
-40℃ to +70℃ |
|
Operating humidity range |
5 to 90% RH (no condensation) |
|
Shippingweight |
0.15 KGS |
|
Dimensions( L x W x H) |
98.5 x 85 x 31mm |
