| Price | Negotiated |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001, CE, FCC, RoHS |
| Model Number | LNK-FS4804HC-SI |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Place of Origin | China | IPv4/IPv6 Route | 6k/8k |
| Flash Memory Capacity | 32MB | Memory | 1GB DDR3 SDRAM |
| Packaging Details | standard export package | CPU | PPC Dual-core 800MHz |
| Model Number | LNK-FS4804HC-SI | Supply Ability | 1000pcs/mouth |
| Certification | ISO9001, CE, FCC, RoHS | Brand Name | E-link |
| Payment Terms | T/T,PayPal | Console Port | 1 |
| Price | Negotiated | Delivery Time | 5-12working days |
| Minimum Order Quantity | 1pcs | VLAN ID | 4K |

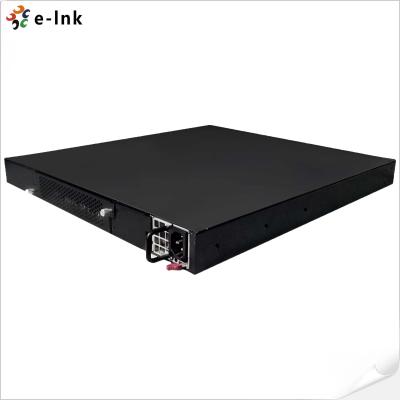

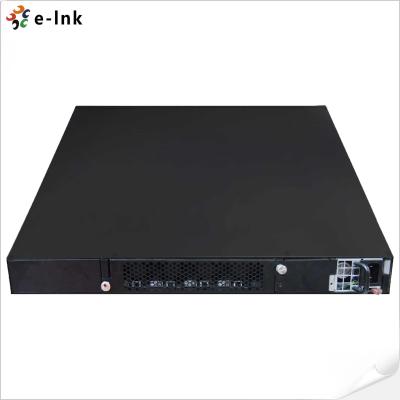

L3 Managed 48-Port 10G SFP + 4-Port 40G QSFP+ Fiber Switch Advantage
► With 1292Gbps backplane bandwidth, the industry the highest performance (1U TOR)
► The layer 3 switching hardware routing, wire speed packet rate reached 852.32Mpps, L2 / L3 forward full speed
► Extensible 48 biggest 10GE interface, the highest density (1U TOR), meet the demand of high-density 10G server access
► Extensible 4 high-performance 40G QSFP+ interface, 40G QSFP+ interface allows for 4 to 10GE interface; Provide flexible network capacity
► Extensible 8 10G electric ports, provide flexible network capacity
L3 Managed 48-Port 10G SFP + 4-Port 40G QSFP+ Fiber Switch Overview
10Gigabit Data Center Switch LNK-FS4804HC-SI is a standard three-layer Non blocking switches.
650Gbps switch capacity, industry the highest performance (1U TOR); With 852.32Mpps forwarding performance,
L2 / L2+ forward full speed; Extensible 48 biggest 10G interface, the highest density (1U TOR), meet the demand
of high-density 10G server access. 4* 40G QSFP+ interface allows for 4 to 10GE interface; Provide flexible network
capacity; Ensure the stable operation of the network and link load balancing.S5600-52HC-SIadopts modular design,
provides 48 10GE SFP+ ports, 4* 40G QSFP+ ports, 1 Console port:1 OOB management. To gather and core
data exchange to provide enough bandwidth, the user can according to demand to choose the appropriate 40G port
in a flexible response network requirements. With high bandwidth and low latency, pipe network. LNK-FS4804HC-SI
switches located in density of the next generation of data center and cloud computing network access, can also be
used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
L3 Managed 48-Port 10G SFP + 4-Port 40G QSFP+ Fiber Switch Technical Indexes
|
Basic Feature |
|
|
Fixed port |
48*10GE SFP+ Ports, 4*40G QSFP+ Ports |
|
Console port |
1 |
|
OOB management port |
1 |
|
Backplane bandwidth |
1292Gbps |
|
Packet forwarding rate |
852.32Mpps |
|
Jumbo frames |
9216 bytes |
|
Chip |
BCM |
|
Layer |
L2 / L3(Available) |
|
Transfer mode |
Support store-forward mode and cut-through mode |
|
IPv4/IPv6 route |
6k/8k |
|
MAC address table |
128K |
|
Packet Buffer |
9MB |
|
VLAN ID |
4K |
|
Flash |
32MB |
|
Memory |
1GB DDR3 SDRAM |
|
CPU |
PPC Dual-core 800MHz |
L3 Managed 48-Port 10G SFP + 4-Port 40G QSFP+ Fiber Switch Ordering Information
