| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, RoHS, FCC, ISO9001 |
| Model Number | LNK-HDE-60KVM |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Power supply | DC 12V | Model Number | LNK-HDE-60KVM |
| Supply Ability | 100000PCS/Month | Certification | CE, RoHS, FCC, ISO9001 |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| UTP Transmission Distance | CAT6 Max: 60m | The warranty | 1 Year Free Warranty |
| Price | negotiation | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Size(L-W-H) | 82*85*17mm |
| Operating Temperature: | -5℃ ~ +70℃ | Resolution | Max: 1920X1080@60Hz(backward-compatible) |
Product Advantages
· Aluminum shell, compact size and slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type is more convenient;
· Uncompressed transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
· Support video resolution up to 1920*1080@60Hz, 3D signals;
· Support keyboard and mouse remoter control;
· Support local HDMI loop-out;
· Build-in EDID function, can match many kinds display device;
· Support POC unilateral power supply, need 1pc 12V power to TX
· Compliance with HDMI 1.3 and HDCP 1.3 standard;
Overview

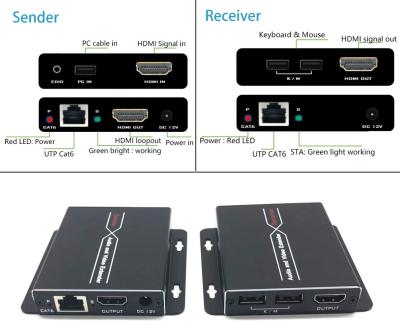

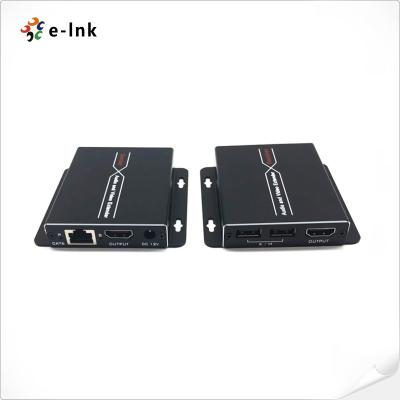

This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 60 meters with zero latency. At the same time, the signal is stable, and the built-in EDID greatly improves the compatibility of the device. It supports keyboard & mouse remote control and local loop-out, also it supports PoE to power the receiver
Technical Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.3, HDCP 1.3 |
|
Maximum Pixel Clock |
165MHz |
|
|
Max Data Rate |
6.75Gbps |
|
|
Resolution |
Max: 1920X1080@60Hz(backward-compatible) |
|
|
Connector |
HDMI-A |
|
|
Impedance |
100Ω |
|
|
USB |
Interface |
PC: Standard MINI-USB or PS2 K/M: Standard USB, PS2 (optional) |
|
USB Signal |
HID Signal |
|
|
UTP |
Interface |
RJ45 |
|
Transmission Distance |
CAT6 Max: 60m |
|
|
Other |
Power Supply |
DC 12V |
|
Power Dissipation |
Max: 4W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension |
82*85*17mm |
|
|
The warranty |
1 Year Free Warranty |
|
Ordering Information
|
Part No |
Description of product |
|
LNK-HDE-60KVM |
60M 1080P HDMI KVM Extender With Loop-out |
