| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, Rohs |
| Model Number | LNK-MDA4K Series 4K DVI Fiber Extender |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Connector | DVI-D | Place of Origin | China |
| Packaging Details | Carton Packaging | Model Number | LNK-MDA4K Series 4K DVI Fiber Extender |
| Supply Ability | 1000 pcs/month | Certification | CE, FCC, Rohs |

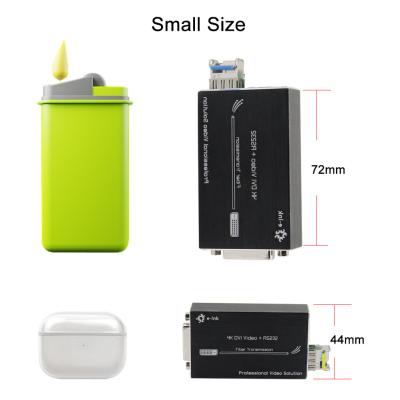

| Dimensions (WxDxH) | 2.87 x 1.73 x 0.69in (73x44x17mm) | Power Supply | 5V DC (USB-C) |
| Brand Name | E-link | Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Operating Humidity | 5% to 90% RH (non-condensing) | Price | Negotiation |
| Delivery Time | 3-12 working days | Minimum Order Quantity | 1 pcs |
| Power dissipation | <5W | Fiber type | SFP/LC |
Advantages
► DVI 1.0 and HDCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC HPDT Signal Support
► Data rate up to 10.2Gbps
► Transmission distance up to 80km over fiber cable
► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
► Support 3.5mm External Stereo Audio
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Temperature: -10~50°C
Overview

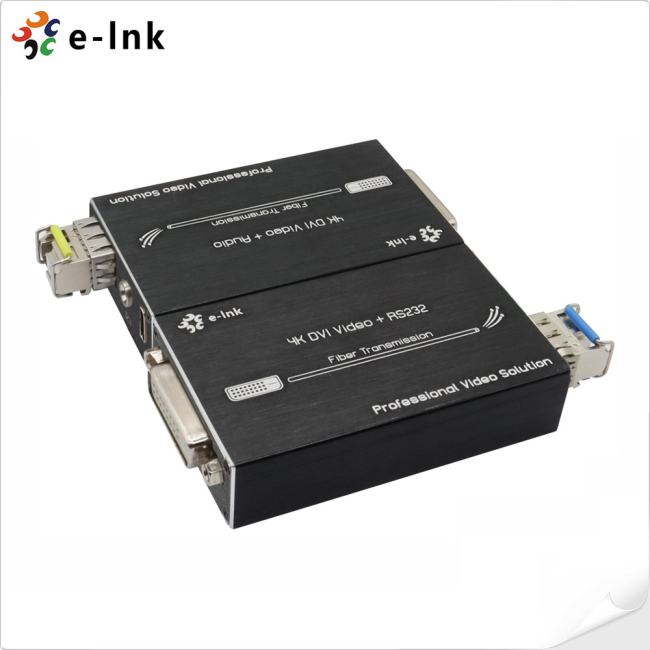

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0.
The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Order Information
|
Model |
Description |
|
LNK-MDA4K-MM |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK-MDA4K-S20 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK-MDA4K-S40 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK-MDA4K-S80 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |

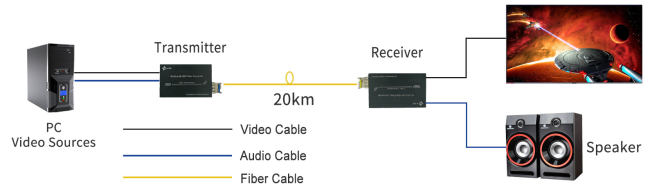

Application
