| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Model Number | LNK-MDF100 Series Mini-type DVI Fiber optic extender |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Connector | Female DVI-D | Place of Origin | China |
| Packaging Details | Carton Packaging | Model Number | LNK-MDF100 Series Mini-type DVI Fiber optic extender |
| Supply Ability | 1000 pcs/month | Wavelength | 850nm/1310nm |
| Dimensions (WxDxH) | 80 x 40 x 20 (mm) | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal | Operating Humidity | 5% ~ 90% |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Fiber type | Single-mode; Multi-mode |
Advantages
► Transmits DVI video signals and audio up to 20km over a single fiber optic cable;
► Compliant with DVI 1.0 specifications ;
► Support 1920*1200 1080P@60Hz
► Special support 1600*1200 @60Hz
► Supporting pixel rates from 25MHz to 165MHz
► DTV resolutions: 480i, 576i, 480p, 576p, 720p, 1080i up to 1080p
► PC resolutions: VGA, SVGA, XGA, SXGA up to UXGA
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

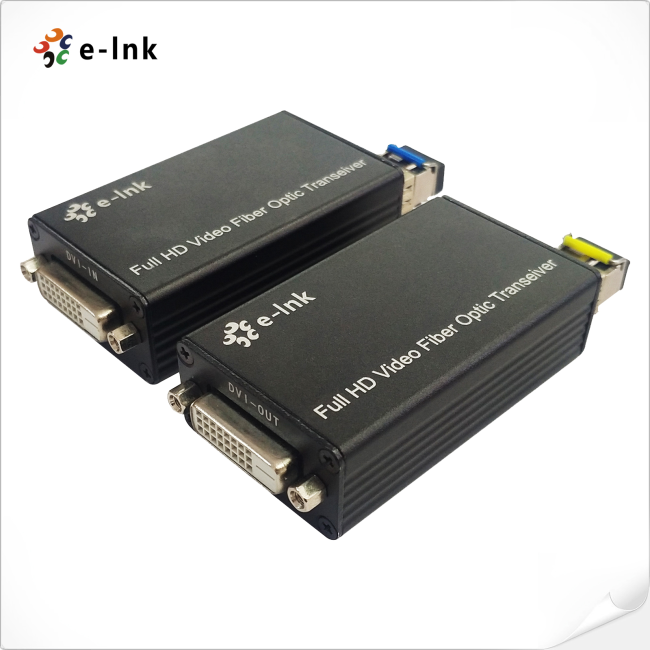

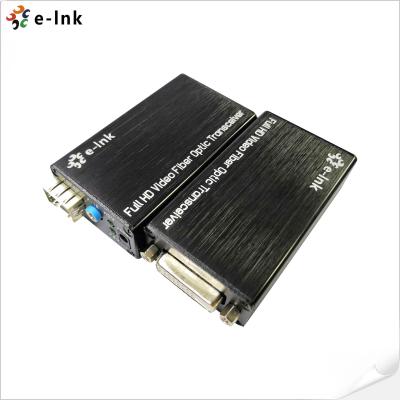

The LNK-MDF100 Series Mini-type DVI Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports DVI 1.0 specifications,high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Order Information
|
Model |
Description |
|
LNK-MDF100 |
DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), Multimode fiber, 300m, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-MDF100S |
DVI Fiber Optic Extender with external stereo audio:1920*1200P@60Hz, Compliance with DVI 1.0 & HDCP1.2 standard, LC(SFP), single mode, single fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |

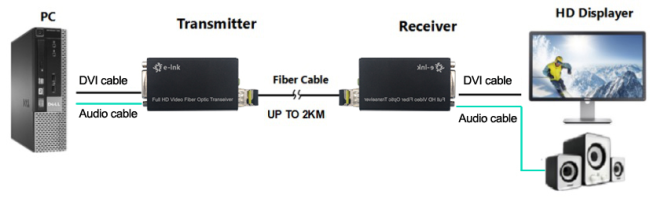

Application
