| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | ZP-HINJ301-30 |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) | Place of Origin | China |
| Input Power | 12~48VDC (Terminal Block) | Packaging Details | Carton Packaging |
| Model Number | ZP-HINJ301-30 | Casing | Aluminum Case |
| Supply Ability | 1000 pcs/month | Certification | ISO9001 |
| Dimensions (WxDxH) | 95 x 70x 36mm | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal | Mounting Options | DIN-Rail / Wall-mount |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Advantages
► 12~48V DC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
► Small Size 95 x 70 x 36 mm
► Aluminum Alloy Metal Case
► Support DIN-rail mounting and wall mounting installation
Overview

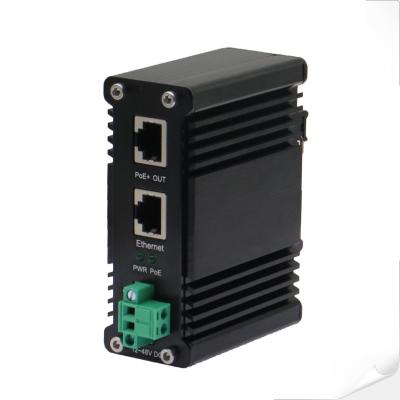

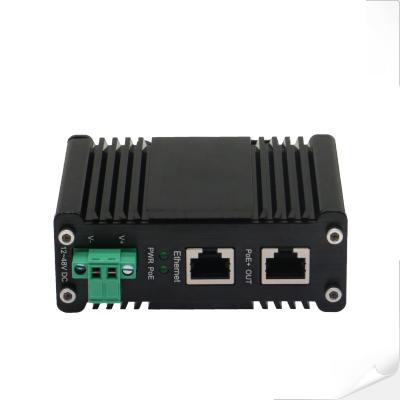

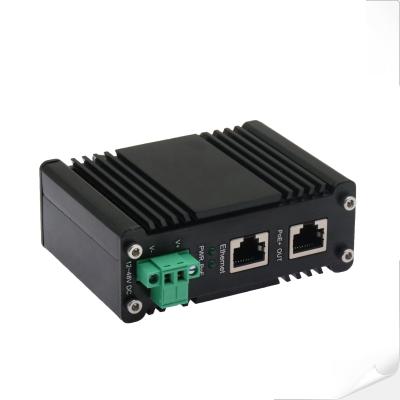

The ZP-HINJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
ZP-HINJ301-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Ordering Information
|
Model |
Description |
|
ZP-HINJ301-30 |
12~48VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

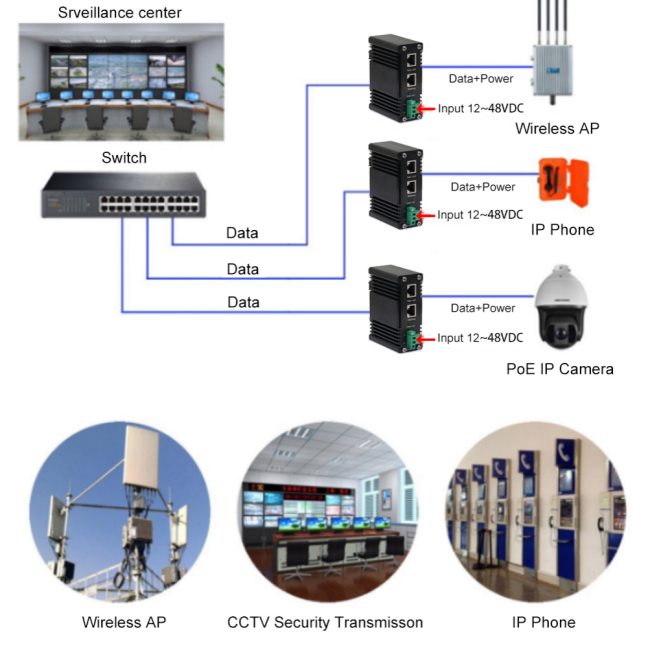

Application
