| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001, CE, FCC, RoHS |
| Model Number | ZP-HIMC3012-SFP |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) | Place of Origin | China |
| Input Power | 12~48VDC, 4-pin terminal block | Packaging Details | Carton Packaging |
| Model Number | ZP-HIMC3012-SFP | Casing | Aluminum Case |
| Supply Ability | 1000 pcs/month | Certification | ISO9001, CE, FCC, RoHS |
| Dimensions (WxDxH) | 95 x 70x 36mm | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal | Mounting Options | DIN-Rail / Wall-mount |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Advantages

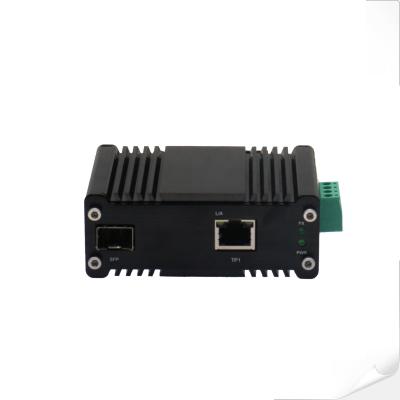

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port,100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 12~48V DC Terminal Block Power Input

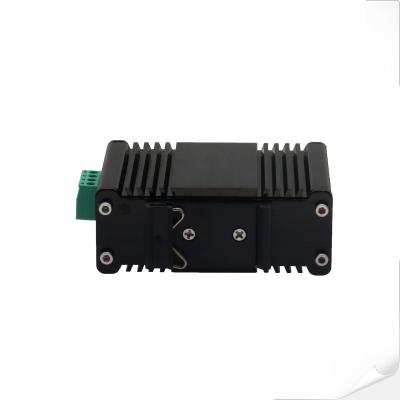

► Supports DIN-Rail & Wall-mount installation
► Environmentally
hardened
-40°C
to
75°C
(-40°F
to
167°F)
operating
temperature
Overview

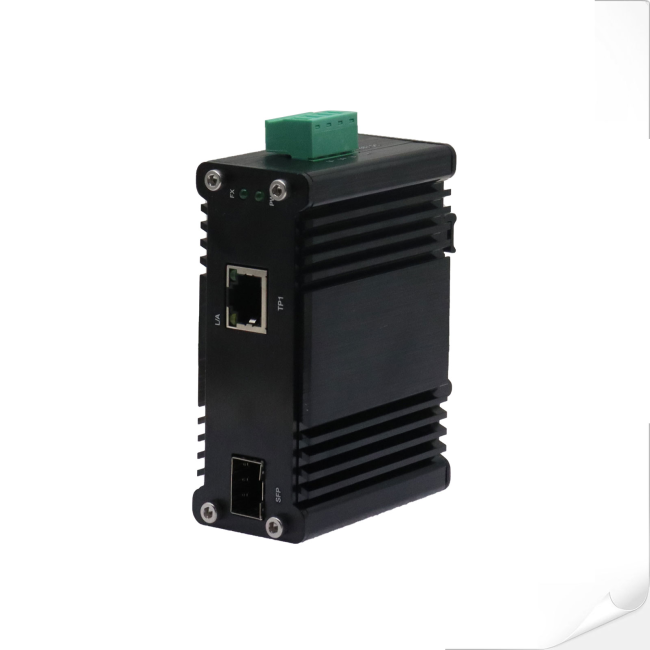

ZP-HIMC3012-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. ZP-HIMC3012-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Ordering Information
|
Model |
Description |
|
ZP-HIMC3012-SFP |
Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |

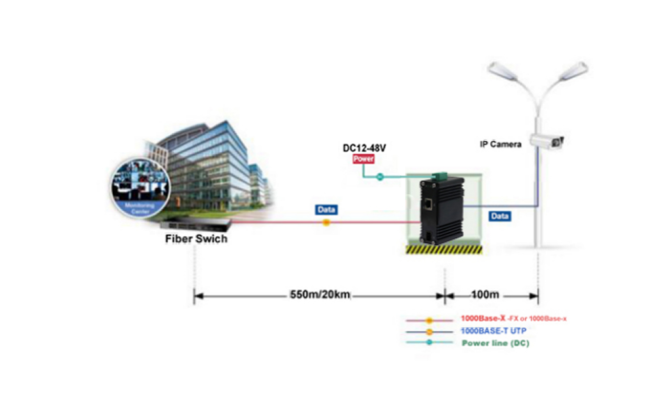

Application
