| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001, CE, FCC, RoHS |
| Model Number | ZP-HIMC3012P-SFP |
| Packaging Details | Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) | Place of Origin | China |
| Input Power | 12~48VDC, 4-pin terminal block | Packaging Details | Carton Packaging |
| Model Number | ZP-HIMC3012P-SFP | Casing | Aluminum Case |
| Supply Ability | 1000 pcs/month | Certification | ISO9001, CE, FCC, RoHS |
| Dimensions (WxDxH) | 95 x 70x 36mm | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal | Mounting Options | DIN-Rail / Wall-mount |
| Price | Negotiation | Delivery Time | 3-12 working days |
| Minimum Order Quantity | 1 pcs | Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Advantages
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Supports Full/Half-duplex, Auto-negotiation
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally
hardened
-40°C
to
75°C
(-40°F
to
167°F)
operating
temperature
Overview

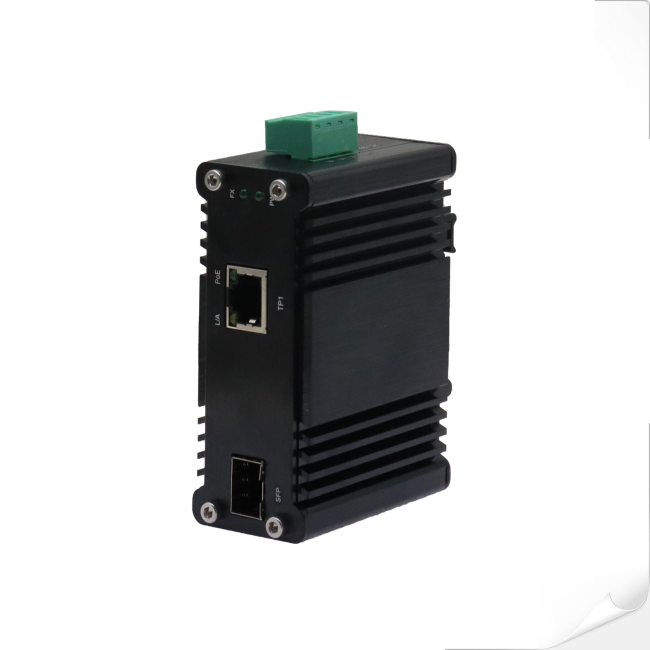

ZP-HIMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. ZP-HIMC3012P-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Ordering Information
|
Model |
Description |
|
ZP-HIMC3012P-SFP |
Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+ |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |

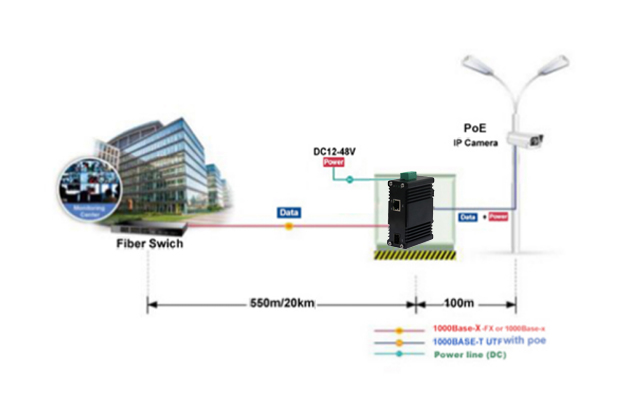

Application
