| Price | Negotiation |
| MOQ | 1 pcs |
| Delivery Time | 3-12 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ROHS,FCC,CE |
| Model Number | LNK-3GSDI-6FV2BV8GP |
| Packaging Details | Fiber Extender Standard Export Package |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability | 1000 pcs/month |
| Operating Temperature | -20℃～+70℃ | Place of Origin | China |
| Keywords | SDI Fiber Optic Extender | Dimensions (LxWxH) | 19” 2U Rack |
| Packaging Details | Fiber Extender Standard Export Package | Model Number | LNK-3GSDI-6FV2BV8GP |
| Supply Ability | 1000 pcs/month | Certification | ROHS,FCC,CE |
| Weight | 11.5KG/pair | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal | Price | Negotiation |
| Delivery Time | 3-12 working days | Minimum Order Quantity | 1 pcs |
| Average time trouble-free | ≥100000 hours |
► 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over Single Fiber
► Compatible with 3G-SDI, HD-SDI, SD-SDI, DVB-AST
► Bandwidth range from 19.4Mb/s to 2.97Gb/s
► SMPTE 424M (2.97Gb/s) clock recovery
► Support all popular standards for digital video transport such as SMPTE 424M, SMPTE 292M, and SMPTE 259M, SMPTE 297M working at 3G-SDI, HD-SDI, SD-SDI, ASI respectively
► Built-in CWDM system, SFP modules for each path
► Support automatic cable equalization based on the data rate detected
► LED status indicators monitor the critical parameters
► 19” 2U Rackmount

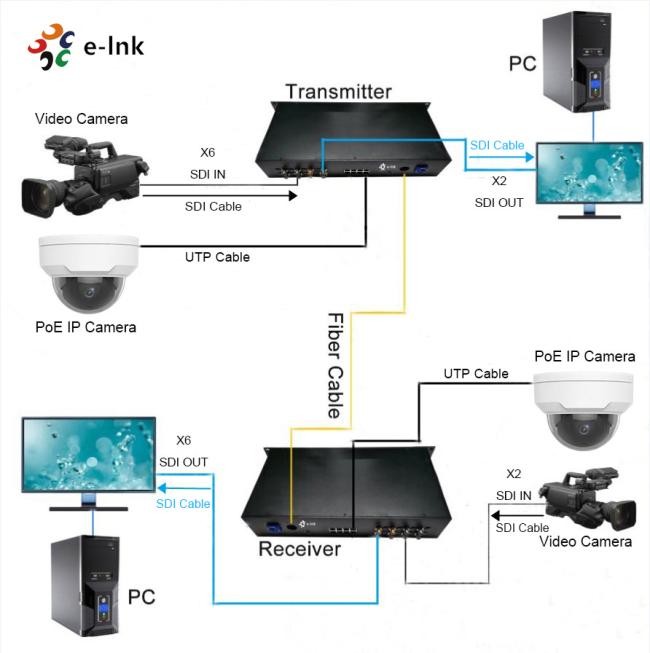

LNK-3GSDI-6FV2BV8GP supports 8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI over single fiber transmission. It offers the digital transmission of fully uncompressed SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps) by single fiber over broadcast quality. The 8 POE ports meet 802.3af / 802.3at standard with 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.
Since optical signals are not affected by electromagnetic noise, LNK-3GSDI-6FV2BV8GP makes your system more reliable and secure. It’s good solution for any HD surveillance system or live broadcasting application. All things considered, LNK-3GSDI-6FV2BV8GP pushes the limits of conventional coax CCTV or broadcast system to a completely new level and allows you to extend transmission distances up to 20km.
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
Video Input |
6 Channel 3G-SDI |
|
Video Output |
2 Channel 3G-SDI |
|
Ethernet |
|
|
Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X |
|
Power over Ethernet |
IEEE 802.3af: PoE 48V DC, max. 15.4 watts, 350mA IEEE 802.3at: PoE 48~56V DC, max. 30 watts, 650mA Power Pin Assignment: 4/5(+), 7/8(-) |
|
Date Rate |
10/100/1000Mpbs |
|
Connector |
8 x RJ45 |
|
Max. Power per Port |
RJ45 Port 1 ~ Port 8 (30W Max per port) |
|
Model |
Description |
|
LNK-3GSDI-6FV2BV8GP |
8Ch Gigabit PoE + 6Ch Forward 3G-SDI + 2Ch Backward 3G-SDI Fiber Optic Extender, Single Mode, Singel Fiber, 20KM, 19” 2U rack mount |
