Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Price Negotiation
MOQ 1 pcs
Delivery Time 3-12 working days
Brand E-link
Place of Origin China
Certification ROHS,FCC,CE
Model Number LNK-D4K-SM-S LNK-D4K-SM-R
Packaging Details Transceiver Standard Export Package
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability 1000 pcs/month

Product Details

Product Specification

Temperature 32° to +112° F. (0° to +50° C) Place of Origin China
Keywords Fiber Transceiver Packaging Details Transceiver Standard Export Package
Model Number LNK-D4K-SM-S LNK-D4K-SM-R Supply Ability 1000 pcs/month
Certification ROHS,FCC,CE Dimensions (WxDxH) 69mm x 42 mm x 18.2 mm
Brand Name E-link Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Operating Humidity 5% to 80% (non-condensing) The warranty 1-year warranty
Price Negotiation Delivery Time 3-12 working days
Minimum Order Quantity 1 pcs Power Consumption LNK-D4K-SM-S: 3 watts LNK-D4K-SM-R: 3.5 watts

Product Description

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Advantages

► Support DVI 1.0 and HDMI v1.4

► Support learns and stores the display EDID info

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► One fiber,One-way

► Bandwidth up to 10.2 Gbps

► Up to 80Km distance by Single-Mode Fiber

► Does not support the HDCP and CEC

► Low RFI / EMI

► Support 3D TV pass-through

► Surface-mountable

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

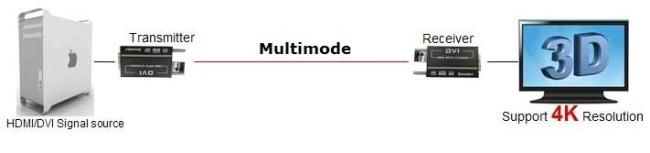

The LNK-D4K-SM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 80km (default 1.4km).

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Technical Indexes

Parameter

Specifications

Compliance

DVI1.0,HDMI v1.4

Bandwith

10.2 Gbps

Supported Resolutions

3840x2160/30P,3840*2160/60P(YUV 420), 4096*2160/60P(YUV 420)

Digital Audio Support

7.1 channel LPCM, 192 kHz, 24-bit audio capability

Connections

DVI Input / DVI Output

1x DVI-D 18+1 Male connector

Optical

1x SFP+ port

Cable

Fiber Cable

9/125μ Single-Mode Fiber:≤80Km(default 1.4km)

DDC Support

EDID Support

An EDID memory built into the Tx module can learn and store the display EDID info.

HDCP Pass-through Support

Does not support the HDCP and CEC

Mechanical

Construction

High-impact Alufer enclosure

Dimensions (L x W x H)

69mm x 42 mm x 18.2 mm

Net Weight

LNK-D4K-SM-S: 100 g              LNK-D4K-SM-R: 100 g

Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID Ordering information

Model

Description

LNK-D4K-SM-S

Mini 4KX2K DVI Fiber Sender  Manual EDID,DC5V1A

LNK-D4K-SM-R

Mini 4KX2K DVI Fiber Receiver  Manual EDID,DC5V1A
