| Price | negotiation |
| MOQ | 1pcs |
| Delivery Time | 7-10 working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | ISO9001, CE, FCC, RoHS |
| Model Number | LNK-1100WSFP |
| Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability | 100000PCS/Month |
| Place of Origin | China | Packaging Details | Industrial PoE Switch Standard Carton Packaging |
| Power supply | Internal: AC90~264V/DC100~380V input | Model Number | LNK-1100WSFP |
| Supply Ability | 100000PCS/Month | Certification | ISO9001, CE, FCC, RoHS |
| Wavelength | 850nm/1310nm/1550nm | Brand Name | E-link |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,PayPal | Power consumption | 5W |
| Price | negotiation | Delivery Time | 7-10 working days |
| Minimum Order Quantity | 1pcs | Operating Temperature: | -10~55ºC |
| Conversion means | Media conversion |
Product Advantages
► Supporting inter-conversion between adaptive 10Base-T/100Base-TX with 100Base-FX
► Use Port 10/100Base-TX (RJ45), 100Base-FX (SFP slot)
► Supporting full-duplex and half-duplex and its auto-sensed
► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation
► Supporting the transmission of extra-long VLAN packets
► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Overview
LNK-1100WSFP is an Ethernet media converter that converts media transmission between UTP Copper cabling and fiber SFP (Small Form-Factor Plug gable) Transceivers. It complies with IEEE802.3, IEEE802.3u and IEEE802.3x standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX, and 1000Base-FX, inter-converting electrical signals of 10Base-T/100Base-TX twisted pairs with optical signals of 100Base-FX. It extends the transmission distance of network from 100m via copper cable to 120 km via fiber optical cables.
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100Mbps Fast Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control |
|
Wavelength |
850nm/1310nm/1550nm |
|
|
multi-mode Dual-fiber: 2KM |
|
single mode Dual-fiber: 20/40/60/80 Km |
|
|
single mode Single fiber: 20/40/60/80 Km |
|
|
Category-5 twisted pairs: 100m |
|
|
Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
|
One optical port: SFP 3.3V |
|
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
POWR (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M) |
|
Power supply |
External Power: AC90~264V/DC100~380V input, 5V1A output |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |

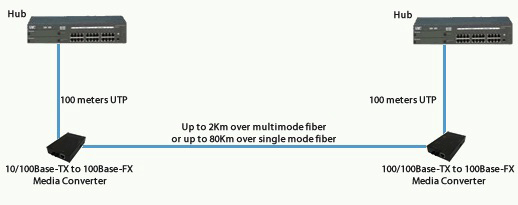

Application
Ordering Information
|
Model |
Description |
|
LNK-1100WSFP |
10/100Base-T to 100Base-F, SFP slot, excl. SFP module, standalone, external power adaptor |
