| Price | Negotiated |
| MOQ | 1pcs |
| Delivery Time | 5-12working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, RoHS |
| Model Number | LNK-DVI-1D1BA |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Place of Origin | China | Dimension (LxWxH) | 120 x 83 x 28 (mm) |
| Packaging Details | standard export package | Transmitter | 1Ch Input + 1Ch Output |
| Receiver | 1Ch Input + 1Ch Output | Power supply | The power adapter: DC 5V |
| Model Number | LNK-DVI-1D1BA | Baud Rate | ≤115200 |
| Supply Ability | 1000pcs/mouth | Certification | CE, FCC, RoHS |
| Brand Name | E-link | Payment Terms | T/T,PayPal |
| Price | Negotiated | Delivery Time | 5-12working days |
| Minimum Order Quantity | 1pcs | Fiber type | Single-mode |
Advantage
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
Overview

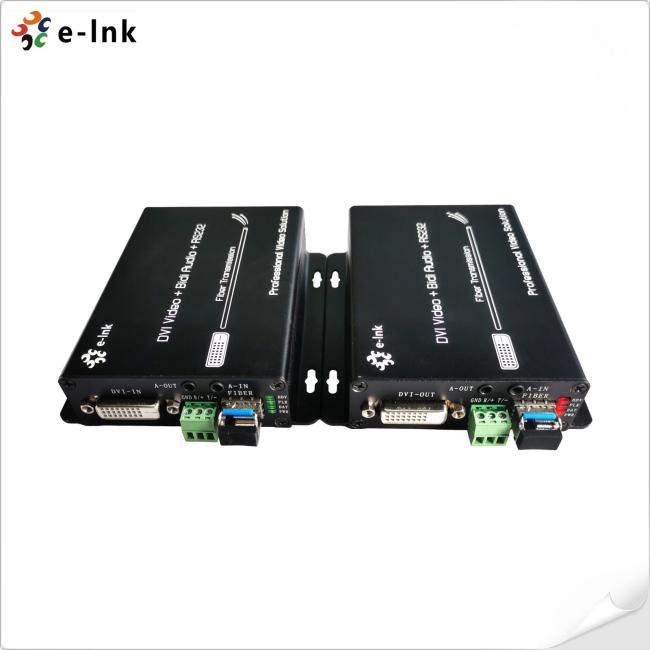

The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one
fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio
transmission function. The extender can use for a wide range of applications requiring long distance
transmission of high resolution with high quality by its good stability and powerful security.
Technical Indexes
|
Parameter |
Description |
|
|
Video
|
Standards |
DVI 1.0 and HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
2.97Gbps |
|
|
Compliant |
1080P@50/59.95/60Hz(
Max
1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, Special support 1600*1200 @60HZ |
|
|
Connector |
Female DVI-D |
|
|
Impedance |
100Ω |
|
|
DVI Cable Range |
||
|
Audio |
Interface |
3.5MM external stereo audio |
|
Transmitter |
1Ch Input + 1Ch Output |
|
|
Receiver |
1Ch Input + 1Ch Output |
|
|
RS232 |
Interface |
3-Pin Terminal Block |
|
Baud Rate |
≤115200 |
|
|
Data Bits |
8 bits |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
|
Interface bandwidth |
3Gbps |
|
|
Transmission distance |
Multi-mode fiber: <500M Single-mode fiber: 0~80km |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
MAX 4W |
|
|
Temperature |
Operating: -20℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
120 x 83 x 28 (mm) |
|

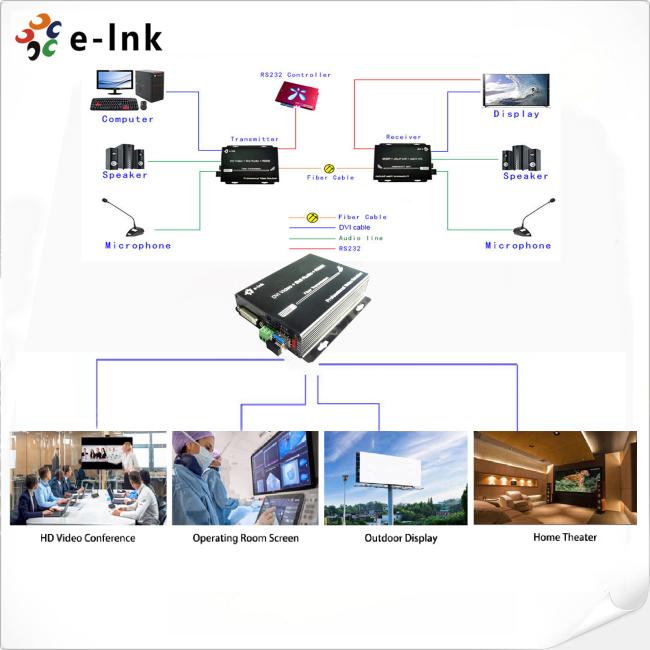

Application
