| Price | Negotiated |
| MOQ | 1pcs |
| Delivery Time | 3-7working days |
| Brand | E-link |
| Place of Origin | China |
| Certification | CE, FCC, RoHS，ISO9001 |
| Model Number | LNK-INS901-19V |
| Packaging Details | standard export package |
| Payment Terms | T/T,PayPal |
| Supply Ability | 1000pcs/mouth |
| Place of Origin | China | Packaging Details | standard export package |
| Model Number | LNK-INS901-19V | Supply Ability | 1000pcs/mouth |
| Weight: | 0.25Kg | Certification | CE, FCC, RoHS，ISO9001 |
| Brand Name | E-link | Payment Terms | T/T,PayPal |
| POE: | PoE Power IN | Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Price | Negotiated | Delivery Time | 3-7working days |
| Power Output: | 36W 19VDC (Terminal Block) | Minimum Order Quantity | 1pcs |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Advantage
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► Support IEEE802.3af/at/bt PoE++
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Support DIN-Rail & Wall-mount installation
► Wide operating temperature -40 ~ 80°C
Overview
LNK-INS901-19V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,
via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This
device saves the high cost of running separate electrical service to edge devices.
Technical Indexes
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (19VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
36W 19VDC (Terminal Block) |
|
Power Consumption: |
41W Max. |
|
LED Indicators: |
|
|
PWR: |
19VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |

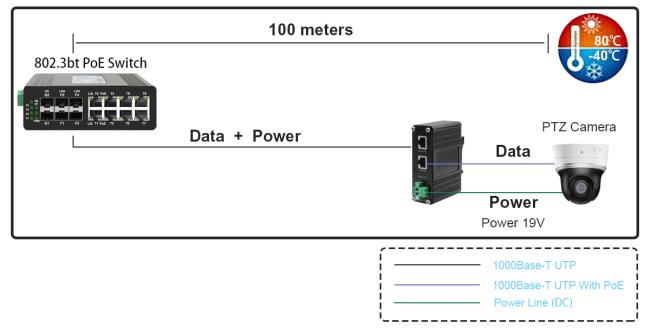

Application
Ordering Information
|
Model |
Description |
|
LNK-INS901-19V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 19VDC, maximum output of 36W at 19VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
