Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC

Price Negotiated
MOQ 1pcs
Delivery Time 3-7working days
Brand E-link
Place of Origin China
Certification CE, FCC, RoHS,ISO9001
Model Number LNK-INS901-5V
Packaging Details standard export package
Payment Terms T/T,PayPal
Supply Ability 1000pcs/mouth

Product Details

Product Specification

Place of Origin China Packaging Details standard export package
Model Number LNK-INS901-5V Supply Ability 1000pcs/mouth
Weight: 0.25Kg Certification CE, FCC, RoHS,ISO9001
Brand Name E-link Payment Terms T/T,PayPal
POE: PoE Power IN Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Price Negotiated Delivery Time 3-7working days
Power Output: 20W 5VDC (Terminal Block) Minimum Order Quantity 1pcs
Operating Temperature: -40°C to 80°C (-40°F to 176°F)

Product Description

Industrial 10/100/1000Mbps 802.3bt PoE++ Splitter Output Voltage 5VDC

Advantage

► One RJ-45 PoE Port (Data & Power In)

► One RJ-45 Port (Data Out)

► Support IEEE802.3af/at/bt PoE++

► Support 10/100/1000Base-T

► Distance up to 100 meters

► Support DIN-Rail & Wall-mount installation

► Wide operating temperature -40 ~ 80°C

Overview

LNK-INS901-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data,

via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This

device saves the high cost of running separate electrical service to edge devices.

The LNK-INS901-5V acts as PD equipment and can be powered by standard PoE IEEE802.3af/at/bt

PSE (Power Source Equipment) switches or work when paired with LNK-INJ-48-95W PoE Injectors.

The data transmission, up to Gigabit speeds, with power output voltages of 5VDC, run simultaneously

up to the Ethernet limit of 100 meters. Simple settings of the LNK-INS901-5V, make it a plug and play

device, requiring no tools or software configuration, and provides ease of use, with flexible installation

and high reliability.

Technical Indexes

Power over Ethernet

PoE Standard:

IEEE 802.3af/at/bt Power over Ethernet

Number of devices that can be powered:

1 (5VDC)

(Vary on device’s power requirement; cannot be over 36 watts.)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Power Output:

20W 5VDC (Terminal Block)

Power Consumption:

25W Max.

LED Indicators:

PWR:

5VDC Power OUT

POE:

PoE Power IN

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

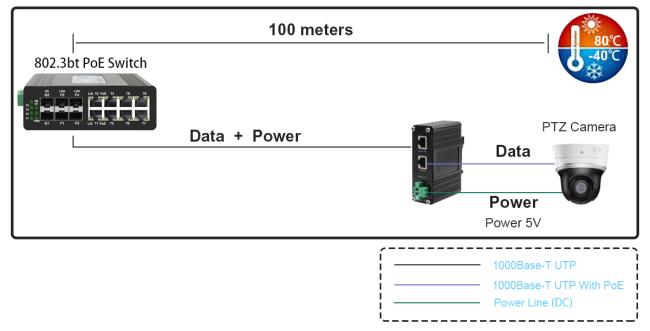

Application

Ordering Information

Model

Description

LNK-INS901-5V

Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
