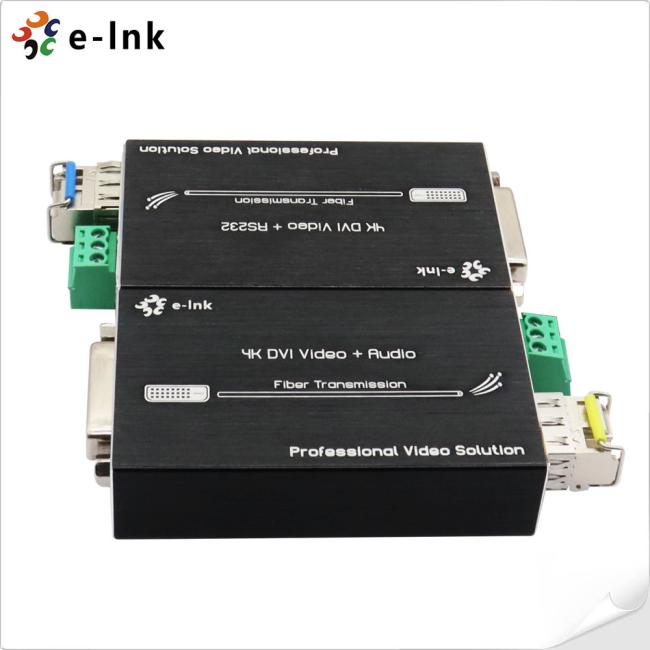

Mini 4K DVI Fiber Optic Extender with RS232

Price Negotiated
MOQ 1pcs
Delivery Time 3-12working days
Brand E-link
Place of Origin China
Certification ISO9001, CE, FCC, RoHS
Model Number LNK-MDA4K-S20
Packaging Details standard export package
Payment Terms T/T,PayPal
Supply Ability 1000pcs/mouth

Product Details

Product Specification

Operating Temperature -10 ~ + 50°C Place of Origin China
Packaging Details standard export package Model Number LNK-MDA4K-S20
Supply Ability 1000pcs/mouth Certification ISO9001, CE, FCC, RoHS
Weight 60g / 0.13 lb Brand Name E-link
Payment Terms T/T,PayPal Price Negotiated
Delivery Time 3-12working days Minimum Order Quantity 1pcs
Bandwidth 10.2Gbps Storage Temperature -20 ~ + 80°C
Safety Approvals CE, FCC, Rohs

Product Description

Mini 4K DVI Fiber Optic Extender with RS232

Advantage

► DVI 1.0 and HDCP1.2 Support

► DDC HPDT Signal Support

► Data rate up to 10.2Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

► Hot-Pluggable, EMI/RFI Resistant

► Operating Temperature: -10~50°C

Overview

The LNK-MDA4K Series 4K DVI Fiber Extender are designed to support transmission of

uncompressed DVI signal and audio signal over optical fiber up to distances of 80km, at a

resolution of maximum 4K*2K@60Hz, YUV 4:2:0.

The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission

over optical fiber. The Receiver converts the serial data back to an DVI signal. The transceivers

are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal

for large-screen display, conferencing systems and home entertainment and so on. The device

has the ability of anti-interference, to ensure the stability of the signal.


Technical Indexes

RS232

3 Pin terminal, Baud rate  38400

Fiber Connector

SFP/LC

Bandwidth

10.2Gbps

Transmission Distance

300m (Over OM3 Fiber)



Up to 80km (Over Single-mode Fiber)

Operating Temperature

-10 ~ + 50°C

Storage Temperature

-20 ~ + 80°C

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

2.87 x 1.73 x 0.69in (73x44x17mm)

Weight

60g / 0.13 lb

Power Supply

5V DC (USB-C)

Power dissipation

<5W

Safety Approvals

CE, FCC, Rohs

Application

Ordering Information

Model

Description

LNK-MDA4K-MM

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S20

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S40

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input

LNK-MDA4K-S80

Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
